Product Overview

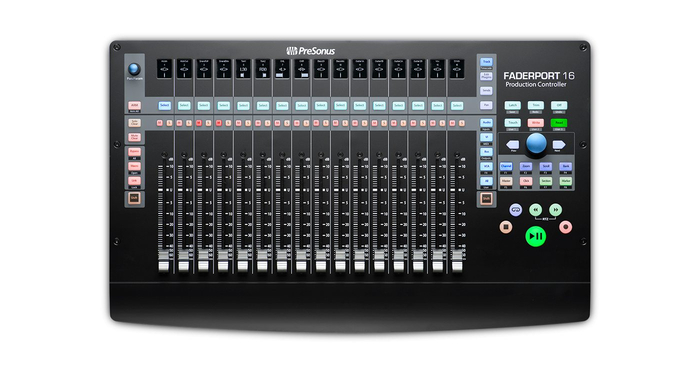

PreSonus' FaderPort 16 is a quality control surface for working with your favorite digital audio workstation (DAW). Even though keyboard and mouse are tried-and-true, reliable DAW-control devices, they can be much more effective when used along with this unit's precise tactile mix and automation control functions. An enhanced solution for anyone who mixes in the box, only the FaderPort 16 offers 16 100mm touch-sensitive, motorized faders plus 89 buttons that cover 104 different functions – all housed in a compact chassis that can easily sit on any desk. You can quickly zoom in on audio files to edit, adjust plug-in parameters, manage aux mixes—and of course, control track levels, all with the touch of a finger. FaderPort 16 lets you enjoy your quickest, most efficient DAW workflow.

PreSonus FaderPort 16 Features:

  • (16) touch-sensitive, 100 mm long-throw, motorized faders
  • (16) Scribble Strip displays
  • Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
  • Drop Marker, Next/Prev Marker, Next / Prev Event
  • General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Track Management, Click On/Off
  • Session Navigator provides quick control over Track Scrolling, Channel Banking, Timeline Scrolling, and much more
  • Channel Controls: Level, Pan, Solo, Mute, Rec Arm
  • Automation Controls: Touch, Latch, Trim, Write, Read, Off
  • Optional Fader functionality: Plug-in edit, bus sends, pan
  • Mac / Windows compatible with native Studio One support and HUI and Mackie Control Universal emulation
  • Footswitch input for hands-free start/stop
  • USB 2.0 connectivity

PreSonus FaderPort 16 Specifications:

  • Input / Output
    • 1 USB 2.0 port
    • 1 Footswitch jack for hands-free stop/start
  • Faders
    • 16 100 mm long-throw, touch-sensitive, motorized faders
    • Dual-servo motorized drive belt system for fast and quiet operation
    • Ultra-smooth feel and lightning fast
    • Heavy-duty construction
    • Resolution: 10-bit, 1,024 steps
  • Buttons and Knobs
    • General Controls: Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins
    • Channel Controls: Pan, Solo, Mute, Select, Rec Arm
    • Automation Controls: Touch, Latch, Trim, Write, Read, Off
    • Optional Fader Functionality: Plug-in Edit, Bus Sends, Pan
    • Window View: Mix, Project, Transport, Undo
    • Transport Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly, depending on the DAW.)
    • Navigation: Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Scrub, Nudge
    • Console Management: Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All
    • Displays: 16 digital scribble strip displays, time code display, channel meters
  • Power
    • External Power Supply: 12 VDC, 1.2A (factory configured, included)
  • Physical
    • Dimensions (H x D x W): 2.11" x 11.9" x 19.6" (53.59 x 302.26 x 497.84mm)
    • Weight: 8 lbs. (3.63 kg)
  • Computer System Requirements
    • Minimum computer-system requirements for the FaderPort™ 16:
      • Mac:
        • Mac® OS X 10.8.5 64-bit or later
        • Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
        • 4 GB RAM (8 GB or more recommended)
      • Windows
        • Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
        • Intel Core 2 Duo (Intel Core i3 or faster recommended)
        • 4 GB RAM (8 GB or more recommended)
      • Mac and Windows Systems
      • USB 2.0 port
      • Internet connection required for driver and bundled software installation
      • 30 GB hard disk space*
      • Monitor with 1366 x 768 resolution (high-dpi monitor recommended)*
    • * Required for Studio One
  • Note: The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer, or contact your Sales Pro.
  • PreSonus FaderPort 16 has been tested and approved to work with the following software:
    • Native Mode: PreSonus® Studio One® 3.5.3
    • HUI Emulation: Supported by Pro Tools 12
    • Mackie Control Emulation: Supported by Logic 10.4, Cubase 9.4, Ableton 9.7+, Sonar, and more
    • Other DAW support coming soon.
  • As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.??
