RDL DB-HPA3 3.5W Audio Power and Headphone Amplifier, Black

OUR PART #: DB-HPA3 MFR #: DB-HPA3

Copied to clipboard

The Radio Design Labs DB-HPA3 is a high efficiency 3.5W power amplifier with one line input... ...Read more

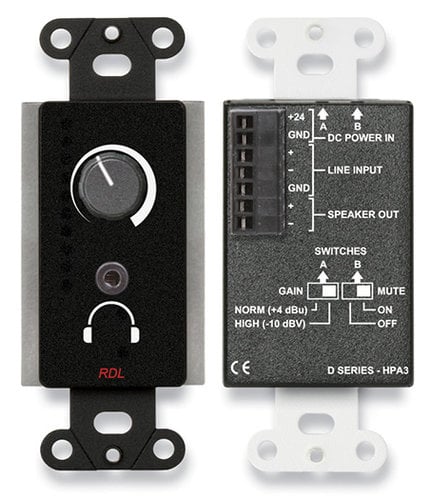

RDL DB-HPA3 3.5W Audio Power And Headphone Amplifier, Black Image 1
RDL DB-HPA3 3.5W Audio Power And Headphone Amplifier, Black
Our Price: $251.93
List Price: $335.91
You save 25%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$7/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Radio Design Labs DB-HPA3 is a high efficiency 3.5W power amplifier with one line input, an amplified output to drive a 4 or 8 Ohm speaker and a separate headphone amplifier. The DB-HPA3 features a balanced line level input that may be connected unbalanced. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. The amplified output levels are controlled by a front-panel volume control.

The amplifier features a Mini-Jack headphone output on the front panel. When a headset is plugged in, the power amplifier may be switched off. Two recessed slide switches located on the top of the rear enclosure are set prior to mounting the module. One switch is provided for setting the input sensitivity. The mute switch determines whether the power amplifier operates when headphones are plugged in.

Amplification for the speaker output is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation.

The DB-HPA3 is designed to be mounted in a wall box. The front panel does not include any illuminated indicators, making the DB-HPA3 ideally suited to installation in dark rooms or areas. Wiring is connected through a rear-panel detachable terminal block.

PS-24AS Power Supply is sold separately.

Radio Design Labs DB-HPA3 Features:

  • Wall-Mounted Amplifier with 2 Outputs
  • Balanced Input on the Rear Panel
  • Speaker Output on the Rear Panel
  • Mini-Jack Headphone Output on the Front Panel
  • Setting to Turn Off Power Amplifier upon Headphone Connection
  • Amplifier Muting Using Solid-State Switching
  • Single Gain Adjustment for the Speaker and Headphone Amplifiers
  • 3.5W RMS Audio Amplifier into 8 Ohms
  • 6.5W RMS Audio Amplifier into 4 Ohms
  • Output Drives 4 or 8 Ohm Speaker
  • High-Efficiency Class D Operation
  • Speaker Output Connection on Detachable Terminal Block
  • Ultra-Compact All Metal Construction
  • Thermal and Short-Circuit Protection

Radio Design Labs DB-HPA3 Specifications:

  • Input: 20 kOhm balanced or unbalanced bridging
  • Input Level: +4 dBu nominal (Balanced, Low input sensitivity); -15 dBV nominal (Unbalanced, High input sensitivity)
  • Minimum Input Level: -18 dBu (Balanced, Max. gain)
  • Maximum Input Level: +22 dBu (Low input sensitivity); +4 dBu (High input sensitivity)
  • Gain Adjustment: Single-turn audio taper (front-panel)
  • Output Power (headphones): 10mW into 100 Ohms (normal); 30mW into 100 Ohms (maximum)
  • Output Power (speaker): 3.5W RMS (Max., into 8 Ohms); 6.5W RMS (Max., into 4 Ohms)
  • Frequency Response: 20 Hz to 50 kHz (Headphones, +/- 1 dB); 20 Hz to 20 kHz (Speaker, +/- 1 dB)
  • THD+N: < 0.1% (Headphones, 20 Hz to 20 kHz, 10 mW into 100 Ohms); < 0.1% (Speaker, 1 kHz, 1 W)
  • Noise: < -85 dB (Headphones, below 10mW into 100 Ohms); < -80 dB (Speaker, below 1W into 8 Ohms)
  • CMRR: > 50 dB (50 Hz to 120 Hz)
  • Power Requirement: 24 Vdc @ 30 mA (Idle); 55 mA (1/8 power; normal voice or music); 225 mA (3.5W into 8 Ohms) (sold separately)
  • Ambient Operating Environment: 0°C to 40°C Maximum; 20°C Recommended
  • Dimensions (HxWxD): 4.13" x 1.7" x 2.05" (10.49 x 4.32 x 5.21 cm)
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625" x 4.625" x 2.125"
  • Shipping Weight: 0.405 lbs
  • WEEE weight: 0.270 lbs

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
