Tripp Lite PDU1230
PDU Basic Single Phase Power Strip

OUR PART #:  PDU1230

The Tripp Lite PDU1230 4.8/5.8kW Single-Phase 200/208/240V Basic PDU is the perfect no-frills unit for networking, telecom, security...
Learn More
Our Price: $214.20
List Price: $293.40
You save 27%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Tripp Lite PDU1230
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

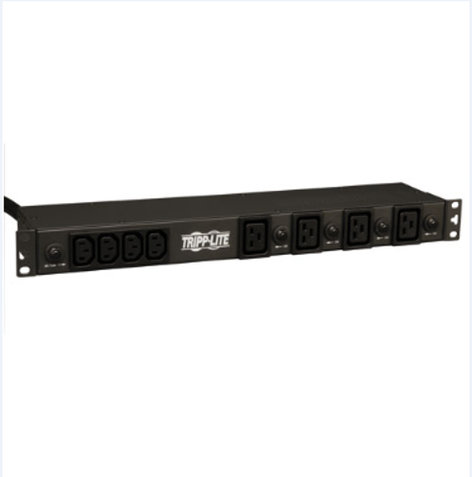

The Tripp Lite PDU1230 4.8/5.8kW Single-Phase 200/208/240V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1230 features 20 total outlets—12 rear C13, four front C13 and four front C19. The NEMA L6-30P input plug with long 15-foot (4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.

The switchless design prevents an accidental shutdown, which could lead to costly downtime. Built-in circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite’s PDUSIDEBRKT accessory (sold separately), you can adapt the PDU1230 for vertical 0U rack-mounting.

Tripp Lite PDU1230 Includes:

  • PDU1230 4.8/5.8kW Single-Phase 200/208/240V Basic PDU
  • Mounting hardware
  • Owner’s manual

Tripp Lite PDU1230 Features:

  • Reliable Single-Phase Power Distribution:
    • Ideal no-frills PDU for networking, telecom, security, audio/video and sound reinforcement applications
    • 20 total outlets—12 rear C13, 4 front C13 & 4 front C19
    • Built-in circuit breakers protect outlets against overloads
    • NEMA L6-30P input plug with 15 ft. cord
    • Rear-panel grounding lug
  • Switchless Design: Prevents accidental shutdowns and costly downtime
  • Versatile Installation Options:
    • Mounts horizontally in 1U of EIA-standard 19 in. 2- and 4-post racks
    • Reversible all-metal housing faces front or rear in rack
    • Ready for toolless 0U vertical installation with optional PDUSIDEBRKT (sold separately)
    • Also mounts on wall, workbench or under a counter

Tripp Lite PDU1230 Specifications:

  • PDU Type: Basic
  • Output:
    • Output Capacity Details: 5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A); 15A max per breakered C19 outlet bank; 12A max per breakered C13 outlet bank
    • Frequency Compatibility: 50 / 60 Hz
    • Output Receptacles: (16) C13; (4) C19
    • Output Nominal Voltage: 200; 208; 240
    • Overload Protection: 4 10A breakers protect 4 C13 outlets each; 4 15A breakers protect 1 C19 outlet each
  • Input:
    • PDU Input Voltage: 200; 208; 240
    • Recommended Electrical Service: 30A 208/240V
    • Maximum Input Amps: 30
    • Maximum Input Amps Details: 30A maximum (agency de-rated to 24A continuous)
    • PDU Plug Type: NEMA L6-30P
    • Input Cord Length: 15 ft
    • Input Phase: Single-Phase
  • User Interface, Alerts & Controls:
    • Switches: No power switch
  • Physical:
    • Minimum Required Rack Depth: 8.7"
    • Shipping Dimensions (HxWxD): 3" x 20.25" x 11.25"
    • Shipping Weight: 8.2 lbs
    • Unit Dimensions (HxWxD): 1.75" x 17.5" x 5.2"
    • Unit Weight: 7.5 lbs
    • Material of Construction: Metal
    • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
    • PDU Form Factor: 1U; Horizontal
  • Environmental:
    • Storage Temperature Range: 5° to 122°F (-15° to 50°C)
    • Relative Humidity: 5 to 95% non-condensing
    • Operating Elevation: 0-10,000 ft (0-3000 m)
  • Special Features:
    • TVSS Grounding: Back panel grounding lug
  • Certifications: Tested to UL60950-1 (USA), CSA-C22.2 (Canada)
  • Product Warranty Period (Worldwide): 5-year limited warranty
