RDL SF-NH1 Network to Stereo Headphone Amplifier, Dante

OUR PART #: SF-NH1

Copied to clipboard

The Radio Design Labs SF-NH1 is a network to stereo headphone amplifier. ...Read more

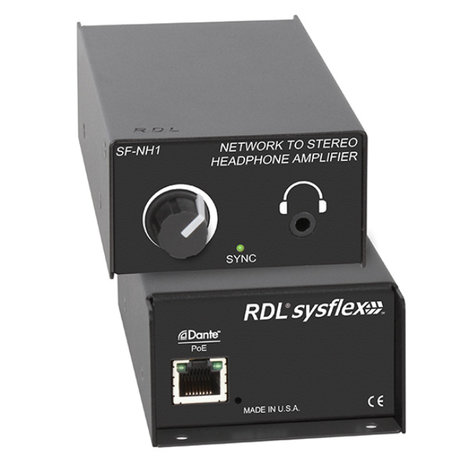

RDL SF-NH1 Network To Stereo Headphone Amplifier, Dante Image 1
RDL SF-NH1 Network To Stereo Headphone Amplifier, Dante
Our Price: $532.19
List Price: $709.58
You save 25%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$15/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Radio Design Labs SF-NH1 is a network to stereo headphone amplifier. It converts two Dante network audio channels to a stereo headphone output with front-panel level adjustment. The output connects through a stereo 3.5 mm Mini-jack. Each channel provides 100 mW into 100 ohms for a network digital audio level of 0 dBFS. Special software is not required to configure the module. The SF-NH1 is a professional grade product for studio quality fidelity and low noise performance.

The SF-NH1 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

The SF-NH1 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems.

Radio Design Labs SF-NH1 Features:

  • Converts Two Dante Network Audio Signals to a Stereo Headphone
  • Output on Professional Quality 3.5 mm stereo MINI Jack
  • Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Front-Panel Output Level Control
  • Special Software Not Required for Module Setup
  • Exceptional Low-Noise and Low-Distortion Performance
  • High Resolution 24 Bit Digital to Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb Audio Performance
  • LED Indicator for Valid Power and Network Sync
  • Operation from PoE Power (Class 0, IEEE 802.3af)
  • Equipped for SysFlex™ Rack Mounting or Surface Mounting

Radio Design Labs SF-NH1 Specifications:

  • Network Connector: RJ45 with Link and Speed indicators
  • Digital Audio Ethernet Protocol: Dante
  • Transmission Rate: 100 Mbps
  • Sample Rates Supported: 44.1 kHz, 48 kHz (default),88.2 kHz, 96 kHz
  • Bit Depth Supported: 24 bits
  • Reference Level: 0 dBFS = 150 mW into 100 Ohms
  • Outputs (2): Mini-jack Stereo (L and R)
  • Output Level (maximum): 0 dBFS = 150 mW into 100 O
  • Output Impedance: < 50 O
  • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
  • THD+N: < 0.05% (20 Hz to 20 kHz, -20 dBFS); 0.015%at 1 kHz (typ)
  • Noise: < -75 dB (below -20 dBFS); < -95 (below 0dBFS)
  • Crosstalk: < -80 dB (1 kHz, -20 dBFS)
  • Headroom above -20 dBFS: 20 dB
  • Indicators (3): Ethernet Link and Speed (2, rearpanel); Sync (front panel)
  • Ambient Operating Environment: 0° C to 50° C
  • Power Requirement: PoE Class 0, IEEE 802.3af
  • Specification Conditions: Gain/Level: ± 1 dB
  • Dimensions: 2.79" (7.09 cm) W; 1.68" (4.27 cm) H; 5.77"(14.66 cm) D
  • Package Type: Cardboard Box
  • Package Dimensions: 7 x 4.375 x 2.25 in.
  • Shipping Weight: 1.09 lbs.
  • WEEE weight: 0.88 lbs.
