RME FIREFACE-UFX-II/ARC Fireface UFX II/ARC USB Bundle Includes: (1) Fireface UFX II and (1) ARC USB

OUR PART #: FIREFACE-UFX-II/ARC

Copied to clipboard

Fireface UFX II RME's flagship USB interface, the Fireface UFX II... ...Read more

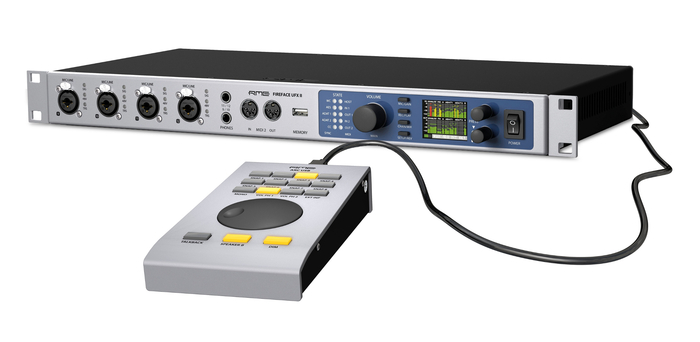

RME FIREFACE-UFX-II/ARC Fireface UFX II/ARC USB Bundle Includes: (1) Fireface UFX II And (1) ARC USB Image 1
RME FIREFACE-UFX-II/ARC Fireface UFX II/ARC USB Bundle Includes: (1) Fireface UFX II And (1) ARC USB Image 2
RME FIREFACE-UFX-II/ARC Fireface UFX II/ARC USB Bundle Includes: (1) Fireface UFX II And (1) ARC USB Image 3
RME FIREFACE-UFX-II/ARC Fireface UFX II/ARC USB Bundle Includes: (1) Fireface UFX II And (1) ARC USB
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Fireface UFX II

RME's flagship USB interface, the Fireface UFX II, is a unique device that is the premier solution for transferring analog and digital audio data directly into a computer from virtually any source. It comes with numerous unique, powerful features, including professional DSP effects, well thought-out configuration dialogs, an industry-leading mixing engine and monitoring setup, and class-leading analog circuitry using the latest digital converters – all putting it in the top range of computer-based audio interfaces.

Its exceptional versatility and compatibility, along with its inclusion of DURec (Direct USB Recording) and RME’s renowned low-latency hardware and driver designs enable the Fireface UFX II to provide a rich feature set that will make it appealing to users in both high-end home studios as well as commercial audio production facilities. It has capacity for 60 audio channels (30 input and 30 output), sampling frequency compatibility upwards to 192 kHz, and the flexibility of USB connectivity; the Fireface UFX II is terrific solution to a wide assortment of recording, mixing, and monitoring uses. Analog, ADAT, AES, SPDIF, and USB 2 are all standard, and equally impressive is its channel count: 12 analog, 16 ADAT, and 2 AES for 30 input channels and 30 output channels. Additionally, its support for USB 2 connectivity, enables integration with RME’s ARC USB remote controller. It incorporates premium AD/DA converters, optimized analog I/O circuits, plus improved SNR and THD values to guarantee pristine, transparent, and crystal clear audio. A PAD-free mic circuit design with +18 dBu maximum input level and 75 dB gain range offers trouble-free operation for even the most demanding recording situations. Further, its low impedance, high-power phones outputs (2 Ohms) with +19 dBu maximum output level deliver ample output power and volume to any set of headphones - whether high or low impedance.

  • TotalMix FX

TotalMix FX also provides a complete effects system within Fireface UFX II which not only adds versatility to the recording chain, but also makes latency-ridden software solutions obsolete.

TotalMix FX can fully take the place of an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb, and Delay for any outputs, including main monitors and headphone mixes. It's also available as an iPad™ app.

ARC USB

A USB 1.1 (UAC1) MIDI remote control that's natively compatible with Windows and Mac OS X, the RME ARC USB has been engineered for direct access to the most frequently used TotalMix FX actions and commands, and is an indispensable tool in the studio's daily use. Its extremely versatile configuration via TotalMix FX will simplify the workflow, and greatly increase the usability of the RME interface in most real world situations. As soon as it's present in the operating system, TotaIMix FX, detects and communicates with it, with no disturbing of other remote controls. So there's also no need to switch the ARC USB on or off within TotalMix FX - it just works. And because it communicates with TotalMix FX (with USB) it provides support for all RME audio interfaces that are detected and supported by TotalMix FX, which goes back to RME interfaces released back in 2001.

It's bus powered, but draws little current. Also, it uses USB 1.1 as bus standard, which these days is non-critical due to its lower speed and frequency demands

RME Fireface UFX II/ARC USB Bundle Features:

  • Improved DURec (Direct USB Recording)
  • ARC USB Remote Control - Plug’n Play Plus
  • TotalMix FX:
    • 4096 channel mixer with 46-bit internal resolution
    • Latency-free submixes and perfect ASIO Direct Monitoring
    • FX: 3-band EQ, Low Cut, Reverb, Echo, Compressor, Expander, Auto Level
  • Available TotalMix FX for iPad™ App
  • All settings can be changed in real-time
  • Buffer sizes/latencies from 32 up to 8192 samples selectable
  • (8) channels 96 kHz/24 bit Record/Playback via ADAT optical (S/MUX)
  • (4) channels 192 kHz/24 bit Record/Playback via ADAT optical (S/MUX4)
  • Clock modes slave and master
  • Automatic and intelligent master/slave clock control
  • Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
  • SteadyClock: Jitter-immune, super-stable digital clock
  • DDS technology for free setting of the sample rate
  • SyncAlign guarantees sample aligned and never swapping channels
  • SyncCheck tests and reports the synchronization status of input signals
  • 2 x MIDI I/O, 32 channels high-speed Low-Jitter MIDI
  • 2 x Hi-power low impedance headphone output
  • DIGICheck DSP: Level meter in hardware, peak- and RMS calculation
  • Connectivity:
    • 30 Input / 30 Output channels
    • 12 x Analog I/O
    • 4 x Mic/Instrument Preamp, digitally controlled
    • 1 x AES/EBU I/O
    • 2 x ADAT I/O (or 1 x ADAT I/O plus 1 x SPDIF I/O optical)
    • 1 x Word Clock I/O
    • 2 x MIDI I/O
    • 1 x USB 2.0
    • Advanced Remote Control (ARC) USB (included with this special package)
  • ARC USB
    • Solid metal case in a user-friendly desktop design
    • Non-critical USB 1.1 connection allows to use long cables
    • Full control over many TotalMix functions, like Volume, DIM, Speaker B etc.
    • Special functionality for stand-alone mode operation of UFX+

RME Fireface UFX II/ARC USB Bundle Specifications:

  • For Specifications and much more information, please click on the User Manuals for both units located under the "DOCUMENTATION" tab above.

NOTE:

Full Compass Exclusive SPECIAL PROMOTION: For a limited time, purchase the RME Fireface UFX II and get an RME ARC USB controller for FREE! For more information on this and other products, please contact your Sales Pro.
