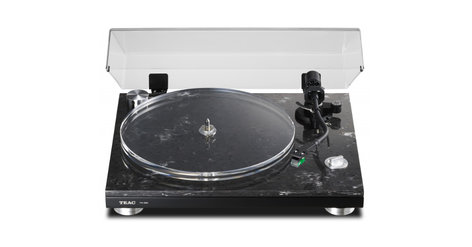

Teac TN-550
2-Speed Turntable with Cartridge, Belt Driven

OUR PART #:  TN-550

An upper-class turntable, the TEAC TN-550 is designed with the concept of combining high style along with excellence in performance as an analog turntable.
Learn More
Our Price: $899.99
List Price: $999.99
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Teac TN-550
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

An upper-class turntable, the TEAC TN-550 is designed with the concept of combining high style along with excellence in performance as an analog turntable. It delivers the highest-standard of analog sound virtues for audiophiles who have loved it for decades.

Quality Design
The cabinet is a combination of artificial marble along with high-density MDF, in a 2-layer "sandwich" type structure (Dual-material Chassis). This, structure, in addition to assuring a high feedback margin, realizes transparent sound by abating the inherent resonant frequencies of the different materials by blending them. The power train uses a belt-drive with an automatic rotation adjustment mechanism (Platter Rotation Speed Servo System, or "PRS3"), engineered by TEAC. An optical sensor detects changes in platter speed rotation and immediately adjusts the motor speed based upon this feedback. This allows a high level of precision in rotation speed that can compete with heavyweight-class belt-drive and direct-drive systems, while allowing a sleek, stylish cabinet design.

TEAC TN-550 Includes:

  • TN-550 Turntable
  • AC Adapter (GPE053A-120050-Z)
  • EP Adapter
  • Counter Weight
  • Head-shell
  • Cartridge (except. Canada model)
  • Acrylic Platter
  • Dust Cover
  • Hinges x 2
  • Pulley Cover
  • Flat Belt
  • Washers x 4
  • Hex Wrench
  • RCA Audio Cable with GND terminals
  • Owner's Manual (including Warranty card)

TEAC TN-550 Features:

  • 45 and 33-1/3 rpm 2-speed Cogging-free Belt Drive Turntable
  • “PRS3” Platter Rotation Sensing Servo System for Precise Rotate Speed
  • Sleek Resonance-free Dual Material Compound by Marble Stone and High-density MDF
  • Crystal Clear Acrylic Platter with Perimeter Belt Drive
  • High-precision Spindle with Anti-static Carbon-coated base
  • Height Adjustable Anti-skating Tone-arm with PC-Triple C Wiring
  • Universal Head-shell with PC-Triple C Wiring
  • Honeycomb-shaped Bottom Case
  • MM-type Cartridge by audio-technica (except Canada model)
  • Height Adjustable Feet
  • Machined-Aluminum EP Adapter
  • Optional Reversible Static-free "WASHI" Turntable Sheet (SKU: TA-TS30UN-BW, sold separately)

TEAC TN-550 Specifications:

Turntable section

  • Type: Belt Drive
  • Motor: DC Motor
  • Speed: 33-1/3 rpm, 45 rpm
  • Servo System: PRS3 (Platter Rotation Speed Servo System)
  • Rotation Detection Precision: less than ±0.05% (at 33-1/3 rpm)
  • Wow and Flutter: 0.1%
  • Signal-to-Noise Ratio: more than 67 dB (A-weighted, 20 kHz LPF)
  • Platter Material: Acrylic
  • Platter Size: Full-size (300mm diameter, 16mm thickness)
  • Platter Weight: approx. 3.1 lbs. (1.4 kg)

Tone-arm section

  • Type: Static Balanced S-shape Tone-arm (Height Adjustable)
  • Effective Arm Lenght: 223mm
  • Over-hang: 18mm
  • Tracking Error: less than 3°
  • Stylus Pressure Range: 0g to 5g
  • Supported Cartridge Weight: 15g to 23g (including Headshell)
  • Height Adjust Range: approx. 6mm
  • Anti-skating Adjustent: Supported

Cartridge section

  • Type: MM-type (equivalent to audio-technica AT100E)
  • Output Voltage: 4.5mV (1kHz, 5cm/sec.)
  • Stylus Pressure: 1.4g ±0.4g
  • Cartridge Weight: 6.5g ±0.2g
  • Headshell Weight: 10 g (including Screw, Nuts and Wires)

Analog Output

  • Connector: RCA Pin x 1pair (gold-plated)
  • Output Voltage: 4.5mV (±3dB)
  • Operation Power: AC 100 to 240V 50/60Hz
  • Power Consumption: 1.5 W (0.5 W at Standby)
  • Overall Dimensions (W x H x D, incl. protrusions): 16.9" x 5.2" x 14.0 430 x 131.5 x 355mm)
  • Weight: approx. 19.9 lbs. (9.0 kg)

Notes:
* RoHS complied.
* Design and specification may change without notice.
