Teac TN-400S
3-Speed Belt Driven Turntable with S-Shaped Tonearm

OUR PART #:  TN-400S

The TN-400S turntable from TEAC blends high style along with high fidelity – the "vinyl" word in modern turntables.
Learn More
TEAC TN-400S - Front View, Matte Bordeaux

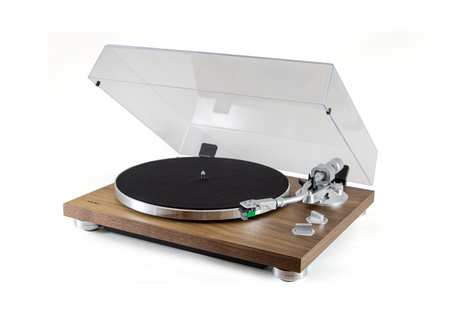

TEAC TN-400S - Back View, Natural Walnut
TEAC TN-400S - Back View, Gloss Black

Click a thumbnail to see more images. (8 total)

Selected Model Price: $399.99
List Price: $449.99
Save up to 11%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Teac TN-400S
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The TN-400S turntable from TEAC blends high style along with high fidelity – the "vinyl" word in modern turntables. With its 3-speed operation and an S-shaped tone arm, it merges cutting-edge performance with a sleek and stylish design, and comes in your choice of 4 color finishes: Gloss Black, Gloss Cherry, Natural Walnut, and Matte Bordeaux. It's forged from decades of TEAC audiophile analog and digital technology innovaltion, and combines an all-new motor assembly with phono and line level outputs as well as integrated digital conversion, all to offer a modern version of old-school cool. You gotta give one a spin.

TEAC TN-400S Includes:

  • TN-400S Turntable
  • Felt Mat
  • EP Adapter
  • Counter Weight
  • Head-shell (audio-technica AT100E equivalent installed)
  • Turntable(Platter)
  • Dust Cover
  • Dust Cover Hinges
  • RCA Audio Cable with GND wiring
  • AC Adapter (GPE053A-V120050-Z)
  • Owner’s Manual (including Warranty Card)

TEAC TN-400S Features:

  • Three-Speed Turntable plays all the hits – both old and new
  • Aluminum Die-cast Platter and upgraded motor assembly provide years of service and stability
  • Newly designed, low-friction spindle reduces platter drag, resulting in enhanced speed consistency and tonal accuracy
  • Integrated USB Port for Digital Output allows PC Recording for easy archiving
  • Anti-skating Mechanism stays in the groove so you can stay in the groove
  • Static-balanced S-shape Tone-arm with Universal Head-shell for improved tracking
  • Built-in Phono EQ Amplifier and Switchable Phono/Line Outputs ensures easy setup with any Amp or Receiver
  • High-density MDF Chassis dampens vibrations and delivers rock solid performance
  • Detachable Dust Cover enables you to customize the experience to fit your own personal style
  • Upgraded Audio-Technica AT100E equivalent MM equivalent cartridge for accurate and detailed sound reproduction
  • Available in Gloss Black, Gloss Cherry, Natural Walnut, and Matte Bordeaux finishes (please specify when ordering)

TEAC TN-400S Specifications:

Turntable section

  • Drive System: Belt Drive
  • Motor: DC Motor
  • Speed: 33-1/3 RPM, 45 RPM, 78 RPM
  • Rotation Speed Variation: ±2%
  • Wow and Flutter: 0.2%
  • Signal-to-Noise Ratio: 67dB or higher (A-weighted, 20 kHz LPF)
  • 60dB or higher (unweighted, 20 kHz LPF)
  • Platter: Aluminum Die-cast
  • Diameter of Platter: 12" (30cm)

Tonearm section

  • Type: Static Balanced, S-shaped
  • Effective Arm Length: 8.8" (223mm)
  • Stylus Pressure Range: 0g to 5g
  • Supported Cartridge Weight:
    • 3.5g to 6.7g
    • 13.5 to 16.5g (including head shell)
  • Anti-skating Adjustment: Supported

Cartridge section

  • Type: MM type (audio-technica AT100E factory installed)
  • Stylus Shape: Joint-oval 0.3 x 0.7 mil
  • Stylus Construction: Bonded Round Shank
  • Mount: Half-inch
  • Frequency Response: 20 Hz to 20 kHz
  • Channel Separation:  27 dB at 1 kHz
  • Output Balance: 1.5 dB
  • Needle Pressure: 1.0g to 1.8g (approximate value 1.4g)
  • Vertical Tracking Angle: 23°
  • Supported Load Impedance: 47 kOhms
  • Output Voltage: 4.5mV (1 kHz, 5cm/sec.)
  • Cartridge Weight: 6.5g
  • Replacement Stylus: audio-technica AT100E

Phono Equalizer Amplifier

  • Type of Amplifier: MM type (On/Thru switchable)

Analog Output

  • Connector: RCA Pin-jack (Gold-plated)
  • Output Voltage: Phono/Line switchable
  • Phono Output: 4.5mV (±3dB)
  • Line Output: 230mV (–13dBV)

USB Output section

  • Connector: USB B type
  • Output Signal: PCM 48 kHz/16-bit
  • Supported OS: Windows 7, 8, 8.1, 10
  • OS X:
    • Lion (10.7)
    • Mountain Lion (10.8)
    • Mavericks (10.9)
    • Yosemite (10.10)
    • El Capitan (10.11)
  • macOS: Sierra (10.12)

Power

  • AC 100 to 240V, 50/60Hz
  • Consumption: 1.5W (less than 0.5W at Standby)

Physical

  • Overall Dimensions (W x H x D):  16.5" x 4.6" x 14.0" (420 x 117 x 356mm)
  • Weight: Approx. 10.8 lbs. (4.9 kg)

Notes:
- RoHS complied.
- Specification and design may subject to change.
