Product Overview

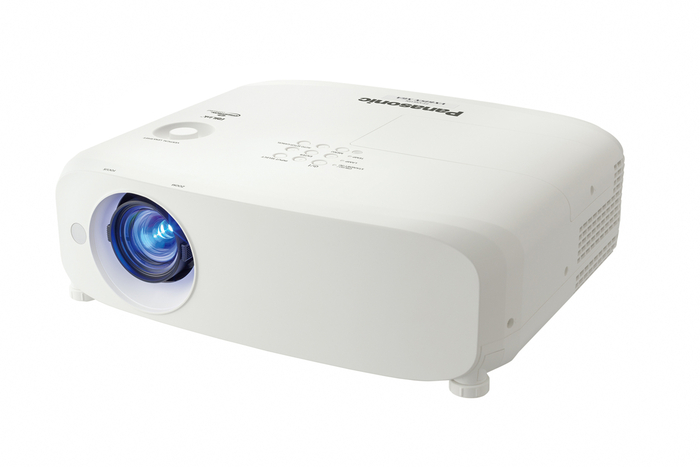

The Panasonic PT-VX615NU LCD Projector works brilliantly as a high-brightness portable for large boardrooms, meeting spaces, and classrooms, or as an easily managed ceiling installation solution thanks to single-cable DIGITAL LINK. However it's used, there's full wireless media casting support so everybody can serve punchy, pin-sharp pictures in well-lit spaces.

Includes

  • Wireless remote control unit x 1
  • Power cord with power cord holder x 1
  • Software CD-ROM x 1 (Operating instructions, Multi Monitoring and Control Software, Logo Transfer Software, Wireless Manager ME software)
  • Batteries (AAA type x 2)
  • RGB cable x 1
  • Lens cap x 1

Features

  • XGA to WUXGA for high 16,000:1 contrast ratio and up to 5500 lumens of brightness
  • Simple wireless connection with Plug and Share via USB
  • Screen sharing capabilities from your mobile with Miracast
  • Flexible installation with single cable connectivity from DIGITAL LINK
  • Ultra-Quiet mode designed to keep noise levels down to 29 dB, eliminating distractions from the cooling fan during during meetings and presentations

Specifications

  • Power supply: AC 120 V, 50/60 Hz
  • Power consumption: 385 W
  • Standby power consumption:
    • Standby Mode (ECO): 0.3 W
    • Standby Mode (Normal): 14 W
  • LCD Panel:
    • Panel size: 0.63" (1.60 cm) (4:3 aspect ratio)
    • Display method: Transparent LCD panel (× 3, R/G/B)
    • Pixels: 786,432 (1024 × 768) × 3, total of 2,359,296 pixels
  • Lens: 1.6x manual zoom (throw ratio: 1.17-1.90:1), manual focus F 1.60-1.90, f 15.31-24.64 mm
  • Lamp: 280 W UHM lamp × 1
  • Screen size (diagonal): 30"-300"
  • Brightness: 5,500 lm (input signal: PC, lamp power: Normal, picture mode: Dynamic, Daylight View: OFF, Auto Power Save: OFF)
  • Contrast: 16,000:1 (all white/all black) (input signal: PC, lamp power: Normal, picture mode: Dynamic, Iris: On, Daylight View: OFF, Auto Power Save: OFF)
  • Resolution: 1024 × 768 pixels (Input signals that exceed this resolution will be converted to 1024 × 768 pixels)
  • Supported RGB signal: XGA–WUXGA
  • Supported video signal: NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i
  • Keystone correction range:
    • Vertical: maximum ±35° (auto/manual, input: XGA)
    • Horizontal: maximum ±35° (manual, input: XGA)
    • Up to a total of ±55 °during simultaneous horizontal and vertical correction
  • Installation: Front ceiling / Front desk / Rear ceiling / Rear desk
  • Built-in speaker: 1 1/16" (4.0 cm) round shape × 1, output power: 10 W (monaural)
  • Operation noise: 37 dB (lamp power: Normal), 35 dB (lamp power: ECO1), 29 dB (lamp power: ECO2)
  • Cabinet materials: Molded plastic
  • Dimensions (WxHxD): 15 5/16" × 4 29/32" x 13 1/16"
  • Weight: Approximately 10.8 lbs

Note

Additional specifications can be found in the Documentation tab.
