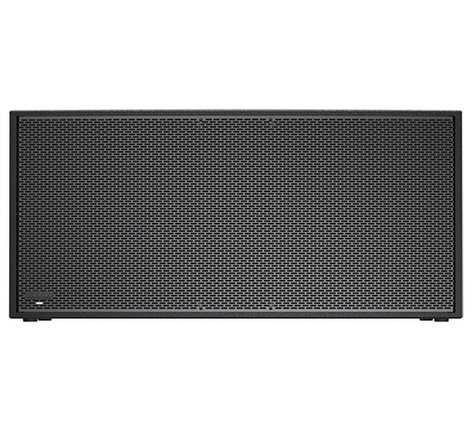

EAW-Eastern Acoustic Wrks RSX218
Touring Subwoofer, 2 x 18"

OUR PART #:  RSX218

The EAW RSX218 is a dual 18" self-powered subwoofer.
Learn More
Our Price: $2,031.58
List Price: $2,917.00
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks RSX218
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EAW RSX218 is a dual 18" self-powered subwoofer. Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. The powerful RSX218 dual 18” subwoofer is ideal for production applications, offering push-button cardioid operation for added sonic control. The RSX218 features onboard electronics (1400W maximum) and ultra-wide ports that drastically reduce low-frequency turbulence. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

EAW RSX218 Features:

  • Very high output in compact form factor and with low AC power draw
  • Push-button cardioid operation provides directivity to lower excess low-frequency energy on stage
  • Extremely approachable EAW mosaic™ iOS app delivers system prediction, control and monitoring from any location in the venue
  • Proven EAW acoustical design and DSP including Focusing™ and DynO™ provides a pristine impulse response at all output levels
  • Integrated Dante™ networking (with loop-thru) on all models includingAnalog redundancy capability

EAW RSX218 Specifications:

  • Configuration
    • Subsystem:
      • Transducer: 2 x 18 in cone, 3 in voice coil
      • Loading: Vented
    • Operating Mode:
      • Amplifier Channels: Single-amp LF
      • Signal Processing: DSP w/ Dyn0
  • Performance
    • Operating Range: 27 Hz to 125 Hz
    • Nominal Beamwidth:
      • Horizontal 360°
      • Vertical 360°
    • Input
      • Type: Electronically balanced
      • Max Input Level: 21dBu
      • Impedance: 20 kOhm (balanced)
      • Input Wiring: XLRF, Pin 1 chassis, pin 2 +, pin 3 – Separate loop-thru XLRM (for analog signal only)
      • Input Selection: Analog, Dante
    • Amplifiers & Processing (LF)
      • Type: Modified Class D
      • Maximum Output: 1400W
      • Driver Protection: Integral DSP limiting
    • Controls/Communication
      • Connections: 2x Neutrik® etherCON™, RJ-45
      • Protocols: Ethernet/Dante
      • Software: EAWmosaic™ (available on the App Store)
      • Indicators: LCD Screen on amplifier panel for UI, Logo LED (User-definable behavior)
      • User Controls: Push-button Rotary Encoder
