AcousticDesign™ Series Column Surface-Mount Loudspeaker


This product is currently available for pre-order ONLY . Placing a pre-order ensures that you will receive your unit as soon as it's available.
Learn More
Selected Model Price: $499.00
Write the first review.
Select a Model: (shipping times are approximate)

Related Products

This product is currently available for pre-order ONLY. Placing a pre-order ensures that you will receive your unit as soon as it's available. We are currently expecting the product to begin shipping Fall 2017. This projected availability may vary depending upon manufacturer stock. Please contact your Sales Pro for more information.

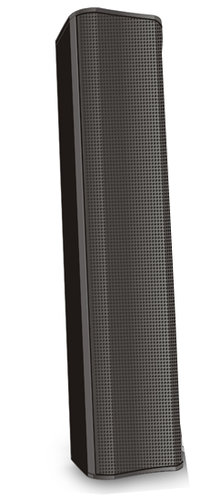

The QSC AD-S802T is a column surface-mount loudspeaker with a 8-driver column surface-mount loudspeaker. This premium full range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.

QSC AD-S802T Features:

  • Deliberately unobtrusive industrial design
  • Paintable enclosure and grill
  • Complete EASE, CLF, CAD & BIM information
  • Rugged aluminum construction
  • UV Inhibitors in all white models
  • IP-54 rating for dust and splash resistance
  • Powder-coated grills and weather-treated cones
  • Close to wall pan/tilt bracket included
  • Low saturation 70/100V transformers
  • 8 ohm low impedance bypass
  • Screw-down Euro block connector with loop-through
  • Sealable input weather cup – keeps moisture away from wiring

QSC AD-S802T Specifications:

  • Effective frequency range: 200 Hz – 17K Hz
  • Power Capacity: 120 W
  • System Sensitivity: 89 dB
  • Coverage Angle Horizontal  (-6dB): 150° (800 Hz - 5K Hz)
  • Coverage Angle Vertical (-6 dB): 15° (3.5 Hz - 17KHz)
  • Output (Peak SPL @ 1M): 116
  • Driver Information: (x8) 2.5" weather resistant papercone woofer
  • Rated Impedance: 8 ohm
  • Input Connectors: 4-pin Euro terminal
  • Enclosure: Aluminum
  • Ingress Protection: IP-54
