The Light Source UPM-2 Plasma Universal Mount Set-2

The Light Source's Plasma Universal Mount Set supports a plasma or LCD screen on pipes as well as 12" or 20.5" truss. Two Mega-Couplers are provided to fasten per mount. The two mounting bars are bolted directly to the plasma screen with two 8mm or 10mm bolts per bar (bolts sold separately). The support bolt holes are drilled for the 50, 100, 150, 200, 300, 400 and 660 mm VESA standards.

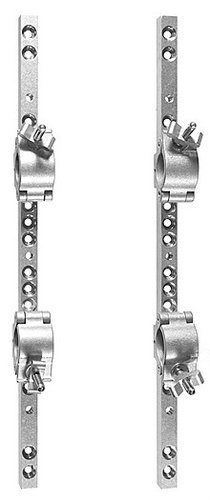

The set includes two mounting bars and four Mega-Couplers, two for each bar.

The Light Source Plasma Universal Mount Set-2 Specifications:

• Safe Vertical Working Load: 250 lbs
• Dimensions: 1" x 1" x 28"
• Weight: 6.4 lbs
