High End Systems USB DMX Super Widget
Four Universes of DMX 512 Output

OUR PART #:  SUPER-WIDGET

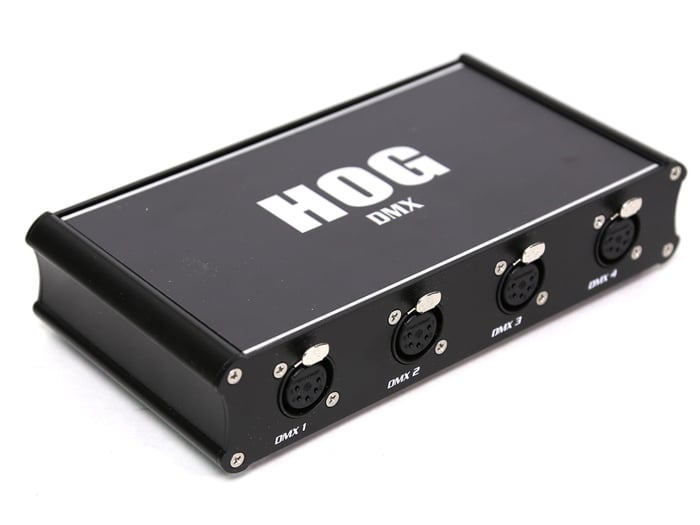

The USB DMX Super Widget from High End Systems comes from their selection of USB Widgets and is enclosed  in a sleek, black metal casing.
Learn More
Our Price: $1,352.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

High End Systems USB DMX Super Widget
Qty:
In Stock

Similar Products

The USB DMX Super Widget from High End Systems comes from their selection of USB Widgets and is enclosed  in a sleek, black metal casing. The USB DMX Super Widget provides four universes of DMX 512 output from Hog 4 OS consoles and any Hog 4 PC. Up to two DMX Super Widgets may be connected at once via a USB Hub to provide 8 full universes of DMX 512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only one DMX Super Widget can be connected to the Road Hog 4.

This configuration provides an excellent solution for backup and playback only applications. By adding Nano Hog 4, Playback Wing 4 and Master Wing 4, users can configure powerful control solutions that precisely suit their needs and budgets. For Hog 4 PC users, attaching the DMX Super Widget also unlocks 4 universes of DMX over Art-Net and E1.3.1 (sACN).

High End Systems DMX Super Widget Features:

  • USB connection to Hog 4, Full Boar 4, Road Hog 4 and Hog 4 PC computers
  • 4 x XLR 5-pin DMX 512 outputs
  • Up to two units can be connected to a console or DMX Processor (except to Road Hog 4, where only one can be connected)

High End Systems DMX Super Widget Specifications:

  • 2048 channels total output capacity
  • Status LEDs for power and data in/out
  • 4 x XLR 5pol DMX, 1 x USB-B
  • Precision machined Aluminium panel with wear-resistant and printed legends
  • Rugged, sleek black metal package that can be stacked
  • Kensington Security Slot
  • External power supply included
  • Compatible with Hog 4, Full Boar 4, Road Hog 4, Hog 4 PC,
  • Wholehog 3, Road Hog Full Boar, Hog iPC and Hog 3 PC
