High End Systems USB DMX Widget
USB DMX Single Universe Widget

OUR PART #:  DMX-WIDGET

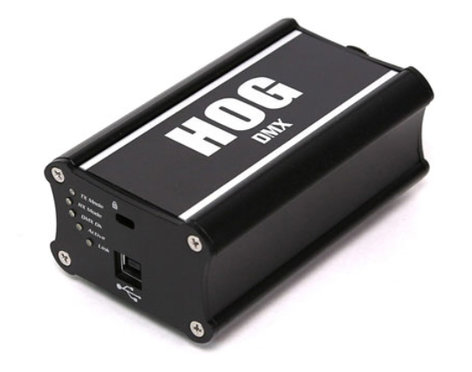

The High End Systems USB DMX Widget is packaged in a sleek, black metal package.
Learn More
Our Price: $690.00
Write the first review.
High End Systems USB DMX Widget
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The High End Systems USB DMX Widget is packaged in a sleek, black metal package. The Wholehog DMX Widget provides a single universe of DMX 512 output from any Hog 4 OS consoles and any Hog 4 PC. Up to eight DMX Widgets may be connected at once via a USB Hub to provide 8 full universes of DMX 512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only four DMX Widgets can be connected to the Road Hog 4.

This configuration provides an excellent solution for backup and playback only applications. By adding Nano Hog 4, Playback Wing 4 and Master Wing 4, users can configure powerful control solutions that precisely suit their needs and budgets.

For Hog 4 PC users, attaching 1 DMX Widget also unlocks 1 universe of DMX over Art-Net and E1.3.1 (sACN). Users can connect up to eight total DMX Widgets to Hog 4 PC to unlock a total of eight Art-Net and sACN universes.

High End Systems USB DMX Widget Features:

  • USB connection to Hog 4, Full Boar 4, Road Hog 4 and Hog 4 PC computers
  • Single DMX 512 output on 5-pin XLR connector
  • 512 channels total output capacity
  • Up to eight units can be connected via a USB Hub (except to Road Hog 4, where four can be connected)
  • Rugged, sleek metal package that can be stacked
  • Status LEDs for power and data in/out
  • Kensington Security Slot
  • One USB input connector
  • Fully powered via USB port

High End Systems USB DMX Widget Specifications:

  • Storage Temperature 20-60°C / 0-140°F
  • Compliance: ETL, CETL, CE
  • Width: 2.5 in (65mm)
  • Depth: 4.2 in (106mm)
  • Height: 1.8 in (45mm)
  • Weight: 0.75 lbs (0.34kg)
