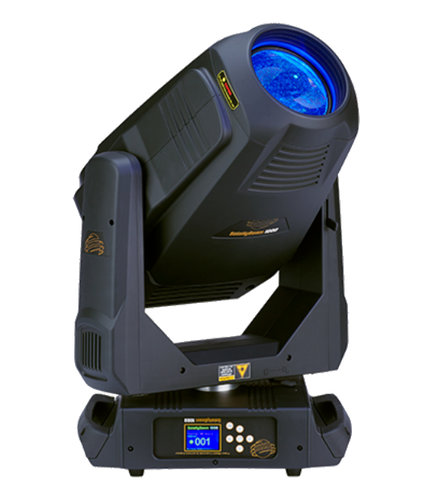

High End Systems SolaHyBeam 1000
440 Watt LED Moving Hybrid Fixture with Case

OUR PART #:  SOLAHYBEAM-1000

A companion hybrid fixture to the High End System's SolaSpot 1000, the SolaHyBeam 1000 is a lightweight and compact LED moving head fixture...
Learn More

Call for price! Not available online.
List Price: $7,694.50

Similar Products

A companion hybrid fixture to the High End System's SolaSpot 1000, the SolaHyBeam 1000 is a lightweight and compact LED moving head fixture, yet it offers punchy output and unprecedented effects for small to mid-sized venues. Utilizing a 440-watt Bright White LED source, the fixture features a unique wash/beam optical design, fixed color wheel plus CMY/CTO system and a rotating animation gobo wheel.

High End Systems SolaHyBeam 1000 Features:

  • Wash / Beam Optical Design
  • LED Animation Macros
  • Modular Construction
  • Fast Service Design
  • Electronic Cooling System Control
  • LED Type - 440W Bright White Engine
  • LED Hours - 70% Luminous output, 50,000 hrs.
  • Active Thermal Control
  • Fan Modes: Standard / Continuous / Studio
  • RDM Compatible
  • Control Options: DMX 512 / RDM / Art-Net
  • 32 DMX Channels
  • 540° Pan
  • 265° Tilt
  • 2.27 seconds Max Speed Pan (360°)
  • 1.25 seconds Max Speed Tilt (180°)
  • Full Color LCD Display w/ battery mode
  • 5-pin DMX / RDM Controller
  • Ethernet Connector
  • PowerCON True 1 connector
  • Pan and Tilt locks
  • Road Case included

High End Systems SolaHyBeam 1000 Specifications:

  • Optical:
    • Fixed Color Wheel: 7 + Open
    • Rotating Gobo Wheel: 6 + Open
  • Phtometrics:
    • Lumens: 20,000*
    • CRI: >70
    • Color Temperature: 6500K

NOTE: Lumens as measured by Everfine 2.0 integrating sphere and PMS-80 spectrophotometer.

  • Electrical:
    • Input Power Rating:
      • AC 100V - 240V 50/60 Hz
      • 6.2 - 2.4 Amps
    • Auto Switching Power Supply
    • Db(A): 38
  • Dimensions:
    • Fixture Weight: 61 lbs (28Kg)
    • Packing Gross / Shipping Weight: 148 lbs (67.1Kg)
    • Sipping Dimensions (L x W x H): 23 x 24 x 37 in (584 x 610 x 940mm)
    • Min Distance to Flammable Objects: 1.64 ft (0.5m)
    • Min Distance to Lighted Objects: 4.9 ft (1.5m)
    • Operating Temperatures:32 - 113° F (0 - 45° C)
    • Storage Temperature: 0 - 140° F (-20 - -60° C)
    • Compliance Approvals: CD, ETL
