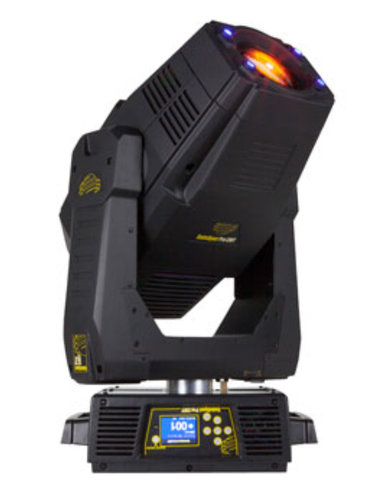

High End Systems SolaSpot Pro CMY
320W LED Moving Head Spot Fixture with Roadcase

OUR PART #:  SOLASPOT-CMY

A 13,000+ lumen output from a 320W LED source makes the SolaSpot Pro CMY one of the brightest and the most efficient LED spots available.
Learn More

Call for price! Not available online.
List Price: $6,550.00

Similar Products

A 13,000+ lumen output from a 320W LED source makes the SolaSpot Pro CMY one of the brightest and the most efficient LED spots available. Lighting designers don’t need to make tradeoffs between the quality of white and color, or be concerned about the quantity of output. The SolaSpot Pro CMY LED, provides an LED fixture that can replace existing 700W and some 800W arc fixtures. All this coupled with the long life of the LED source.

This fixture can be truss mounted using 1/4 camlock C-clamp mounting brackets or it can also stand upright on a stable surface. Alongside yet another industry first when it comes to LED and CMY, are features like Linear CTO, 2 gobo wheels, a fixed color wheel, incredibly quick zoom and focus, a prism, iris and frost. Including High End System’s patented lens defogger, SolaSpot Pro CMY is an innovative step towards the future.

High End Systems SolaSpot Pro CMY Features:

  • LED light engine with 13,000 lumen bright white output with even beam field
  • No lamp to change, LED source lasts over 30,000 hours
  • CMY Color Mixing with additional fixed color and gobo wheels
  • Linear CTO
  • Patented Lens Defogger
  • Lowest Price in Class
  • Small Footprint

High End Systems SolaSpot Pro CMY Specifications:

  • Operation:
    • Pan Range: 540° (optional 630°)
    • Tilt Range: 265°
    • 35 DMX channels includes 16-bit control of Movement, Focus, Zoom and Dim functions
    • DMX/RDM connectors: 5-pin XLR, 3-pin XLR
    • Onboard menu system for configuration and preset programming
    • 12° – 40° Zoom
    • LED strobe
    • Fast mechanical iris
    • Smooth electronic dimming
    • Stand alone operation with Master/Slave function, sound activated via built in microphone.
    • Adjustable Movement Speed
    • Scan position memory to auto reposition unit after unexpected movement
    • Display can be changed 180° reverse to fit for different installation position.
    • Strobe/shutter: High speed shutter, 0-13 Hz or random strobe
    • Rechargeable Back up Battery for Display, no need external power supply, enable users to enter display menu for address setting or access other functions setting.
    • Software-upload by optional accessory via DMX line
  • Effects:
    • Fixed Color wheel with seven positions plus open
    • Fixed Gobo Wheel with seven patterns plus open
    • Rotating Gobo Wheel with six rotating lithopatterns
    • Prism and prism rotating , with 16 prism macros
    • Iris from 5%~100% with pulse iris effect.
    • Stepless frost, 0%~100% linear change frost
    • Indigo Highlighter LED output
  • Construction:
    • High resolution micro-stepping motor control for smooth motion at all speeds
    • Fast, smooth, and quiet yoke movement
    • Full color LCD graphic display and touch-keyboard
    • 3-pin and 5-pin XLR/RDM connectors
    • Roadcase
    • ETL/UL and CE compliance
  • Mechanical:
    • Fixture Dimensions: 15.3in x 12.6in x 28.1 in (389mm x 319.8mm x 715.5mm)
    • Fixture Weight: 65 lbs (29.5 kg)
    • Shipping Weight: 145.5 lbs (66 kg)
  • Electrical:
    • Fixture Rated Power: 480 W
    • Power consumption: AC 100V–240V; 50Hz/60Hz; 4.8-2.0A

NOTES:

Warning: Class I equipment - For continued protection against electric shock connect this equipment to an earthed (grounded) power source only. This equipment for connection to branch circuit having a maximum overload protection of 20 A.

  • Environmental:
    • Maximum ambient temperature: 113° F (45° C)
    • Maximum exterior surface temperature: 230° F (110° C)
    • Minimum distance to lighted object: 1.6 ft (.5 m)
    • Minimum distance to flammable objects: 1.6 ft (.5 m)

NOTES:

  • Caution: Do not mount on a flammable surface. Not forresidential use. Use in dry locations only.
  • Caution: Class 2 LED product. LED Radiation. Do notstare into beam.
  • Caution: The fixture should be positioned so that prolonged staring intothe fixture at a distance closer than 3 meters is not expected.
