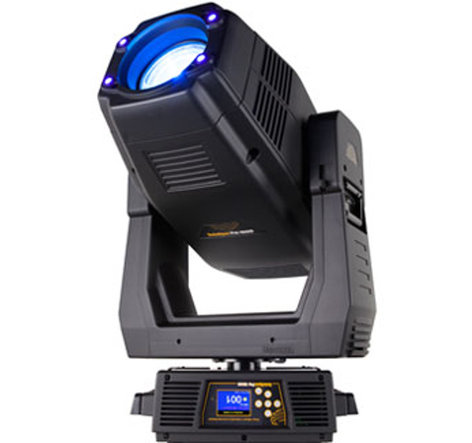

High End Systems SolaFrame 1500
400 Watt LED Moving Spot Fixture with Case


Framing shutters have long been a popular feature in conventional lighting...
Learn More

Call for price! Not available online.
List Price: $9,995.00

Related Products

Framing shutters have long been a popular feature in conventional lighting, but now are a potent design tool for automated lighting requested by Lighting Designers across numerous markets. The SolaFrame Series from High End Systems offers this versatile feature in a full range of output options. Included in the mix is the SolaFrame 1500 (Item Number: H7010014) the go-to workhorse automated spot fixture for top lighting designers. The SolaFrame1500 combines high output from a 400W Bright White LED source along with framing shutters, animation effects plus all the bells and whistles required by the modern lighting designer. The first LED fixture brilliant enough to replace high-powered arc source moving lights, the SolaFrame 1500 is a star performer in all professional production environments.

High End Systems SolaFrame 1500 Features:

  • Modular Construction
  • Fast Service Design
  • Electronic Cooling System Control
  • Active Thermal Control
  • Fan Modes: Standard / Continuous / Studio
  • RDM Compatible
  • Can be truss mounted or stand upright on a stable surface

High End Systems SolaFrame 1500 Specifications:

  • Item Number: H7010014
  • LED Type: 400W Bright white engine
  • LED Hours: 70% Luminous output, 50,000 hrs
  • Lumens: 20K
  • Color Temp: 6500 Kelvin
  • CRI: >75
  • Zoom: 6° - 46°
  • Color Mixing: CMY CTO
  • Color Wheel: 6
  • Rotating Gobo: 6
  • Fixed Gobo: 7
  • Framing: Yes
  • Iris: Yes
  • Animation: Linear
  • Frost: Light
  • Prism: 3-Facet
  • Weight: 92 lbs
  • LED Wattage: 400
  • DMX Channels mode: 48 channels
  • Stand alone operation with Master/Slave function,sound activated via built in microphone.
  • Pan and tilt movement: 8 and 16 bit resolution forsmooth and precise motion:
    • Movement:
      • Pan: 540°
      • Tilt: 265°
      • Speed of pan/tilt movement adjustable
      • Scan position memory, auto reposition after unexpected movement
  • Colors:
    • Basic color wheel with 6 dichroic mirrors, plus white, two direction rainbow effect.
    • CMY & CTO
    • Variable Color Mixing for Infinite Color Possibilities
    • Rotation gobo: 6 interchangeable, rotating gobos plus open
    • Gobo wheel with 7 interchangeable gobos plus open, gobo shaking in different speed
    • Dimmer intensity from 0%~100%
    • Prism and prism rotating, with 16 prism macros
    • Iris from 5%~100% with pulse iris effect
    • Stepless frost, 0%~100% linear change frost
  • Display:
    • Control board with full color LCD graphic display and touch-keyboard
    • Can be changed 180° reverse to fit for different installation position.
  • Strobe/shutter:
    • High speed shutter, 0-13 Hz or random strobe
  • Other:
    • Rechargeable Back up Battery for Display, no need external power supply, enable users to enter display menu for address setting or access other functions setting
    • Software- upload by optional accessory via DMX line
