DB Technologies ES602
800 Watt Mono Sound System

OUR PART #:  ES602

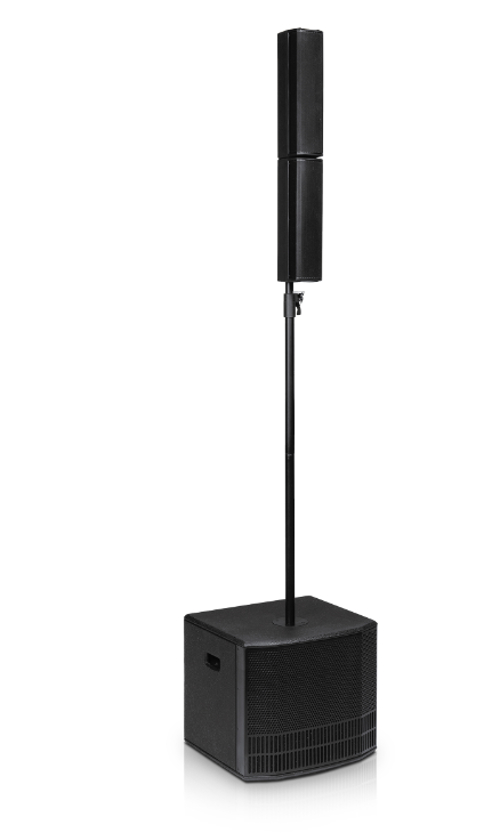

The dbTechnologies ES602 is a portable system composed by one passive top and one 10” subwoofer. The sub hosts a 800 W peak power amp module with auto-range PSU.
Learn More
Our Price: $699.00
List Price: $999.00
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DB Technologies ES602
Qty:
In Stock

Similar Products

The dbTechnologies ES602 is a portable system composed by one passive top and one 10” subwoofer. The sub hosts a 800 W peak power amp module with auto-range PSU. A powerful DSP manages both the coverage and the functions of the system, making the ES602 a real gem in terms of sound performance and versatility.

The ES Series is the result of experience gained from dBTechnologies in the acoustic design of vertical array systems like DVA T Series and MINI. The components of the top are aligned mechanically (Logarithmic Curved Column Array) so as to increase the coverage of the vertical beam. Furthermore, there is a special “double-ringed phase plug” that increases the horizontal coverage and gives a rich and crystal clear sound to the system.

The satellites are connected top-on-top and are placed on the subwoofer through the supplied D25mm pole. The system is used in mono mode so all inputs are routed to both outputs in mono.

The bass-reflex subwoofer houses a generous 12” woofer and the amplifier module. The enclosure, sturdy and stylish, is made of birch plywood coated with a durable scratch-resistant black coat, which makes it truly road-ready. Two recessed handles (one per side) help easy transport. Finally, the metal grid with foam, in addition to protecting the woofer and give a very elegant and professional look, helps the reflex effect. The lower part of the grid, placed right on the reflex ports, have in fact holes with a larger diameter to enhance air flow.

The highly efficient amplifier provides high power with limited weight and dimension.

The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover of the acoustic components, the frequency response, the limiter, and the phase alignment.

The speakers of the top are designed to provide both an extended vertical coverage and a wide horizontal coverage.

dbTechnologies ES602 Specifications:

  • Speaker Type: Bi-biamped system, with one full range top and one subwoofer
  • Acoustical data:
    • Frequency Response [-10dB]: 44 – 15.000 Hz
    • Max SPL: 118 dB
    • MF - HF: 4x 3"
    • Type MF - HF: Neodymium
    • LF: 10"
    • Directivity: 95° x 65°
  • Amplifier:
    • Amp Technology: Digipro® G3
    • Amp Class: Class-D
    • Power Amp Peak: 800 W
  • Processor:
    • Controller: DSP 24 Bit/48 kHz
    • System Presets: Factory presets
    • Limiter: Dual Active, Peak, RMS, Thermal
    • Crossover Frequency LF-HF: 210 Hz
  • Input:
    • Mic/Instrument Channel: 1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input
    • Link Output: 1x XLR balanced output
  • Mechanics:
    • Housing (Subwoofer): 15mm Black Painted Plywood
    • Housing (Tops): Polypropylene PP
    • Handles: 2x lateral side (Subwoofer)
    • Dimensions (WxHxD):
      • Top: 3.74" x 13.98" x 5.39" (95 x 360 x 137 mm)
      • Subwoofer: 13.8" x 15.7" x 16.9" (300 x 400 x 430 mm)
    • Weight:
      • Top: 4.19lbs. (1.9Kg)
      • Subwoofer: 31.48lbs. (14.2Kg)
