DB Technologies ES 1203
2400 Watt Stereo Sound System

OUR PART #:  ES1203

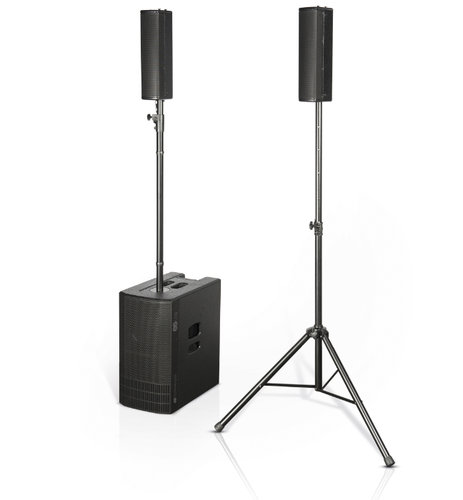

The dB Technologies ES 1203 is a column PA system.
Learn More
Our Price: $2,799.00
List Price: $3,499.00
You save 20%!
Write the first review.
DB Technologies ES 1203
In Stock

The dB Technologies ES 1203 is a column PA system. This PA system is a complete stereo sound system with striking SPLs (the system features a 2400W last-generation power amp) and an impressively coherent throw pattern.

ES1203 is a 3-amped stereo sound system composed by 2 passive wooden tops and one active wooden subwoofer equipped with 2X12” woofers. The sub hosts last-generation Digipro G4® 2400W Peak amp. A powerful DSP (controlled by an intuitive user interface placed on the top of the sub) manages all function of the 5-channel on-board digital mixer as well as the system configuration.

The ES1203 bundle comes with sub cover, a bag for tops, a telescopic 35mm pole, 2 7m speakon cables and power cable.

dbTechnologies ES 1203 Features:

  • Bag for Sub and Tops included
  • Tri-Amped active stereo PA system
  • 2400 W Power
  • Latest generation DIGIPRO G4 amp technology
  • User-friendly DSP interface
  • 3 configuration modes (Mono, stereo or double column)
  • On-Board 5 channel mixer
  • Bluetooth® audio receiver
  • 3 input channel modes (MIC/INSTR/LINE)
  • Custimizable balanced output channel (MIX/MONITOR/AUX)
  • Ultra wide coverage

dbTechnologies ES 1203 Specifications:

  • Speaker Type: 3-amped Stereo System with two full-range tops and one subwoofer
  • Acoustical data:
    • Frequency Response [-10dB]: 35 - 20.000 Hz
    • Max SPL: 132 dB
    • MF - HF: 8x4", v.c. 1"
    • Type MF - HF: Neodymium
    • LF: 2X12"
    • Directivity: 97x60°
  • Amplifier:
    • Amp Technology: Digipro® G4
    • Amp Class: Class-D
    • Power Amp Peak: 2400 W
    • Controls:
      • 1x OLED Display with rotary encoder w/button
      • 1x Audio signal monitoring LED
      • 1x USB port (service data)
    • Power Supply: Full range with PFC
    • Power connection: VDE Socket
    • Cooling: Convection
  • Processor:
    • Controller: DSP 56 Bit
    • Converter AD/DA: 24 Bit/48 Hz
    • Limiter: Peak, RMS, Thermal
    • Crossover Frequency LF-MF: 160 Hz
    • Digital Steering: Up/Down/Far
  • Input:
    • Input Channels:
      • 1x Mic/Instrument Combo (XLR/Jack)
      • 2x Mic/Line Combo (XLR/Jack)
      • 1x Bluetooth built-in receiver
    • Mix Output: 1x XLR balanced output
  • Mechanics:
    • Housing:
      • Subwoofer: Plywood with full metal grille
      • Tops: Plywood with full metal grille
    • Pole Mount: 36 mm (M20 Thread)
    • Handles (subwoofer):
      • 1x top
      • 1x lateral side
    • Dimensions (WxHxD):
      • Top: 4.33" x 18.11" x 6.30" (110 x 460 x 160 mm)
      • Subwoofer: 14.17" x 26.77" x 21.46" (360 x 680 x 545 mm)
    • Weight:
      • Top: 7.27 lbs. (3.3 Kg)
      • Subwoofer: 64.59 lbs. (29.3 Kg)
