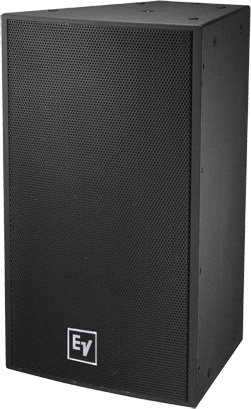

Electro-Voice EVF-1152D/66
15" 2-Way Full-Range Loudspeaker

OUR PART #:  EVF-1152D/66

The Electro-Voice EVF-1152D/66 is a compact 15" 2-way full-range loudspeaker.
Learn More
Selected Model Price: $1,760.92
List Price: $2,586.00
Save up to 32%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EVF-1152D/66
Select a Model: (shipping times are approximate)
Qty:
Similar Products

The Electro-Voice EVF-1152D/66 is a compact 15" 2-way full-range loudspeaker. The EVF-1152D/66 features a 60° x 60° rotatable waveguide, design for mid-far field medium long throw raw spread coverage pattern. is a premium 15" 2-way full-range loudspeaker.

Electro-Voice EVF-1152D/66 Features:

  • Compact and lightweight
  • Low distortion, high efficiency
  • Ideal for fixed installations
  • DVX3151A woofer with fully symmetric drive
  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 40º to 90º
  • 100 dB sensitivity, 134 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • 4th-order crossover with HF protection
  • Trapezoidal 13-ply birch enclosure in three finishes:EVCoat, PI, and fiberglass (FG)
  • M10 threaded suspension points (22)
  • Transformer kit available for distributed systems

Electro-Voice EVF-1152D/66 Specifications:

  • Coverage (Nominal -6 dB) H: 60°
  • Coverage (Nominal -6 dB) V: 60°
  • Crossover Frequency: 1300Hz
  • Depth: 18.37" (466.6mm)
  • Enclosure Material: 13-ply weather-resistant birchwith EVCoat
  • Frequency Response (-10 dB): 40 - 21000Hz
  • Frequency Response (-3 dB): 70 - 18000Hz
  • Grill: 16 GA powder-coated galvanneal with screenbehind
  • Height: 30.26" (768.6mm)
  • HF Transducer: DH7N 3-inch (76mm) diaphragmcompression driver
  • Input Connections: Phoenix/Euroblock style screwterminals; PI and FG versions include dual-gland-nut input-panel cover
  • LF Nominal Impedance: 8O
  • LF Transducer: DVX3151A 15-inch (381 mm) woofer
  • Max. SPL/1m (calc): 134dB
  • Minimum Impedance: 6O
  • Nominal Impedance (Passive): 8O
  • Passive Power Handling: 2400W peak
  • Recommended High-Pass Frequency: 45Hz
  • Sensitivity 1 W/1 m: 100dB
  • Shipping Weight: 86.2lbs (39.1kg)
  • Speaker Type: Full-Range, Two-Way
  • Suspension: (22) M10 threaded suspension points
  • System Power Handling (Continuous/Program/Peak):600/1200/2400 Watts
  • Weatherized: No
  • Weight Net: 75.84lbs (34.4kg)
  • Width: 18.5" (469.8mm)
