Ace Backstage Co. Half Stage Pocket
with Carpet Lid, Antique Coppervein Finish

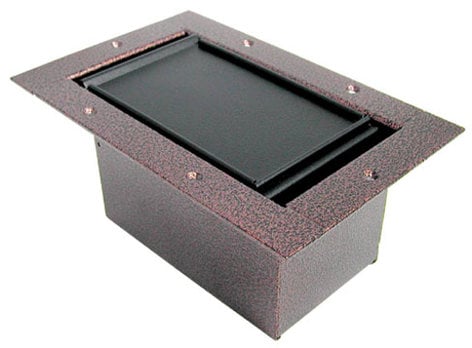

ACE Backstage's Half Stage Pocket is a general use vertical slant panel stage pocket.
Learn More
Our Price: $147.32
List Price: $185.14
You save 20%!
Write the first review.
Ace Backstage Co. Half Stage Pocket
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

ACE Backstage's Half Stage Pocket is a general use vertical slant panel stage pocket. Made of heavy duty steel, this floor box is well-suited for concealing audio, communications, control, data, electric AC power, switches, video, and voice connections below the floor surface for easy access, and to prevent connector damage.

The Half Stage Pocket features a medium capacity interchangeable panel system for easy custom connector/panel configurations. Utilizing ACE's "Connectrix" System allows mounting of up to six "Connectrix", Neutrik®, Switchcraft®, or custom connectors. All ACE Half Stage Pockets are made from welded steel, with a 1/8" thick CRS steel lid, mounting flange and a 16 gauge (0.062") thick pocket body. The Half Stage Pocket resists bending under even the most severe stage loads.

Removable spring loaded hinge pins permit easy exchange of lids for locking lids, standard lids, and other custom application lids. A generous cable way slot of 3/8" x 4" allows easy cable exit from the Stage Pocket, even for large gauge cables. A cableway slot closure channel closes the slot when not in use. Quick access from the top or back of the Half Stage Pocket to connector panels makes for easy installation.

A scratch/wear resistant oven cured powder coat finish is electro-staticly applied inside and outside the entire Stage Pocket. The Half Stage Pocket's solid rubber Lid Stops cradle the lid to prevent lid rattle.

ACE Backstage Half Stage Pocket Includes:

  • (1) Stage Pocket body with trim bezel mounting flange
  • (1) Lid
  • (2) Hinge pins
  • (2) Springs
  • (8) #8 self tapping sheet metal/wood screws
  • (1) Slot closure

ACE Backstage Half Stage Pocket Specifications

  • Part Number: 123CLCV
  • Body Size (WxHxD): 4.375" x 4.5" x 7.156"
  • Lid & Mounting Flange Size (WxHxD): 6.875" x 0.937" x 10.5"
  • Connector Capacity: Up to 6 "Connectrix" (Neutrik or Switchcraft)
  • Cutout Dimensions (WxH): 4.75" x 8.5"
  • Pocket Material: CRS Steel and/or Solid Half Hard Brass
