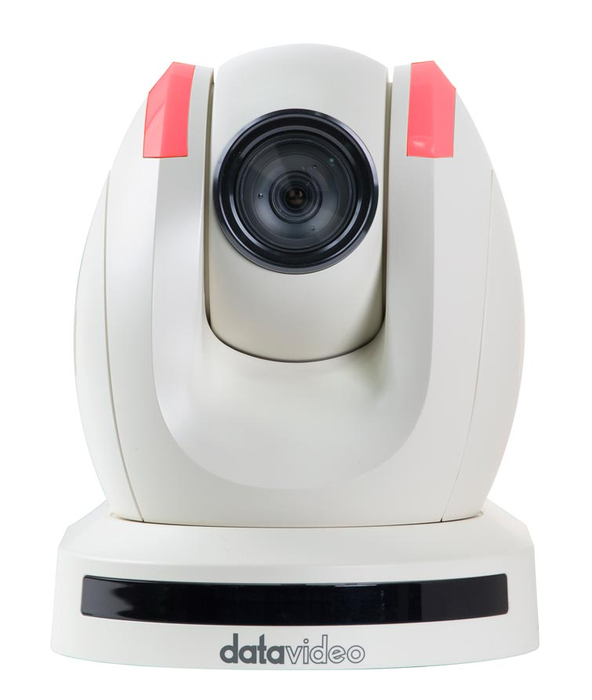

Datavideo Corporation PTC-150TW
HD/SD PTZ Video Camera with HDBaseT Technology in White

OUR PART #:  PTC-150TW

Supporting the Sony VISCA protocol for PTZ control using RS-422 interface over the unit's RJ-45 port while providing an easy and cost effective installation...
Learn More
Our Price: $3,499.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation PTC-150TW
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Supporting the Sony VISCA protocol for PTZ control using RS-422 interface over the unit's RJ-45 port while providing an easy and cost effective installation, Datavideo's PTC-150TW HD/SD Video Camera is a PTZ camera that can be mounted on a wall, ceiling, floor, or a tabletop. This model supports HDBaseT technology allowing you to transmit video source, control signal and power up to 328 feet (100 meters) away just by using one CAT5e/6 Cable.

The camera captures HD video at 1920 x 1080 resolution and features wide dynamic range with backlight compensation. The PTC-150TW features a motorized 30x optical zoom capability and its image mirror and image rotation functions allow you to electronically adjust the image and deliver a correctly orientated image. In addition to the basic camera functions, this PTZ video camera also has a receiver box that allows the user to control the camera at a remote location with just one Ethernet cable.

The included HBT-11 HDBaseT Receiver Box is equipped with an HDBaseT Port, which connects PTC-150T/PTC-Camera HDBaseT Port by using a CAT5e/6 Cable. This allows users to transmit video source, control single and power with a single CAT5e/6 cable that can be transmit up to 100m (1080 60p/50p) or 70m (4K 30p/25p).

The PTC-150TW comes with 50 programmable presets including pan, tilt, and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote, or an available PTZ controller. For multi camera shoots, the built in tally light can identify the active camera. The PTC-150TW features a built in IR cut filter in the image path for low light shooting and then returns for daytime shooting. Also, the PTC-150TW supports real time position report on a per frame basis; this is helpful in a virtual studio application.

Datavideo PTC-150TW Includes:

  • PTC-150TW Unit
  • HBT-11 Receiver Box
  • IR Remote Controller
  • Thank You Card
  • Ceiling Mount Bracket A
  • Ceiling Mount Bracket B
  • Ceiling Mount Bracket Screw M3x4mm
  • DC 12V Power Adaptor
  • DC 48V Power Adaptor
  • Power Cord
  • Tightrope
  • 5-pin RS-422/232 to Ethernet Cable (For Receiver Box)

Datavideo PTC-150TW Features:

  • 30x zoom allows cameras to be positioned near the action or far away while still obtaining good clarity and close-ups of the subject.
  • HDBaseT Technology (HBT-11 Receiver Included) means only needing a single Ethernet cable to carry video, power, control, and tally
  • Digital noise reduction for beautiful smooth image quality, even in low lighting conditions
  • Auto / Manual options for Iris Control and White Balance allows fine tuning for calibrating multiple cameras together.
  • Built-in Tally Lights that interface natively with Datavideo Switchers. (Red for Live / Green for up-next)
  • RMC-180 Controller compatible

Datavideo PTC-150TW Specifications:

  • Model Name: PTC-150TW
  • Product Name: HD/SD-SDI PTZ Camera (HDBaseT)
  • Video format:
    • 1080p 59.94/50/29.97/25
    • 1080i 59.94/50
    • 720p 59.94/50
    • 480i, 576i (on CVBS)
  • Image Sensor: 1/2.8” type progressive scan CMOS sensor
  • Effective Pixels (approx.): 2.14 Mega pixels
  • S/N Ratio: 50dB
  • Min. Illumination:
    • Color: 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
    • B/W: 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
  • Electronic Shutter: 1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150 (1/180), 1/215 ( 1/250), 1/300 (1/350),1/425 (1/500), 1/600 (1/725), 1/1000, 1/1250 (1/1500)
  • Zoom Ratio: 30x Optical Zoom
  • Gamma Control: Off / Normal / Standard Mode 1-4
  • Iris Control: Auto / Manual
  • Digital Noise Reductions: Yes
  • On-Screen Display (OSD): English
  • White Balance: AWB / MWB / One push WB / Outdoor /Indoor / Fluorescent
  • AGC / Gain Control:
    • Auto / Manual
    • Max. Gain Limit
    • Mirror / Flip Image: Yes
    • Focus Mode: Auto / Manual
  • Panning/Tilting Range:
    • Pan: 270°
    • Tilt: +90° to -20°
  • Panning/Tilting Speed:
    • Manual: 1~150°/Sec
    • Swing: 1~150°/Sec
    • Preset: 50 Position
  • Focal Length:
    • f=4.3 mm (WIDE) to 129 mm (TELE)
    • F1.6 to F4.7
  • Field of View (Horizontal, Wide):
  • Approx. 63.7°(WIDE END) / 2.3° (TELE END)
