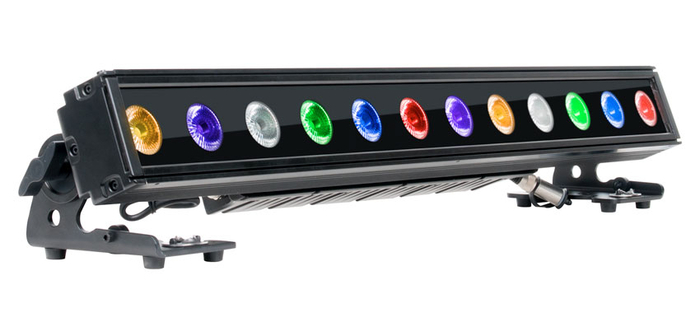

Elation SixBar 1000IP 12x 12W RGBAW+UV LED IP65 Batten Fixture

OUR PART #: SIXBAR-1000-IP MFR #: SIX098

Copied to clipboard

Elation's SIXBAR 1000 IP™ (SKU# SIX098) is an IP65 rated LED fixture that boasts (12) 12W 6-IN-1 RGBAW+UV LEDs, a 25° beam angle with pixel control... ...Read more

Elation SixBar 1000IP 12x 12W RGBAW+UV LED IP65 Batten Fixture Image 1
Elation SixBar 1000IP 12x 12W RGBAW+UV LED IP65 Batten Fixture Image 2
Elation SixBar 1000IP 12x 12W RGBAW+UV LED IP65 Batten Fixture Image 3
Elation SixBar 1000IP 12x 12W RGBAW+UV LED IP65 Batten Fixture Image 4
Elation SixBar 1000IP 12x 12W RGBAW+UV LED IP65 Batten Fixture
Our Price: $920.00
List Price: $1,150.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Elation's SIXBAR 1000 IP™ (SKU# SIX098) is an IP65 rated LED fixture that boasts (12) 12W 6-IN-1 RGBAW+UV LEDs, a 25° beam angle with pixel control, variable dimming curve modes, strobe and chase effect, while the UV feature has a wavelength of 395nm. Control options for the SIXBAR 1000 IP include RDM (remote device management) protocol support, IP rated DMX and power in/out connections, and a LCD menu display with 4 touch button control panel.

This LED bar can be used with dual adjustable rigging/floor stand brackets, and comes with glare shield and a frost filter included, along with multiple unit power linking. The SIXBAR 1000 IP is constructed with rugged die-cast aluminum exterior, offers flicker free operation for TV and FILM, and has a multi-voltage universal auto switching power supply (110-240v).

Includes

  • (12) 12W 6-IN-1 RGBAW+UV LED Bar
  • powerCON TRUE1
  • Glare Shield
  • (2) Lens Filters

Features

  • IP65 Rated
  • 12 x 12W 6-in-1 RGBAW+UV LEDs
  • 25° Beam Angle
  • Pixel Control
  • Rugged Die-Cast Aluminum Exterior
  • Glare Shield and (2) Lens Filters Included
  • Elation SIXBAR 1000 IP Specifications:

Specifications

  • SKU#: SIX098
  • Source:
    • (12) 12W 6-in-1 RGBAW+UV LEDs
    • 100,000 Hour Average LED Life (LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.)
  • Photometric Data:
    • 7,149 LUX 664 FC @ 3.3’ (1 m) (25° Full ON)
  • Effects:
    • Pixel Control
    • Strobe and Chase Effects
    • Variable and Selectable Dimming Curves
  • Control / Connections:
    • (8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
    • 4 Button Touch Control Panel and LCD Menu Display
    • RDM (Remote Device Management)
    • IP Rated 5pin DMX In/Out
    • powerCON TRUE1 Power In/Out
  • Size / Weight:
    • Length: 33.6” (853 mm)
    • Width: 5.6” (141.4 mm)
    • Vertical Height: 4.7” (120.5 mm)
    • Weight: 19.0 lbs. (8.6 kg)
    • NOTE: Dimensions without Glare Shield
  • Electrical / Thermal:
    • AC 110-240 V - 50/60 Hz
    • 145 W Max Power Consumption
    • Multiple Unit Power Linking
    • 5° F to 113° F (-15° C to 45° C)
    • UV Wavelength: 395nm
  • Approvals / Ratings:
    • CE | RoHs | IP65
