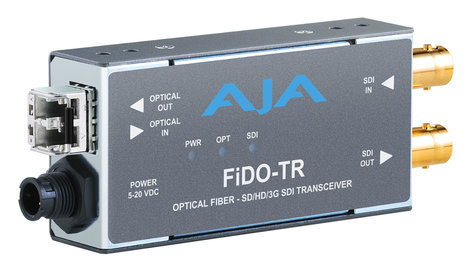

AJA FiDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver

The FiDO-TR-MM is a 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver from AJA that offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion. The FiDO-TR-MM can facilitate cable runs up to 2296-feet (700 m) for OM4 and 984 ft (300 m) (OM3) for Multi-Mode fiber optic cables - useful for eliminating ground loop problems.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features

• Compact and portable
• AJA Mini-Matrix
• Duplex connection (LC connector)
• 3G/HD/SD-SDI input and output
• Bidirectional, dual channel fiber
• Uses 5-20VDC power (DWP-U-R1 universal power supply included)
• 5 year warranty

Specifications

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Video Input Digital:
  • 1-channel independent 3G-SDI BNC Input, SMPTE-259/292/424
  • 1-channel Multi-Mode LC Fiber Input, SMPTE-297
  • Nominal Wavelength: 850 nm
  • Optical Sensitivity: -15dBm (min)
  • Overload: 0 dBm
• Video Output Digital:
  • 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
  • 1-channel Multi-Mode LC Fiber Output, SMPTE-297
  • Nominal Wavelength: 850 nm
  • Optical Power: -7dBm (min), -2dBm (max)
  • Extinction Ratio: 7.5dB (Typ)
• Reclocking:
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• Size (w x d x h): 4.6" x 1.71 " x 0.85" (117 x 43.5 x 21.6mm)
• Weight: 0.4 lb (0.2 kg)
• Power:
  • 3 watts max
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
• Environment:
  • Safe Operating Temperature: 32 to 104 F (0 to 40 C)
  • Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: < 10,000 feet (< 3,000 meters)
