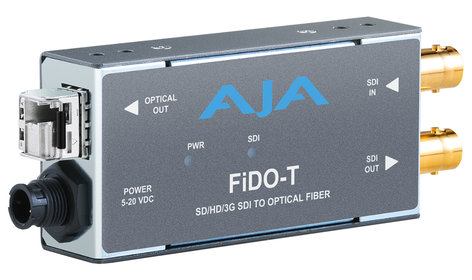

AJA FiDO-T-MM 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter

OUR PART #: FiDO-T-MM MFR #: FiDO-T-MM

Copied to clipboard

The FiDO-T-MM from AJA is a 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter that offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion. ...Read more

AJA FiDO-T-MM 1-Channel 3G-SDI To Multi-Mode LC Fiber Transmitter Image 1
AJA FiDO-T-MM 1-Channel 3G-SDI To Multi-Mode LC Fiber Transmitter Image 2
AJA FiDO-T-MM 1-Channel 3G-SDI To Multi-Mode LC Fiber Transmitter
Our Price: $869.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The FiDO-T-MM from AJA is a 1-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter that offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion. By using this mini-converter you can achieve cable runs up to 2296-feet (700 m) for OM4 and 984-feet (300 m) (OM3) for Multi-Mode fiber optic cables - useful for eliminating ground loop problems.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features

  • Universal power supply
  • Compact and portable
  • AJA Mini-Matrix
  • Simplex connection (LC connector)
  • 3G/HD/SD-SDI input
  • Looping SDI output
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • 5 year warranty

Specifications

  • Video Formats: 150 Mbps - 3 Gbps, format agnostic
  • Video Input Digital: 1-channel independent 3G-SDI Input with SDI Loop out, SMPTE-259/292/424
  • Video Output Digital:
    • 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
    • 1-channel Multi-Mode LC Fiber Output, SMPTE-297
    • Nominal Wavelength: 850 nm
    • Optical Power: -7dBm (min), -2dBm (max)
    • Extinction Ratio: 7.5dB (Typ)
  • Reclocking:
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked
  • Size (w x d x h): 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)
  • Weight: 0.5 lb (0.3 kg)
  • Power:
    • 2 watts max
    • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
  • Environment:
    • Safe Operating Temperature: 32 to 104 F (0 to 40 C)
    • Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: < 10,000 feet (< 3,000 meters)
