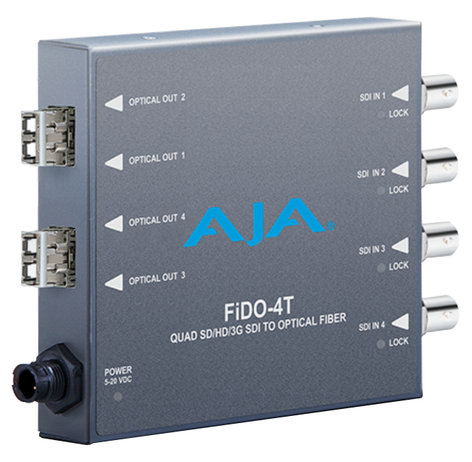

AJA FiDO-4T-MM 4-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter

FiDO-4T-MM from AJA is a transmitter that allows the transport of quad channel 3G-SDI, including 4K/UltraHD rasters over Multi-Mode SFPs. Offering unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, this allows cable runs up to 2296-feet (700 m) for OM4 and 984-feet (300 m) for OM3 for Multi-Mode fiber optic cables - useful for eliminating ground loop problems.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features

• Universal power supply
• Compact and portable
• AJA Mini-Matrix
• 4 simplex or 2 duplex output connections (LC connector)
• 4 independent channels of 3G/HD/SD-SDI input
• 4K/UltraHD-SDI over 4 fiber links
• Uses 5-20VDC power (DWP-U-R1 universal power supply included)
• 5 year warranty

Specifications

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Video Input Digital: 4-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424
• Video Output Digital:
  • 4-Channel independent Multi-Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 850 nm
  • Optical Power: -7dBm (min), -2dBm (max)
  • Extinction Ratio: 7.5dB (Typ)
• Reclocking:
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• Size (w x d x h): 4.6" x 4.02" x 0.85" (117 x 102.11 x 21.6mm)
• Weight: 0.8 lb (0.4 kg)
• Power:
  • 5 watts max
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
• Environment:
  • Safe Operating Temperature: 32 to 104 F (0 to 40 C)
  • Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: < 10,000 feet (< 3,000 meters)
