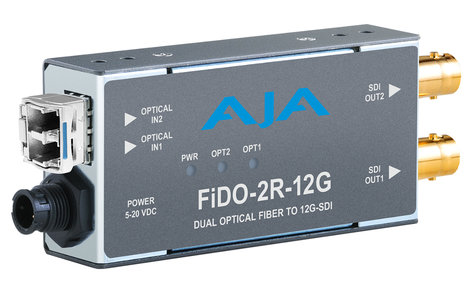

AJA FiDO-2R-12G 2-Channel Single Mode LC Fiber to 12G-SDI Receiver

OUR PART #: FiDO-2R-12G MFR #: FiDO-2R-12G

Copied to clipboard

The AJA Video Systems FiDO-2R-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion... ...Read more

AJA FiDO-2R-12G 2-Channel Single Mode LC Fiber To 12G-SDI Receiver Image 1
AJA FiDO-2R-12G 2-Channel Single Mode LC Fiber To 12G-SDI Receiver Image 2
AJA FiDO-2R-12G 2-Channel Single Mode LC Fiber To 12G-SDI Receiver
Our Price: $1,659.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AJA Video Systems FiDO-2R-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 32,808 ft (10 km) over standard single-mode fiber optic cable. FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features

  • Universal power supply
  • Compact and portable
  • AJA Mini-Matrix
  • 2 simplex or 1 duplex connection (LC connector)
  • 2 independent channels of 12G-SDI output, which also support 6G/3G/HD/SD-SDI
  • Both Fiber-to-SDI paths are completely independent
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • 5 year warranty

Specifications

  • Video Formats: 270 Mbps - 12 Gbps, format agnostic
  • Video Input Digital:
    • 2-Channel Independent Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -9 dBm (min 12 Gbps), -10 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)
  • Video Output Digital: 2-Channel Dual matching 12G-SDI BNC connectors, SMPTE-259/292/424/2081/2082
  • Reclocking:
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
    • All other rates are passed through and not reclocked
  • Size (w x d x h): 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)
  • Weight: 0.4 lb (0.2 kg)
  • Power:
    • 3.5 watts (max)
    • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
  • Environment:
    • Safe Operating Temperature: 32 to 104 F (0 to 40 C)
    • Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: < 10,000 feet (< 3,000 meters)
