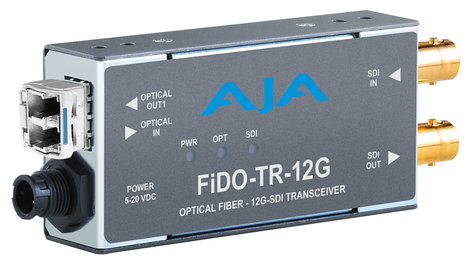

AJA Video Systems Inc FiDO-TR-12G
1-Channel 12G-SDI/LC Single-Mode LC Fiber Transceiver

OUR PART #:  FiDO-TR-12G

The AJA Video Systems FiDO-TR-12G Transceiver offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion...
Learn More
Our Price: $1,325.00
Write the first review.
AJA Video Systems Inc FiDO-TR-12G
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The AJA Video Systems FiDO-TR-12G Transceiver offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 32,808 ft (10 km) over standard single-mode fiber optic cable.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

AJA Video Systems FiDO-TR-12G Features:

  • Universal power supply
  • Compact and portable
  • AJA Mini-Matrix
  • Duplex connection (LC connector)
  • 12G-SDI input and output, which also supports 6G/3G/HD/SD-SDI
  • Bidirectional, dual channel fiber
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • 5 year warranty

AJA Video Systems FiDO-TR-12G Specifications:

  • Video Formats: 100 Mbps - 12 Gbps, format agnostic
  • Video Input Digital:
    • 1-Channel independent 12G-SDI, SMPTE-259/292/424/2081/2082
    • 1-Channel Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082
    • Nominal Wavelength: 1310 nm
  • Video Output Digital:
    • 1-Channel independent 12G-SDI, SMPTE-259/292/424/2081/2082
    • 1-Channel Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082
    • Nominal Wavelength: 1310 nm
  • Reclocking:
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
    • All other rates are passed through and not reclocked
  • Size (WxDxH): 4.6" x 1.71" x 0.85" (117 x 43.5 x 21.6mm)
