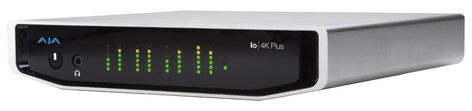

AJA Video Systems Inc IO-4K-PLUS
12-bit 4K/UltraHD/HD I/O via Thunderbolt 3

OUR PART #:  IO-4K-PLUS

The AJA Video Systems Io 4K Plus is the cutting edge of capture and output hardware available over Thunderbolt 3...
Learn More
Our Price: $2,495.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc IO-4K-PLUS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA Video Systems Io 4K Plus is the cutting edge of capture and output hardware available over Thunderbolt 3, offering a full set of professional video and audio connectivity with support for the latest 4K/UltraHD devices, High Frame Rate (HFR), High Dynamic Range (HDR) and deep color workflows. The power of Thunderbolt 3 enables Io 4K Plus to handle a wide range of formats from SD to HD, UltraHD and full 4K with frame rates up to 60p over both 12G-SDI and HDMI 2.0 with single cable simplicity , plus HDR 10 and HLG support over HDMI for emerging HDR workflows.

AJA Video Systems Io 4K Plus Features:

  • Portable 4K/UltraHD and HD/SD capture and playback across Thunderbolt 3
  • Backwards compatibility with existing Thunderbolt hosts
  • 12G/6G/3G/1.5G-SDI and HDMI 2.0 I/O for 4K, UltraHD, 2K, HD and SD with HFR support up to 60p at 4:2:2
  • Real time 4K/UltraHD to 2K/HD down-conversion
  • 8-,10- and 12-bit 4:2:2 and 4:4:4 over 12G-SDI or HDMI 2.0 workflow support
  • Two Thunderbolt 3 ports allow easy daisy-chaining of up to six Thunderbolt devices
  • 16-channel embedded audio on SDI; 8-channel embedded audio on HDMI; 8-channel analog audio via XLR break-out
  • Downstream keyer
  • Standard 12v 4-pin XLR for AC or battery power
  • Compatibility with creative applications including Adobe Premiere Pro, Apple Final Cut Pro X, Avid Media Composer, FilmLight products, AJA Control Room and more
  • RS-422 VTR control, Reference, LTC Input
  • Headphone jack and level control for mobile environments
  • 3-year international warranty

AJA Video Systems Io 4K Plus Specifications:

  • Video Formats:
    • (4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (4K) 4096 x 2160PsF 23.98, 24, 25
    • (UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840 x 2160PsF 23.98, 24, 25
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
      NOTE: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates.
  • Video Inputs:
    • 12G-SDI, SMPTE-2082, 12-bit*, 10-bit and 8-bit
    • 6G-SDI, SMPTE-2081, 10-bit and 8-bit
    • 3G-SDI, SMPTE-259/292/296/424/425, 12-bit*, 10-bit and 8-bit
      • 4K/UltraHD 4:4:4 (4 x BNC)
    • 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2 x BNC), 12-bit*, 10-bit and 8-bit
    • 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1 x BNC), 10-bit and 8-bit
    • HDMI v2.0:
      • 30/36 bits/pixel, RGB or YUV, 6 Gbps.
      • 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bi

     *Bit depth support is application dependent. Check with your software manufacturer for compatibility.

       NOTE: 12G-SDI, 6G-SDI configured outputs support UltraHD / 4K only

  • Video Outputs:
    • 12G-SDI, SMPTE-2082, 12-bit*, 10-bit and 8-bit
    • 6G-SDI, SMPTE-2081, 10-bit and 8-bit
    • 3G-SDI, SMPTE-259/292/296/424, 12-bit*, 10-bit and 8-bit
      • 4K/UltraHD 4:4:4 (4 x BNC)
    • 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2 x BNC), 12-bit*, 10-bit and 8-bit
    • 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1 x BNC), 10-bit and 8-bit
    • HDMI v2.0
      • 30/36 bits/pixel, RGB or YUV, 6 Gbps
      • 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit
      • HDR 10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
      • HLG Support - compatible with HDMI 2.0b/CTA-861-G**
      • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.

**HLG support is application dependent. Check with your software manufacturer for compatibility.

NOTE: 12G-SDI, 6G-SDI configured outputs support UltraHD / 4K only

  • Audio Inputs Digital:
    • 16-Channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
    • 8-Channel, 24 and 16-bit HDMI embedded audio, 48 kHz sample rate, synchronous
  • Audio Inputs Analog:
    • 8-Channel, 24 and 16-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
    • +24 dBu full scale digital (0dBFS)
    • +/- 0.2 dB 20 to 20 kHz frequency response
    • Up to 8 channels can be used (if all 8 set exclusively for input)
    • Up to 4 channels can be used (if input and output is enabled simultaneously)
  • Audio Outputs Digital:
    • 16-Channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
    • 8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
  • Audio Outputs Analog:
    • 8-Channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8 x XLR on DB-25 breakout cable (cable NOT included)
    • +24 dBu full scale digital (0dBFS)
    • +/- 0.2 dB 20 to 20 kHz frequency response
    • Up to 8 channels can be used (if all 8 set exclusively for output)
    • Up to 4 channels can be used (if input and output is enabled simultaneously)
  • Downstream Keyer:
    • Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte
      Down-Conversion 4K/UltraHD:
    • Real time, dedicated 4K down-conversion output (1 x BNC)
    • 4K to 2K down-conversion
    • UltraHD to HD down-conversion
  • Reference and LTC I/O:
    • 1 x BNC LTC output
    • 1 x BNC assignable to Reference video or LTC input
  • Reference:
    • Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V)
    • Nonterminating
  • Electrical Interface: Thunderbolt 3 (2x)
  • Machine Control:
    • RS-422, Sony 9-pin protocol
    • 9-pin D-connector pinout is as follows:

1 GND
2 RX-
3 TX+
4 GND
5 No Connection
6 GND
7 RX+
8 TX-
9 GND
Shell GND


  • Size (WxHxD): 8.74” x 8.11” x 1.65” (222mm x 206mm x 42mm)
  • Weight: 3.4 lbs (1.5 kg)
  • Power (device only): 10-20V, 30W typical, 33W max, 70W max with USB-C power delivery to external devices
  • Environment:
    • Safe Operating Temperature Range: 0° to 40°C (32°F to 104°F)
    • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
