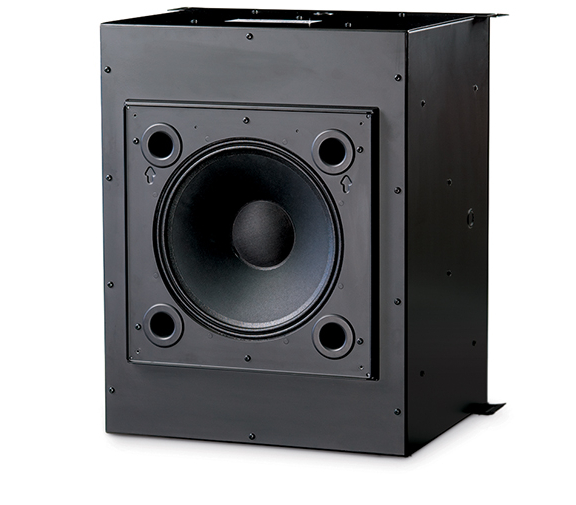

QSC AD-C1200 12" High Power Ceiling Speaker Baffle with 70V Transformer

The QSC AD-C1200 is a 12" black ceiling mount loudspeaker baffle assembly. Designed for music playback, public address and distributed audio in applications that require high output from a ceiling mounted loudspeaker, this installation loudspeaker delivers trouble free operation and versatility. Utilizing custom designed transducers and crossover networks, in combination with an acoustically optimized enclosure (AD-C1200BB, sold separately), the AD-C1200 continues the AD Series philosophy to bring the same versatility and reliability to high-ceiling applications.

Features

• 12" low-frequency woofer
• 1.75" diaphragm compression driver
• 300W continuous power rating
• 70 V multi-tap transformer included (system can operate in distributed or low-impedance mode)

Specifications

• Configuration: Passive
• Low-frequency Transducer: 12" (304 mm) ferrite woofer
• Hight-frequency Transducer: 1.75" (44 mm) neodymium compression driver
• Frequency Range:
  • Frequency Response (-6 dB): 42 Hz to 18 kHz
  • Useable Frequency Range (-10 dB): 37 Hz to 18 kHz
• Maximum Output:
  • Calculated Peak Output: 124 dB SPL
  • Calculated Continuous Output: 118 dB SPL
• Nominal Coverage: 85° conical DMT
• Nominal Impedance: 16 Ω
• Power Rating:
  • Continuous power handling: 300W
  • Recommended amplifier power (loudspeaker "program" power): 600W
• Sensitivity: 93 dB SPL, 1W / 1 m
• Bass Loading: Ported
• Transformer Type: Custom low distortion laminated core, wide bandwidth design
• Transformer Taps: 16 Ω bypass, 150W, 75W, 37.5W, 18.2W
• Agency Rating:
  • CE, UL 1480 (commercial/professional use)
  • UL 2043 (air handling spaces)
• Weight: 25 lbs. (11.3 kg)
