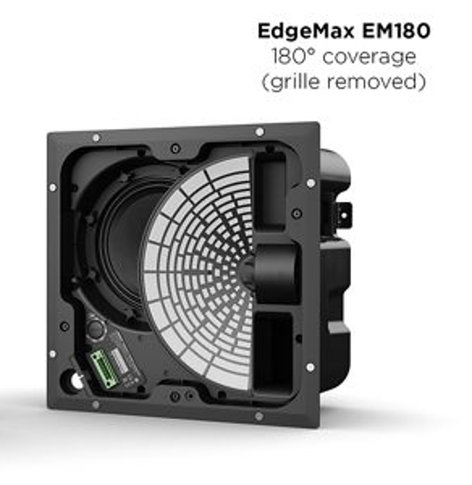

Bose EdgeMax EM180
180 Degree In-ceiling Premium Loudspeaker


Related Products

The Bose EdgeMax™ EM180 in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide® technology to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units.

Bose EdgeMax EM180 Features:

  • PhaseGuide technology produces unique asymmetrical vertical pattern for room-filling sound
  • Nominal 180° horizontal coverage from center ceiling-wall locations
  • Full-frequency range 60 – 18,000 Hz (-10 dB)
  • Maximum SPL up to 119 dB continuous and 125 dB peak
  • 2-way system combines Bose 1.3"-diaphragm compression driver and 8" woofer
  • Passive crossover with 8 O or 70/100V transformer taps
  • New auto-hold, spring-loaded mounting arms for fast, easy installs; Ships with tile bridge
  • UL1480 listing for air-handling (plenum) space installation
  • Magnetically attached white grille for quick access to wiring and tap settings
  • Black grille and rough-in pan accessories will be available
Black Grill for EdgeMax Speakers
Bose EDGEMAX-GRILL-BK Black Grill for EdgeMax Speakers
The Bose EDGEMAX-GRILL-BK is a black grill for the EdgeMax™ in-ceiling premium loudspeakers.
Call for price! Not available online.

Rough-in Pan for Bose Edgemax Speakers
Bose EDGEMAX-PAN Rough-in Pan for Bose Edgemax Speakers
The Bose EDGEMAX-PAN in a rough-in pan for the EdgeMax™ in-ceiling premium loudspeakers.
Call for price! Not available online.
