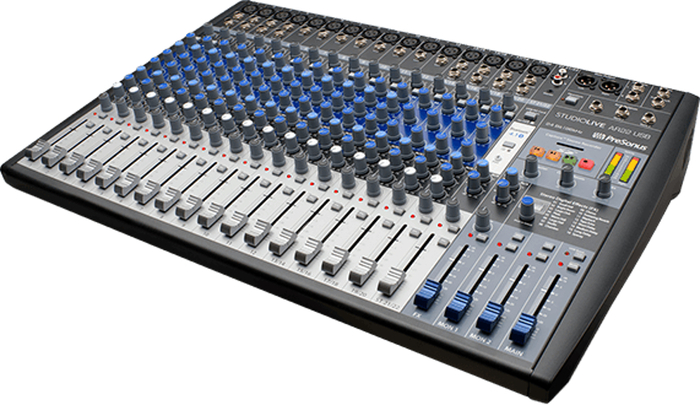

PreSonus StudioLive AR22 USB
22 Channel Analog Hybrid Mixer

OUR PART #:  STUDIOLIVE-AR22

The PreSonus StudioLive® AR22 USB 22-channel hybrid mixers make it simple to mix and record live shows, studio productions, band rehearsals, podcasts, and much more.
Learn More
Our Price: $799.95
List Price: $899.95
You save 11%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

PreSonus StudioLive AR22 USB
Qty:
In Stock

Similar Products

The PreSonus StudioLive® AR22 USB 22-channel hybrid mixers make it simple to mix and record live shows, studio productions, band rehearsals, podcasts, and much more. This is a musician’s mixer: lightweight, versatile, feature-rich, and packed with analog connections and digital tools, yet easy to learn and use. Mix with 16 of PreSonus®’ famous Class A preamps and three-band EQ. Create multitrack recordings and fly in backing tracks with a 24-bit, 96 kHz, USB 2.0 digital audio interface. Record and playback in stereo with the integrated SD digital recorder. Stream program music wirelessly, using onboard Bluetooth™. Compact and road-ready, StudioLive AR mixers provide a superior all-in-one solution for mixing and recording your performances.

System Requirements:

  • Mac:
    • Mac® OS X 10.8.5
    • Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
  • Windows:
    • Windows® 7 x64/x86 SP1 +platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
    • Intel Core 2 Duo (Intel Core i3 or faster recommended)
  • Mac and Windows Systems:
    • 4 GB RAM (8 GB or more recommended)
    • 30 GB hard-drive space (Studio One)
    • Internal or external 7200 RPM storage drive highly recommended
    • Monitor with 1366x768 resolution (high-dpi monitor recommended)

PreSonus StudioLive AR22 Specifications:

  • Microphone Preamp:
    • Type: XLR Female, Class A
    • Maximum Input level (unity gain): Mono Channels +18 dBu, ±1.0 dB, Stereo Channels: -5 dBu, ±1.0 dB
    • Gain Control Range: Mono Channels: 50 dB, ±1 dB (Unity to +50 dB), Stereo Channels: 40 dB, ± 1 dB (+5 to +45 dB
    • Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB
    • Frequency Response to USB (Direct): 20 Hz to 20 kHz, +0.5/- 1.5 dB
    • S/N Ratio to Outputs (+4 dBu): 89 dB
    • THD+N (min. gain, A-wtd): < 0.01%
    • Input Impedance: 1 kO
    • EIN (+55 dB gain, 150O input, 20 Hz-22 kHz, A-wtd):
      • Mono Channels: < 128 dBu
      • Stereo Channels: <120 dBu
    • Common Mode Rejection Ratio (1 kHz, +55 dB gain): 65 dB
    • Phantom Power: +48V, ±3V, Globa
    • NOTE: All Channel Inputs sum through Mic preamp
  • Instrument Inputs:
    • Type: ¼” TS Female, Unbalanced, Hi-Z
    • Maximum Input Level (min. gain, 1 kHz@ 0.5% THD+N): +12 dBu ±1.0 dB
    • Gain Control Range: 50 dB, ±1 dB (Unity to +50 dB)
    • Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB
    • Frequency Response to USB (Direct): 20 Hz to 20 kHz, +0.5/-1.5 dB
    • Dynamic Range (min. gain, A-wtd): > 105 dB
    • Dynamic Range (mid. Gain, unwtd): > 108 dB
    • THD+N (1 kHz, -1 dBFS, A-wtd): < 0.01%
    • THD+N (1 kHz, -1 dBFS, unwtd): < 0.01%
    • Input Impedance: > 1 MO
    • NOTE: All Channel Inputs sum through Mic preamp
  • Line Inputs:
    • Type: ¼” TRS Female, Balanced
    • Maximum Input Level (min. gain, 1 kHz@ 0.5% THD+N):
      • Mono Channels: +18 dBu, ±1.0 dB
      • Stereo Channels: +22 dBu, ±1.0 dB
    • Gain Control Range:
      • Mono Channels 50 dB, ±1 dB (-30 to +20 dB)
      • Stereo Channel 50 dB, ±1 dB (-15 to +25 dB)
    • Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB
    • Frequency Response to USB (Direct): 20 Hz to 20 kHz, +0.5/-1.5 dB
    • S/N Ratio to Analog Outputs (+4 dBu): 82 dB
    • THD+N (1 kHz, -1 dBFS, A-wtd): < 0.01%
    • Input Impedance (Balanced): 10 kO
    • NOTE: All Channel Inputs sum through Mic preamp
  • Main, Control Room, Monitor, and FX Outputs:
    • Type (Main Outputs): XLR Male, Impedance Balanced
    • Type (Control Room, Monitor, FX Outputs): ¼” TRS Female, Balanced
    • Rated Output Level (Main Outputs): +24 dBu, ±1.0 dB
    • Rated Outputs Level (Control Room, Monitor, FX Outputs): +18 dBu
    • Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB
    • Dynamic Range (A-wtd): > 108 dB
    • THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd): < 0.01%
    • Output Impedance: 100 O
  • Headphone Output:
    • Type: ¼” TRS Female, Stereo, Unbalanced
    • Maximum Output Level: 150 mW/channel @ 60 O
    • Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB
    • Dynamic Range (A-wtd): > 103 dB
    • THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd): < 0.01%
  • System Crosstalk:
    • Input to Output (Ref = +4dBu, 20 Hz to 20 kHz, unwtd): -85 dBu
    • Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd): -80 dBu
  • Signal Level LED:
    • Signal: -30 dBFS (pre-EQ)
    • Clip: -3.0 dB before clip (pre- or post-EQ)
  • Channel EQ:
    • Low Cut: 100 Hz, -18 dB/Octave
    • High Shelving: ±15 dB @ 12 kHz
    • Mid Peaking (Mono Channels): ±15 dB @ 140 Hz to 3.5 kHz (variable)
    • Mid Peaking (Stereo Channels): ±15 dB @ 2.5 kHz
    • Mid-Band Q:
      • Boost: 0.55
      • Cut: 2.5
    • Low Shelving: ±15 dB @ 80 Hz
  • Audio Interface:
    • Host Interface: USB 2.0
    • ADC Dynamic Range (Component): 114 dB
    • ADC Dynamic Range (Measured: A-wtd, 48 kHz): 105 dB
    • DAC Dynamic Range (Component): 114 dB
    • DAC Dynamic Range (Measured: A-wtd, 48 kHz): 105 dB
    • Signal-to-Noise (a-weighted): -96 dB
    • Bit Depth: 24 bits
    • Internally Supported Sample Rates: 44.1, 48, 88.2, 96 kHz
    • Jitter: < 80 ps RMS (20 Hz – 20 kHz)
    • Jitter Attenuation: > 60 dB (1 ns in => 1 ps out)
  • SD™ Recorder:
    • Supported Media Format: FAT16 formatted SD™ card, FAT32 formatted SDHC™ card
    • Media Storage Capacity:
      • SD card: 2 GB
      • SDHC card: 32 GB
    • Recording File Format: Stereo WAV
    • Playback File Formats: Stereo WAV, MP3 (96-320 kbs, 32 / 44.1 / 48 kHz)
    • Sampling Rate (WAV): 44.1 kHz
    • Bit Depth:
      • Recording: 24 bits
      • Playback: 16- or 24-bit
  • Power / Environmental:
    • Connector: IEC
    • Input Voltage Range: 90 to 240 VAC
    • Recommended Ambient Operating Temperature: 32° to 104°F (0° to 40°C)
  • Physical (HxWxD): 3.7” x 23” (chasis only) x 15” (95 x 584 x 390 mm)
  • Weight: 17.2 lbs (7.8 kg)
