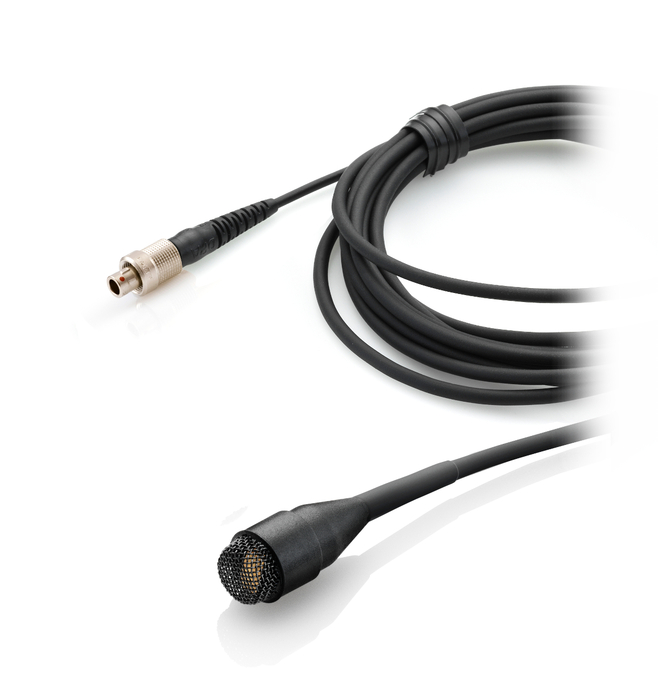

DPA 4061-OL-C-B03 Standard Sensitivity Omni Mini Mic with Hardwired LEMO3 Connector, Black

The DPA Microphones SC4061-B03 Omnidirectional Microphone, Lo-Sens delivers a very clean, natural, and detailed sound quality. It features a miniature 3-pin Lemo mic connector for use with Sennheiser SK: 50/250/2000/3063/5012 models.

The DPA Microphones 4061 series are the versatile workhorses that adapt to your needs. With excellent sound quality as well as a large range of accessories, the miniature mics are the obvious choice for any application requiring a big sound and a small footprint.

Originally designed for use with wireless systems in theater, television and close-miked instrument applications, the 4061 Miniature Omnidirectional Microphone is highly unobtrusive. Because of it's small size, these tiny condensers exhibit an exceedingly accurate omnidirectional pattern and therefore do not need to be aimed directly at the sound source to achieve quality pickup.

The SC4061 is acoustically identical to the SC4060, but the sensitivity is adjusted to match some of the more sensitive transmitters on the market.

The miniature mics offer the most clear, transparent, and natural sound available on the miniature mic market. The mics are capable of handling up to 144 dB peak before clipping, and with a linear response, low distortion, and an extremely large dynamic range, they sound great no matter the application.

The4061 Miniature Mics are made to endure the toughest of conditions. DPA's unique Double Vent Protection System allows for a great resistance to humidity and sweat. DPA's Miniature Omnidirectional Mics design features a reinforced cable relief which is built to withstand the constant twists, bends, and pulls that are part of the everyday use. With a gold treated diaphragm and microphone housing plus a kevlar reinforced cable, the miniature series mics are made to endure.

This particular model, the SC4061-B03 model comes in black and features a hardwired 3-pin Lemo connector for use with Sennheiser Wireless systems.

DPA 4061-OL-C-B03 Features:

• Extremely rugged and reliable
• Low noise
• Exceptional audio quality
• Large selection of accessories

DPA 4061-OL-C-B03 Specifications:

• Directional Characteristics: Omnidirectional
• Principle of Operation: Pressure
• Cartridge Type: Pre-polarized condenser element with vertical diaphragm
• Frequency Range, +/- 2 dB:
  • Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz
  • High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz
• Sensitivity, Nominal, +/- 3 dB at 1 kHz: 6mV/Pa; -44 dB re. 1 V/Pa
• Equivalent Noise Level A-weighted: Typ. 26dB(A) re. 20 µPa (max. 28 dB(A))
• Equiv. Noise Level ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
• S/N Ratio, re. 1 kHz at 1 Pa (94 dB SPL): 68dB(A)
• Total Harmonic Distortion (THD):
  • < 1 % THD up to 123 dB SPL peak
  • < 1 % THD up to 120 dB SPL RMS sine
• Dynamic Range: Typ. 97 dB
• Max. SPL, Peak Before Clipping: 144 dB
• Output Impedance: 30 – 40 ohm
• Cable Drive Capability: Up to 300 m (984 ft)
• Power Supply: for Wireless Systems: Min. 5 V – max. 50 V through DPA adapter.
• Connector: Hardwired 3-Pin Lemo for Sennheiser Wireless SK: 50/250/2000/3063/5012 models
• Color: Black
• Microphone Weight: 0.26 oz (7.5 g), including cable and connector
• Microphone Diameter: 0.21" (5.4mm)
• Microphone Length: Max. 0.5" (12.7mm)
• Cable Length: 5.9ft (1.8m)
• Cable Diameter: 0.06" (1.6mm)
• Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
• Relative Humidity (RH): Up to 90%
