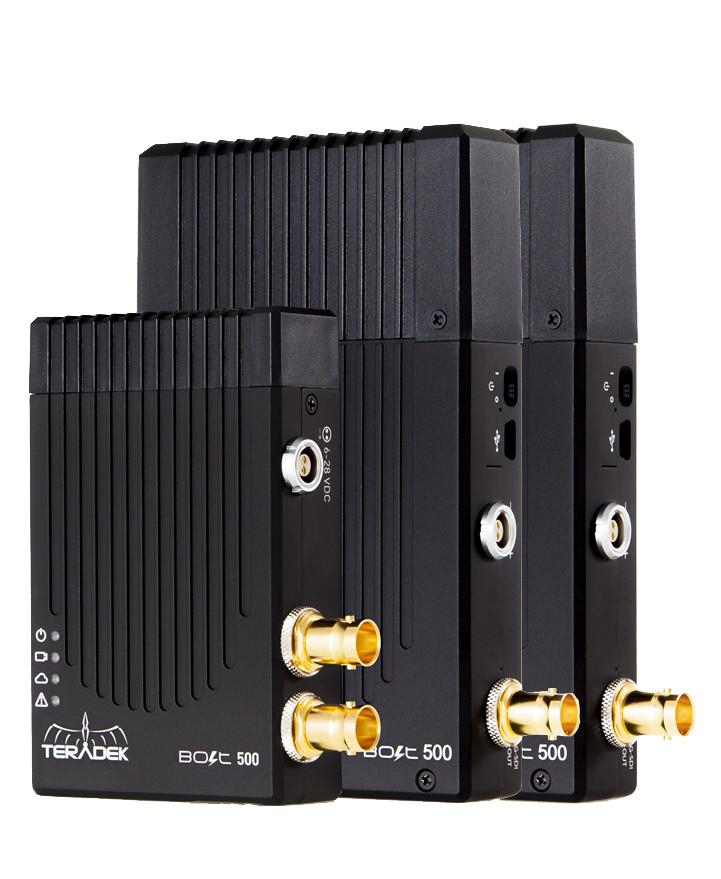

Teradek TER-BOLT-925
Bolt 500 3G-SDI Video Transceiver Set

OUR PART #:  TER-BOLT-925

The Teradek TER-BOLT-925 Bolt 500 Transceiver set has metadata and timecode support, 3D LUTs, dual inputs/outputs...
Learn More
Our Price: $2,427.04
List Price: $2,490.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Teradek TER-BOLT-925
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Teradek TER-BOLT-925 Bolt 500 Transceiver set has metadata and timecode support, 3D LUTs, dual inputs/outputs, multicast capable (1 Transmitter can multicast up to 4 Receivers), manual frequency selection and USB 3.0 GRAB Engine are all included on these new models.

Teradek TER-BOLT-925 Includes:

  • 3 x SDI BNC to BNC 10" Cable
  • Transmitter:
    • 1 x 2-pin Connector to PowerTap 18: Cable
    • 1 x Hot Shoe Adapter (1/4"-20")
    • 1 x SDI BNC to BNC 10in Cable
  • Receiver:
    • 1 x Thumb Screw 1.25" length (1/4"-20")
    • 1 x Lightstand Adapter (1/4"-20")
    • 1 x SDI (BNC to BNC) Cable 10"
    • 1 x USB 3.0 Cable A to Micro B (3ft Length)
    • 1 x PSU 2-Pin Connector to 18W AC Adapter 6ft cable
    • 1 x 1-Year Warranty
    • 2 x HDMI Type A to Type A 12" Cable
    • 2 x SDI BNC to BNC 10" Cable
  • Receiver 2:
    • 1 x Thumb Screw 1.25" length (1/4"-20")
    • 1 x Lightstand Adapter (1/4"-20")
    • 1 x SDI (BNC to BNC) Cable 10"
    • 1 x USB 3.0 Cable A to Micro B (3ft Length)
    • 1 x PSU 2-Pin Connector to 18W AC Adapter 6ft cable
    • 1 x 1-Year Warranty
    • 2 x HDMI Type A to Type A 12" Cable
    • 2 x SDI BNC to BNC 10" Cable

Teradek TER-BOLT-925 Features:

  • Longer Range: Transmit visually lossless video up to 500ft with no delay
  • 2 New DFS Channels: Operate interference-free more often in the USA and Europe by making use of two newly introduced DFS channels
  • More Robust Than Ever Before: Reach your Bolt’s full range and potential right out of the box with new software that provides the most robust wireless link we’ve ever created
  • Rapid Reconnection: Reconnect times during a dropped link are now instantaneous once you move back into range
  • Built-In HDMI to SDI Converter: Perfect for use with MoVI and other gimbals, Bolt’s TX has a built-in HDMI to SDI converter, allowing you to connect both your on-camera monitor and video source via the same device

Teradek TER-BOLT-925 Specifications:

Bolt Pro 500 3G-SDI Video TX:

  • Video:
    • Video Inputs: 1 x SD/HD/3G-SDI (75 Ohm BNC)
    • Video Outputs: 1 x HD/SD/3G-SDI Loop-out (75 Ohm BNC)
    • Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087
    • Color Sampling: SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
    • Delay Tx To Rx: <0.001sec (when no video format conversion is enabled)
  • Supported Input Resolutions:
    • 1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf23.98/24/25/29.97/30
    • 1080i50/59.94/60
    • 720p50/59.94/60
    • 480p59.94/576p50 (via HDMI ports only)
    • 480i(NTSC)/576i(PAL)
  • Video Processing:
    • Video Compression: visually lossless
    • Color Correction:
      • CDL/1024 1D LUT (supports 10-bit color)
      • 33x33x33 3D LUT (supports 10-bit color)
  • Audio Processing:
    • Audio Compression: 48kHz 24-bit PCM
  • Inputs:
    • Audio Input: Embedded Audio Input
  • Physical:
    • Dimensions: 1"x2.6"x4.0"(24 x 66 x 102.1mm)
    • Weight: 7.6oz(217g)
    • Construction:
      • Milled Aluminum(Chassis) and regulation-compliant PCB
      • Plastic Cap
  • Interfaces:
    • Http: None
    • Configuration Interfaces: None
    • Switches: On/Off and Reset Switch
    • Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
    • Usb Interface Functionality: Upgrade via Mini-USB
  • Network:
    • Wireless:
      • Non-DFS Frequencies:
        • US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
        • EU & JP: 5.19 ~ 5.23 GHz
      • DFS Frequencies:
        • US: 5.27 ~ 5.55 GHz and 5.67 GHz
        • EU & JP: 5.27 ~ 5.67 GHz
    • Rf Channel Selection: Auto only (NOT configurable)
    • Encryption: AES-128
    • Rf Power: 17dBm EIRP
    • Range: Up to 500ft line of sight
    • Unicast Multicast: Unicast / Multicast
    • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones
  • Power:
    • Power Input: 2-Pin Connector 7-28 VDC
    • Battery: None
    • Nominal Power Consumption: 7.3 Watts (Measured at 1080p60)
    • Operating Temperature: 0° ~ 40°C
  • Mountability: Multiple mounting options with 1/4" holes

Bolt Pro 500 - 3G-SDI Video RX:

  • Video:
    • Video Outputs:
      • 1 x SD/HD/3G-SDI (75 Ohm BNC)
      • 1 x USB 3.0 micro B receptacle
    • Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087
    • Color Sampling: SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
    • Delay Tx To Rx: <0.001sec (when no video format conversion is enabled)
  • Supported Input Resolutions:
    • 1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf23.98/24/25/29.97/30
    • 1080i50/59.94/60
    • 720p50/59.94/60
    • 480p59.94/576p50 (via HDMI ports only)
    • 480i(NTSC)/576i(PAL)
  • Video Processing:
    • Video Compression: visually lossless
    • Test Pattern Generator Support: Custom output formatted test pattern over HDMI and SDI.
    • Color Correction:
      • CDL/1024 1D LUT (supports 10-bit color)
      • 33x33x33 3D LUT (supports 10-bit color)
  • Audio Processing:
    • Audio Compression: 48kHz 24-bit PCM
  • Inputs:
    • Audio Input: Embedded Audio Input
  • Physical:
    • Dimensions: 1.0" x 3.5" x 5.8" (25.2 x 88.9 x 146.5mm)
    • Weight: 10.5oz(299g)
    • Construction:
      • Milled Aluminum(Chassis) and regulation-compliant PCB
      • Plastic Cap
  • Interfaces:
    • Http: None
    • Configuration Interfaces:
      • No OLED Screen
      • There is an OSD that appears on the Video Output which can be controlled with the Menu Joystick
    • Switches: On/Off and Reset Switch
    • Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
    • Usb Interface Functionality: Upgrade via Mini-USB
  • Network:
    • Wireless:
      • Non-DFS Frequencies:
        • US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
        • EU & JP: 5.19 ~ 5.23 GHz
      • DFS Frequencies:
        • US: 5.27 ~ 5.55 GHz and 5.67 GHz
        • EU & JP: 5.27 ~ 5.67 GHz
    • Rf Channel Selection: Auto only (NOT configurable)
    • Encryption: AES-128
    • Rf Power: 15dBm EIRP
    • Range: Up to 500ft line of sight
    • Unicast Multicast: Unicast / Multicast
    • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones
  • Power:
    • Power Input: 2-Pin Connector 7-28 VDC
    • Battery: None
    • Nominal Power Consumption: 9 Watts (Measured at 1080p60)
    • Operating Temperature: 0° ~ 40°C
  • Mountability: Multiple mounting options with 1/4" holes
