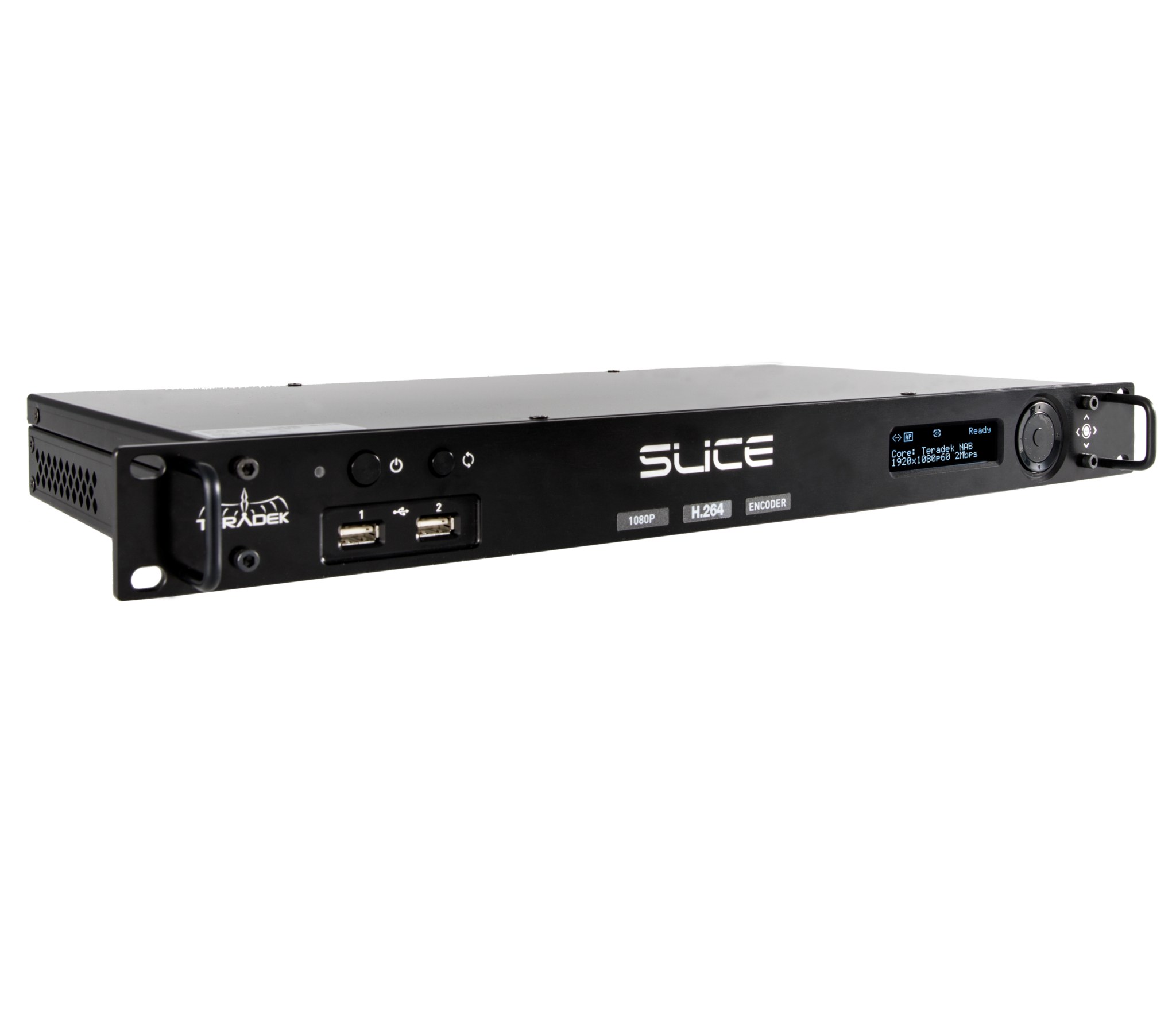

Teradek Slice 656
SDI/HDMI Rack-Mount H.264 Encoder with Wi-Fi & Ethernet

OUR PART #:  TER-SLICE-656

The Teradek TER-SLICE-656 Slice 656 is a rack mount HD-SDI high profile H.264 encoder and decoder solution for mission critical enterprise applications.
Learn More
Our Price: $2,999.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Teradek Slice 656
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Teradek TER-SLICE-656 Slice 656 is a rack mount HD-SDI high profile H.264 encoder and decoder solution for mission critical enterprise applications. Slice enables video professionals to broadcast low latency high definition 1080p video for IPTV, streaming servers, OTT content, set-top boxes, and recorders at an unprecedented price.

Teradek Slice 656 Includes:

  • 1 x Slice Encoder
  • 1 x Quickstart Guide
  • 1 x Power Cable IEC
  • 2 x Antenna 2dBi WiFi 2.4/5.8 GHz
  • 1-Year Warranty

Teradek Slice 656 Features:

  • Real-Time H.264 (AVC) Encoder
  • Dual-Band 2.4/5.8 GHz WiFi, Ethernet and USB Interfaces
  • HDMI and SDI Video Inputs
  • 1U Rack Mount
  • Built-In Color Grading
  • On-Board SD Card Recording
  • Two-Pin LEMO-Type Power Input

Teradek Slice 656 Specifications:

  • Video Inputs:
    • 1 x SD/HD-SDI (75 Ohm BNC)
    • 1 x HDMI Type-A receptacle
  • Bonding: TeraLink
  • Supported Resolutions:
    • 1080p 23.98/24/25/29.97/30/50/59.94/60*
    • 1080i 50/59.94/60
    • 1080PsF 23/24/25/29/30
    • 720p 50/59.94/60
    • 576i
    • 480i
    • 480p (for HDMI input only)
    • 576p (for HDMI input only)
      *Ingests 1080p50/59/60
  • Video Processing:
    • Video Compression: H.264, Baseline, Main and High Profile
    • Supported Video Bitrate:
      • 250 Kbps to 15 Mbps*
        *15 Mbps (wired), 10 Mbps (WiFi)
    • Test Pattern Generator Support: Supports Custom Test Pattern
    • Video Format Conversion Support: Built in Video Scaler and Deinterlacer
    • Color Correction:
      • CDL/1024 1D LUT (supports 10-bit color)
      • 33x33x33 3D LUT (supports 10-bit color)
  • Protocol Support:
    • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
    • Supported Video Transport Protocols:
      • RTMP
      • RTP, RTSP, RTSP over HTTP
      • MPEG-TS (MPEG-TS is an optional paid license)
    • Remote Control: Teradek Core
    • Software Or Platform Integration: Ustream, YouTube Live, Facebook & new Livestream
  • Audio Compression: AAC-LC, MPEG Layer 2
  • Audio Input:
    • Embedded Audio Input
    • Analog Line or Mic in, adjustable gain
  • Audio Output: Headphone output
  • Physical:
    • Dimensions (WxDxH): 9.8" x 17" x 1.7" (1U) (248.92 x 431.8 x 43.2mm)
    • Weight: 144oz (4082g)
    • Construction: Milled Aluminum
    • Mountability: Mount as industrial rack-mount or placed on a desktop for rugged commercial applications
  • Interfaces:
    • Http: WebUI for Configuration and Control
    • Configuration Interfaces:
      • OLED Display with joystick Navigation buttons
      • Feature-rich WebUI for configuration and control
    • Switches: On/Off and Reset Switch
    • Recording Storage: SD Card: Full Size
    • Mobile App: Vuer, Live:Air
    • Usb Interface Functionality: 2x Powered USB 2.0 host port
  • Network:
    • Ethernet: 10/100/1000 BASE-T Gigabit
    • Wireless: WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo
    • Usb:
    •  Rf Channel Selection:
      • Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only)
      • Configurable to specific channels
    • Encryption: 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES
  • Power:
    • Power Input: 2 Pin Connector Power input
    • Battery: No Battery Included
    • Nominal Power Consumption: 8W, 7W (no WiFi)
    • Auxilary Power Input: 6-28V DC
