Elation Chorus Line 16 16x40W RGBW LED Pixel Bar Wash Fixture with Zoom and Motorized Tilt

OUR PART #: CHORUS-LINE-16 MFR #: CHO012

Copied to clipboard

The Elation Pro Lighting CHORUS LINE 16™ is a 16 pixel bar wash luminaire with motorized zoom and tilt. ...Read more

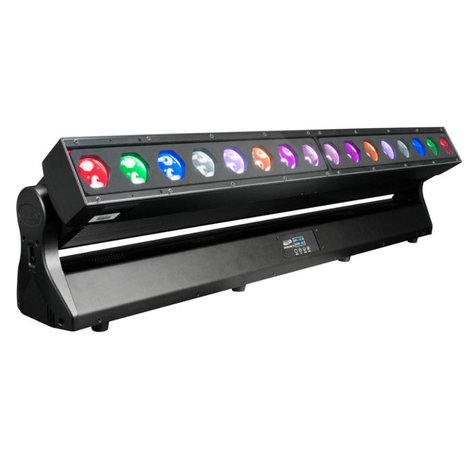

Elation Chorus Line 16 16x40W RGBW LED Pixel Bar Wash Fixture With Zoom And Motorized Tilt Image 1
Elation Chorus Line 16 16x40W RGBW LED Pixel Bar Wash Fixture With Zoom And Motorized Tilt Image 2
Elation Chorus Line 16 16x40W RGBW LED Pixel Bar Wash Fixture With Zoom And Motorized Tilt Image 3
ukOcfc7FIaU
1 Video
Elation Chorus Line 16 16x40W RGBW LED Pixel Bar Wash Fixture With Zoom And Motorized Tilt
Our Price: $2,992.00
List Price: $3,740.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Elation Pro Lighting CHORUS LINE 16™ is a 16 pixel bar wash luminaire with motorized zoom and tilt. Featuring 40W 4-in-1 RGBW LEDs, ultra-wide motorized zoom and 220° tilt, and full pixel control. This fixture offers 64 color presets and 14 unique color macros, electronic strobe, 16-bit dimming and variable dimming curves. Variable LED refresh rate and gamma brightness produces flicker free operation for TV and FILM. Control via DMX, RDM (Remote Device Management) Kling-NET, and Art-Net protocol support. Connectors available for DMX, etherCON, and power in/out connections, while a (4) button LCD control display panel adds to the feature set. The Chorus Line 16 also features dual quick-lock rigging, and a multi-voltage universal auto switching power supply (100-240v).

Features

  • (16) 40 W 4-in-1 RGBW LEDs Pixel Bar Wash Luminaire
  • Motorized Zoom and 220° Tilt
  • Full Pixel Control
  • Electronic Strobe
  • Color and Chase Macros
  • 16-Bit Dimming and Variable Dimming Curve Modes
  • Variable LED Refresh Rate and Gamma Brightness
  • Flicker Free Operation for TV and FILM

Specifications

  • Source:
    • (16) 40 W 4-in-1 RGBW LEDs
    • 50,000 Hour Average LED Life* (*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
  • Effects:
    • Motorized Zoom and 220° Tilt
    • Full Pixel Control
    • 64 Color Presets and 14 Unique Color Macros
    • Electronic Strobe
    • 16-Bit Dimming and Variable Dimming Curve Modes
  • Control/Connections:
    • Multiple DMX Channel Modes (78 total channels)
    • Variable LED Refresh Rate
    • Variable LED Gamma Brightness
    • 4 Button Touch Control Panel
    • 180° Reversible LCD Menu Display
    • 8 / 16-Bit Resolution Zoom and Tilt Movement
    • RDM (Remote Device Management)
    • 5pin DMX In/Out
    • RJ45 EtherCON In/Out
    • powerCON Power In/Out
  • Dimensions (LxWxH): 42.05" x 7.44" x 11.46" (1068 x 189 x 291 mm)
  • Weight: 47.0 lbs. (21.3 kg)
  • Electrical/Thermal:
    • AC 100-240 V - 50/60 Hz
    • 739 W Max Power Consumption
    • 5° F to 113° F (-15° C to 45° C)
  • Approvals/Ratings: CE | RoHs | IP20
