Product Overview
The ColorBlaze Upgrade Kit from Philips Color Kinetics retrofits any ColorBlaze 72 fixture to four-channel RGBW or RGBA operation. This upgrade kit (Item Number: 116-000036-00) is designed for the RGBA ColorBlaze 72 LED batten with an 18° beam angle and when installed the upgrade will nearly double the output lumens of the fixture.
In addition, expanded on-board controls feature a range of new functions, including multiple color control modes, 8- and 16-bit resolution, a configurable intensity channel, transition speeds, dimming curves, improved color consistency with Chromasync technology, and three built-in effects (Fixed Color, Color Wash, and Chasing Rainbow).

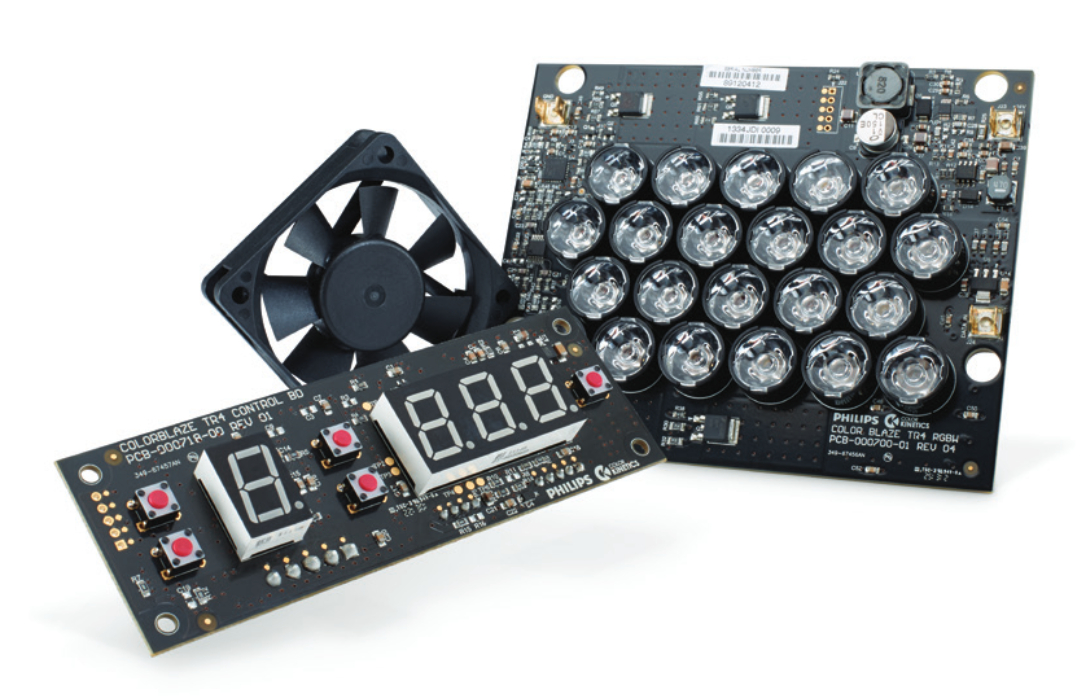

ColorBlaze 72 Upgrade Kit Includes:
- LED boards
- Fan
- Controller board
- Mounting Hardware
- Jumper Cables
ColorBlaze 72 Upgrade Kit Features:
- Upgraded fixtures provide nearly double the output lumens. Controllable in increments of 152 mm (6 in) to 1.8 m (6 ft), deliver stunning effects and intense washes of color for flooding surfaces and stages.
- Channels of amber or neutral white LEDs seamlessly blend with channels of red, green, and blue LEDs to produce a significantly expanded color palette. In addition to the millions of saturated colors achievable with standard RGB lighting fixtures, RGBW fixtures provide high-quality white light, while RGBA fixtures create intense yellows and an extended range of subtle pastel colors.
- Choose from four-channel RGBW or RGBA in / out and three-channel RGB in mapped to four-channel out, allowing light shows created on three-channel RGB fixtures to run on upgraded fixtures.
- Optibin, an advanced binning algorithm, sets a newstandard for the color consistency and uniformity of LED sources used in manufacturing. Chromasync technology achieves unprecedented consistency of light performance and color precision across multiple fixtures in an installation, while maximizing intensity and color range.
- 16-bit resolution supports smooth dimming and precise color control. Adjustable dimming curves and LED transition speeds emulate the behavior of other Philips Color Kinetics fixtures and conventional theatrical fixtures with DMX dimming.
- Push button addressing and configuration — Onboard addressing offers easy configuration without external addressing tools.
ColorBlaze 72 Upgrade Kit Specifications (partial):
- Item Number: 116-000036-00
- Output:
- Beam Angle: 18°
- Lumens†: 11,832
- Efficacy (lm/W): 35.6
- LED Channels: Red/Green/Blue/Amber
- Mixing Distance: 152 mm (6 in) to uniform light
- NOTE † 1.2 m (4 ft) lumen output measurements comply with IES LM-79-08 testing procedures. 1.6 m (6 ft) measurements are estimated based on the 1.2 m (4 ft) measurements.
- Electrical:
- Input Voltage: 100–240 VAC, auto-switching, 50/60 Hz
- Power Consumption (Maximum at full output, steady state): 420 W
- Control:
- Interface: DMX
- Control System: Philips Color Kinetics full range of controllers, including Light System Manager, Video System Manager Pro, iPlayer 3, Antumbra iColor Keypad, and ColorDial Pro, or third-party controllers
- Physical:
- Dimensions (Height x Width x Depth): 7.5 x 68.7 x 6.5 in (191 x 1746 x 165 mm)
- Weight: 60 lb (27.2 kg)
- Housing Material: Extruded aluminium, black finish
- Lens: Clear polycarbonate
- Fixture Connections: IEC power cable, RJ45, Ethercon, or XLR-5 data connections
- Temperature Ranges:
- -40° – 122° F (-40° – 50° C) Operating
- -4° – 122° F (-20° – 50° C) Startup
- -40° – 176° F (-40° – 80° C) Storage
- Humidity: 0 – 95%, non-condensing
NOTE:
For additional specifications and information, please consult the documentations tab above.
