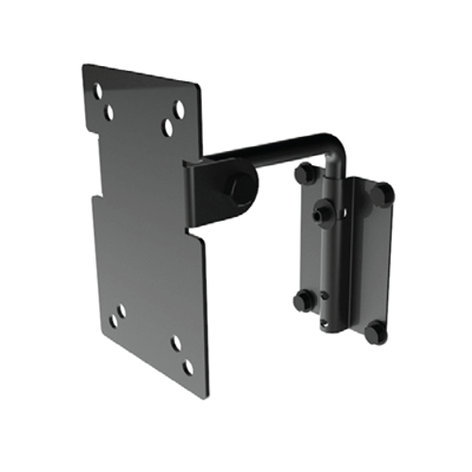

Allen Products/Adaptive Technologies MultiMount MM-017
Pan & Tilt Speaker Wall Mount in Black, 25 lb Capacity

OUR PART #:  MM-017

Allen Products' MultiMount® MM-017 quickly mounts and aims loudspeakers weighing up to 25 lbs (11.3 kg) to walls, from ceilings, overhangs and other structural surfaces.
Learn More
Our Price: $88.00
List Price: $110.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Allen Products/Adaptive Technologies MultiMount MM-017
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Allen Products' MultiMount┬« MM-017 quickly mounts and aims loudspeakers weighing up to 25 lbs (11.3 kg) to walls, from ceilings, overhangs and other structural surfaces. It quickly and permanently attaches surround loudspeakers to auditorium walls and offers a full range of pan and tilt rotations. This makes it easy to mount and aim surround speakers accurately in cinema applications.

The MM-017 includes an extended support arm that firmly anchors speakers even through deep sound panels and drapes (up to 2.5" deep) and allows precise, no-drift rotational adjustments.This unique support arm acts as a convenient carrying handle during installation. Once the mount has been inserted into place, the mounting plate does the job of handling all the weight. This leaves the installer's hands free to complete the wiring and positioning process.

Allen Products MultiMount MM-017 Includes:

  • (1) 2-axis mount
  • (1) flat washer
  • (1) screw, 1/4"-20 x 1/2" long
  • (1) isolation gasket

Allen Products MultiMount MM-017 Features:

  • Weather resistant for covered outdoor and indoor use
  • Separate pan, tilt and clockwise rotations
  • Infinite aiming and locking angles
  • No "memory" or "drift"
  • Accommodates speakers with 4-hole mounting patterns, including 2.00" x 4.25" and 2.75" x 5.00"

Allen Products MultiMount MM-017 Specifications:

  • Material: Structural Steel Alloy
  • Finish: Powder Coat
  • Color: Black
  • Design Factor: 10:1 ratio
  • Working Load Limit: 25 lbs (11.3 kg) max.
  • Net Weight: 1.5 lbs (0.7 kg)
  • Shipping Weight: 4 lbs (1.8 kg)
