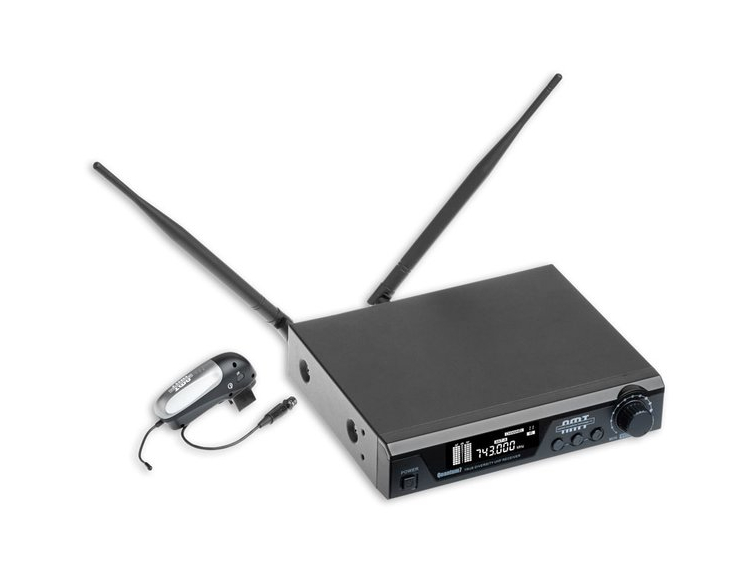

Applied Microphone (AMT) Quantum 7
Wireless Instrument System, Transmitter + Receiver, No Mic

OUR PART #:  QUANTUM7

The Quantum 7 from Applied Microphone Technology is a high-quality diversity wireless system designed for use with musical instruments.
Learn More
Our Price: $559.00
List Price: $699.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Applied Microphone (AMT) Quantum 7
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Quantum 7 from Applied Microphone Technology is a high-quality diversity wireless system designed for use with musical instruments. It provides 100 channels to choose from (region dependent), and is easy to operate while providing professional quality sound. It's compatible with all past and present AMT microphone models that include a disconnect (D.C .T., mics sold separately). Just clip on the transmitter, and you've created an operating environment that's free of belt packs and wires. The receiver is a true diversity design which provides wireless reception up to approximately 100 meters, and is constructed with a rugged metal chassis including both a ¼" as well as XLR output. It offers high-quality transient response with no delay, no background noise, and with multi-level narrow-band filter technology.

Note: This package is only the wireless. Microphone sold separately. If you're looking for both a microphone and wireless system together, see the Q7-LS, Q7-P800, etc.

AMT Quantum 7 Features:

  • True Diversity for maximum distance
  • Transmitter powered by one AA battery
  • Q7 Receiver includes heavy duty metal chassis with rack ears
  • 100 Channels -region dependent- with up to 30 MHz bandwidth
  • Compatible with all AMT instrument microphones
  • Remove transmitter to convert microphone to a wired setup
  • Wireless operation without a bodypack
  • Available for all acoustic instruments. (tpt, t-bone, sax, etc) See optional models (sold separately, contact your Sales Pro for more details)
  • PLL frequency stabilization system
  • 100 preset adjustable frequencies
  • IR sync from receiver to transmitter
  • LCD display of Radio Frequency (RF) and Audio Frequency (AF)
  • EIA standard ½ U metal chassis
  • Rack-mountable
  • Designed specifically for acoustic musical instruments.
  • Large analog-style volume control for quick and easy access

AMT Quantum 7 Specifications:

System

  • Frequency Range: 600-928 MHz
  • Modulation Mode: FM
  • Dynamic Range: >100 dB
  • Frequency Response: 60 Hz - 17 kHz  ± 3 dB
  • Total Harmonic Distortion: <0.5% @ 1 kHz
  • Signal/Noise Ratio: >=105 dB

Receiver

  • Frequency Range: 600-928 MHz
  • Modulation Mode: FM
  • Dynamic Range: >110 dBm (sinad >= 30 dB)
  • Frequency Response: 60 Hz - 17 KHz ± 3 dB
  • Total Harmonic Distortion: 105 dB
  • Power Supply: DC 12V - 18V / 500 mA
  • Dimensions: 210 x 170 x 44mm
  • Audio Output: (1) XLR socket, (1) 6.3mm jack socket

Transmitter

  • Frequency Range: 600-928 MHz
  • RF Power: 10mW
  • Directivity: Cardioid
  • Deviation: ± 48 kHz
  • Antenna: ¼-wave length wire type
  • Battery Voltage: 1.5 V (1x 1.5V AA Battery)
  • Power Consumption: 12-14 hours, battery-dependent
