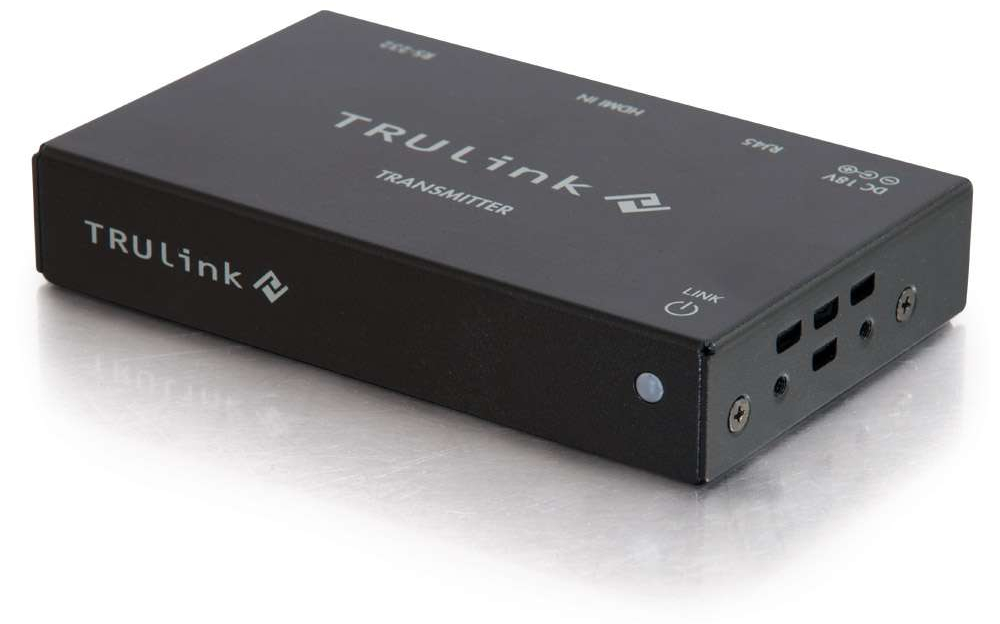

Cables To Go HDMI HDBaseT + Serial RS232 Over Cat5
Extender Box Transmitter (TAA Compliant)

OUR PART #:  29271

C2G HDMI + Serial RS232 Over Cat5 Bottom View
C2G HDMI + Serial RS232 Over Cat5 Back Panel
C2G HDMI + Serial RS232 Over Cat5 Side View

Click a thumbnail to see more images. (5 total)

Our Price: $270.16
List Price: $349.99
You save 23%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Cables To Go HDMI HDBaseT + Serial RS232 Over Cat5
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The HDMI + Serial RS232 over Cat5 extender box from Cables To Go allows HDMI audio/video and Serial RS232 signals to be extended over a single Cat5/Cat5e/Cat6 unshielded twisted pair cable up to 300 ft at a 1080p resolution. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. The transmitter and receiver are interoperable allowing this solution to meet the needs of the installation environment. In addition, this solution utilizes TruChoice™ power, which allows power to be supplied over the Cat5 cable to both the transmitter and receiver from a single power adapter placed at either the transmitter or the receiver end of the solution. HDBaseT technology supports HDCP and allows the Extended Display Identification Data (EDID) signals, i.e. communication of the display's capabilities, to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension. The DB9 Serial RS232 port supports full-duplex data communication at 230Kbps and is fully compatible with all RS232 protocols. Point-to-point or multi-drop data communication is supported.

C2G HDMI HDBaseT + Serial RS232 Over Cat5 Extender Box Transmitter Includes:

  • Transmitter unit
  • Terminal block to DC jack adapter
  • Power adapter
  • Mounting bracket pack with screws
  • Rubber feet pack
  • User manual

C2G HDMI HDBaseT + Serial RS232 Over Cat5 Extender Box Transmitter Specifications:

  • Part Number: 29271
  • Input: (1) HDMI Female, (1) DB9 Female
  • Output: (1) RJ-45 Female
  • Color: Black
  • Weight: 1.794 lbs
  • Warranty: 3 years
  • Signal Specifications:
    • Video signal support - HDMI
    • HDMI Features Supported - HDCP, 3D, Deep color, Dolby + DTS 7.1 Audio, Consumer Electronics Control (CEC)
    • Maximum video resolution - 1080p
    • Maximum extension - 300 ft
    • Recommended category cable - Solid conductor Cat5e or Cat6
  • Power Adapter Specifications:
    • Input voltage - 100~240V
    • Output voltage/Amperage - 18V, 1.0A
    • Cable length - 1.5 m
    • Plug diameter - 4.75 mm
    • Center pin polarity - Positive
  • LED Indicator:
    • Steady blue - The connection to the HDMI display is established
    • Steady green - There is no receiver or HDMI display detected
    • Flashing blue and green - The receiver is detected, but no source or display is detected
