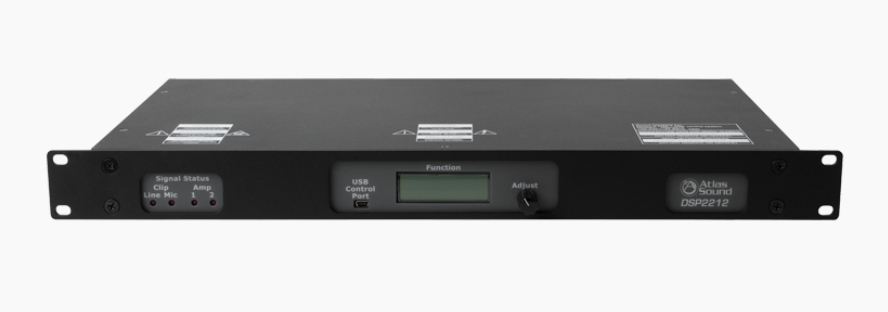

Atlas Sound DSP2212
Digital, Network Sound Masking Processor and 2 Channel Amplifier

OUR PART #:  DSP2212

The AtlasIED DSP2212 is a digital, networkable sound masking processor and 2-channel amplifier.
Learn More
Our Price: $2,111.99
List Price: $2,638.99
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound DSP2212
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AtlasIED DSP2212 is a digital, networkable sound masking processor and 2-channel amplifier.

The AtlasIED DSP2212 digital processor "Privacy" system is a self contained, compact multi-zone digital DSP-GUI controlled processor and digital amplifier capable of simultaneous distribution of masking, paging, and background music signals for use in Industrial, Institutional, Commercial and Government facilities.

The AtlasIED DSP2212 is capable of automatic mixing, set up and administration of all inputs/outputs per zone (channel). This is accomplished via an intuitive ‘simple to use' Graphic User Interface (GUI) managed via a local laptop or desktop computer that is running Microsoft® Windows®. It provides up to x2 channels of independent on-board digital Class-D amplifiers rated at 25W RMS at 70V. It has a pink noise generator which is random and non-repeating up to (215) hours with EQ adjustments programmable on a per zone basis. The DSP's provide dynamic control with independent 1/3 Octave (28) band EQ *(Filter type is Butterworth @ 19dB and Linkwitz-Riley at 24dB) and Parametric EQ 8-band for calibration of all PA and masking signals on a per zone basis. Paging (PA) levels are adjustable in 0.5dB increments per zone on Line Level (Music) and Microphone paging inputs. It provides the ability to set up "All Zone" and "Group zone" pages through the GUI.

AtlasIED DSP2212 Features:

  • (2) Channels of Random Pink Noise Generator Non-Repeating Up to 215 Hours
  • (2) Audio Outputs of 25 Watts RMS Digital Class-D Amplification at 85% Efficiency
  • Multiple Audio Source Inputs for Background Music and Paging
  • On-Board MAC Address for IP Addressability Compatible with DHCP Server
  • Visual Status Front LCD Display for All Major Input and Output Control Functions
  • UL / CUL / FCC and CB (International) Listed

AtlasIED DSP2212 Specifications:

  • Height: 1.75" (44.5 mm)
  • Width: 19" (482.6 mm)
  • Depth: 10" (254 mm)
