Product Overview

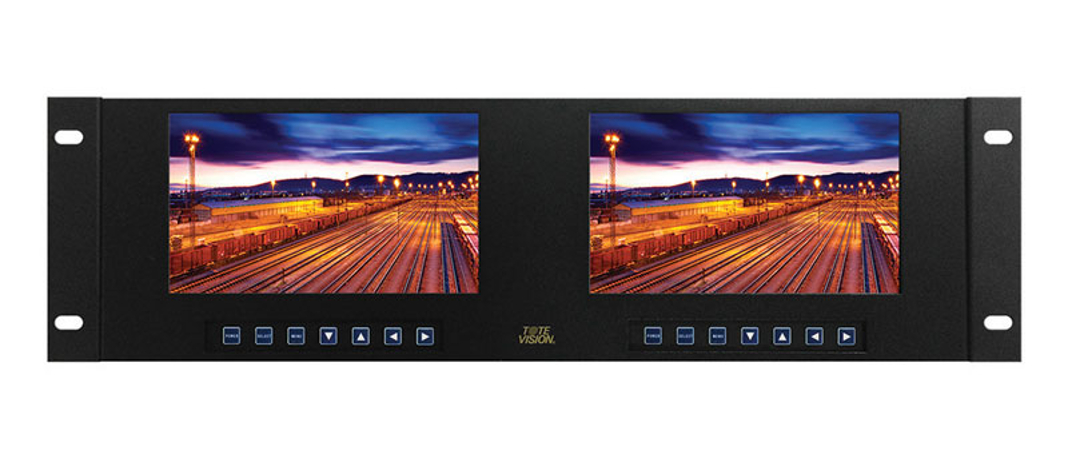

The ToteVision LED-711-4K2 high-definition, dual 7" LCD monitors in a rack-mount are capable of displaying 4K/UHD imagery. These monitors are best suited for broadcast, medical, and pro photography applications.
ToteVision LED-711-4K2 Features:
- LED backlight: brighter picture using less power
- Native 1920 x 1200 resolution displays up to 4K (2096 x 2160) imagery
- Ultra wide viewing angle (89/89/89/89)
- Multiple software features including Peaking Filter (monochrome), Check Field (B/W/R/G/B), Center Mark, Safe Area, Under Scan / Over Scan, Ratio, DSLR Mode, Freeze, Flip (U/D/R/L), Noise Reduction, and Zoom (1.4x – 10x)
- Ultra wide viewing angle (89°/89°/89°/89°)
ToteVision LED-711-4K2 Specifications:
- Mount: 3RU
- Case: Durable Metal
- Display: 7" TFT LCD active matrix
- Resolution: 1920 x 1200
- Native Aspect Ratio: 16:9
- Visible Screen Size: 5.95" x 3.7" (151.2 x 94.5mm)
- Back Light: LED (50K)
- HD Compatible: Yes (displays up to 2160p)
- Anti Glare Coating: Yes
- Brightness: 450 cd/m² (Nit)
- Contrast: 1100:1
- Dot Pitch: 0.07875(H) x 0.7875(V) mm
- Response Time: 10ms Rising / 15ms Falling
- Viewing Angle (L/R/T/B): 89°/89°/89°/89°
- HDMI: x1 Input; supports 720 x 480i/p @59.94/60Hz up to 1920x1080psf @23.93 ~ 60Hz; 3840 x 2160p @24 ~ 30Hz; 4096 x 2160p @24Hz
- Composite: x1 BNC Input; x1 BNC Output; supports NTSC-M/J/4.43; PAL B/G/HID/M/N; SECAM
- Audio: x1 3.5mm Output
- Power: x1 2.1mm DC Input
- Operating Temp: 14° ~ 140°F (-10° ~ 60°C)
- Power Requirements: 12VDC 2A (9VDC ~ 24VDC)
- Power Consumption: = 11 Watts (Max)
- Dimensions: 19" x 5.5" x 1.4" (482.6 x 139.8 x 35.6mm)
- Product Weight: 6.15 lbs (2.79 kg)
