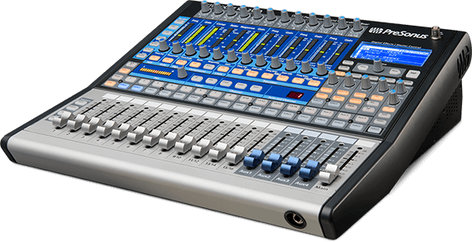

PreSonus StudioLive 16.0.2 USB
16-Channel Performance and Recording Digital Mixer with USB

OUR PART #:  STUDIOLIVE-1602-USB

When mixing a live event or tracking an artist in the studio, you need the ability to work fast.
Learn More
Our Price: $1,099.95
List Price: $1,399.95
You save 21%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

PreSonus StudioLive 16.0.2 USB
Qty:
In Stock

Similar Products

When mixing a live event or tracking an artist in the studio, you need the ability to work fast. The familiar, easy-to-use interface on PreSonus' StudioLive® 16.0.2 USB keeps all critical controls visible and accessible — that is, not buried down in menus or lower-level layers. PreSonus' design philosophy is simple: 1 fader for every mono or stereo channel; 1 output for every bus. To that, add rotary trim controls; easily-accessed, color-coded function buttons; and clearly labeled, individual knobs for EQ and dynamics processing. Its Aux sends all have their own physical controls. Every channel features a big, bright meter display. But don't be fooled by that analog feel: The StudioLive 16.0.2 USB brings with it all the power of modern digital mixing, multitrack recording, wireless remote control, and much more.

The compact 16-channel StudioLive 16.0.2 USB offers 8 mono input channels, 4 stereo channels, and 4 aux buses, each with a high-quality, 60 mm fader, all within a footprint of less than 2 square feet (0.19 square meters). Additionally, you get generous analog I/O, extensive signal processing with physical controls, 12 XMAX Class A solid-state mic preamps, a Talkback input with Class A mic preamp, accurate metering, MIDI control, and an onboard multichannel recording interface. As with all StudioLive mixers, the 16.0.2 USB includes a suite of tightly integrated recording, control, and audio analysis software. Plus it's so compact and lightweight that you can easily hold it in one hand and tuck it under your arm.

PreSonus StudioLive 16.0.2 USB Features:

  • 8 mono mic/line channel inputs, each with:
    • High-headroom Class A XMAX mic preamplifier
    • XLR mic and balanced ¼" line inputs
    • 60mm precision fader
  • 4 stereo line channel inputs, with:
    • High-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)
    • XLR mic inputs (Ch. 9, 11, 13, and 15)
    • Balanced ¼-inch line inputs (Ch. 9 – 16)
    • Unbalanced RCA line inputs (Ch. 13 – 16)
    • 60mm precision fader (4 stereo)
    • (4) Auxiliary buses (pre/post-fader send)
  • 2 Internal FX buses
  • 2 stereo 32-bit digital effects processors with customizable reverb and delay presets
  • Fat Channel signal processing on all channels and buses, with:
    • 3-band semi-parametric EQ (individual band on/off)
    • Full-featured compressor
    • Standard downward expander
    • Limiter
    • Phase reverse (12 mic preamplifiers only)
    • Pan with dedicated 15-LED display
    • Stereo link for input channels and aux buses
    • Highpass filter
  • One 31-band stereo graphic EQ (on main outputs only)
  • 18-in/16-out USB recording interface (24-bit/44.1 kHz and 48 kHz)
    • Compatible with most audio software via ASIO, Windows Audio, Core Audio
  • Scene store and recall
  • Settings can be copied among channels and buses and saved as user presets.
  • Software bundle includes:
    • PreSonus® Studio One® Artist digital audio workstation for Mac® and Windows ®
    • PreSonus Capture™ live-recording software for Mac and Windows
    • PreSonus UC Surface mixer-control software for Mac, Windows, Android™, and iPad®
    • Free downloadable PreSonus QMix®-UC software for iPhone®/iPod touch® and Android™ provides wireless remote control of aux mixes
  • Lockout mode protects your settings from meddlers and accidents
  • MIDI Control Mode provides control over:
    • Scene and FX Preset recall
    • Main Volume, FXA, and FXB output levels
    • FXA and FXB assign/unassign to Mains

PreSonus StudioLive 16.0.2 USB Technical Specifications:

Microphone Preamp

  • Type: XLR Female, Balanced
  • Frequency Response to Direct Output (at unity gain): 20 Hz – 20 kHz, 0 / -0.5 dBu
  • Frequency Response to Main Output (at unity gain): 20 Hz – 20 kHz, ±0.5 dBu
  • Input Impedance (Balanced): 1 kOhm
  • THD to Direct Output (1 kHz at unity gain): <0.005%, +4 dBu, 20 Hz – 20 kHz, unity gain, unwtd
  • THD to Main Output (1 kHz at unity gain): 0.005%, +4 dBu, 20 Hz – 20 kHz, unity gain, unwtd
  • EIN to Direct Output: +125 dB unwtd, +130 dB A-wtd
  • S/N Ratio to Direct Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -102 dB
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -95 dB
  • Common Mode Rejection Ratio (1 kHz at unity gain): +65 dB
  • Gain Control Range (± 1 dB): -16 dB to +67 dB
  • Maximum Input Level (unity gain): +16 dBu
  • Phantom Power (± 2 VDC): +48 VDC

Line Inputs, Balanced

  • Type: ¼" TRS Female, balanced mono
  • Frequency Response to Direct Outputs (at unity gain): 10 Hz – 20 kHz, 0 / -0.5 dBu
  • Frequency Response to Main Outputs (at unity gain): 20 Hz – 20 kHz, 0/-0.5 dBu
  • Input Impedance: 10 kOhm
  • THD to Direct Output (1 kHz at unity gain): <0.0007%, +4 dBu, 20 Hz – 20 kHz, unity gain, unwtd
  • THD to Main Output (1 kHz at unity gain): <0.005%, +4 dBu, 20 Hz – 20 kHz, unity gain, unwtd
  • S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd): -105 dB
  • S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd): -95 dB
  • Gain Control Range (± 1 dB): -20 dB to +20 dB
  • Maximum Input level (unity gain): +22 dBu

Line Inputs, Unbalanced

  • Type: RCA Female, unbalanced (stereo pair)
  • Maximum Input Level: +22 dBu

Main Outputs

  • Type: XLR Male, balanced (stereo pair); ¼" TRS Female, balanced (stereo pair)
  • Rated Output Level: +24 dBu
  • Output Impedance: 100 Ohms

Aux Outputs

  • Type: ¼" TRS Female, balanced (mono)
  • Rated Output Level: +18 dBu
  • Output Impedance: 100 Ohms

Monitor Outputs

  • Type: ¼" TRS Female, balanced (stereo pair)
  • Rated Output Level z: +18 dBu
  • Output Impedance: 100 Ohms

System Crosstalk

  • Input to Output (Ref = +4 dBu, 20 Hz – 20 kHz, unwtd): -90 dBu
  • Adjacent Channels (Ref = +4 dBu, 20 Hz – 20 kHz, unwtd): -87 dBu

Noise Gate (Expander)

  • Threshold Range: -84 dB to 0 dB
  • Attack Time: Adaptive (0.2 – 2.5 ms)
  • Release Time: 70 ms
  • Expander Attenuation Range: 2:1

Compressor

  • Threshold Range: -56 dB to 0 dB
  • Ratio: 1:1 to 14:1
  • Response Time: (Attack/Release 0.2 ms / 1.0s (“Tight”) to 180 ms / 1.0s (“Smooth”)
  • Auto Attack and Release: Attack = 10 ms, Release = 150 ms
  • Curve Types: Hard and soft knee

EQ

  • Type: 2nd-order shelving filter (Q = 0.55)
  • Low (Low-pass or Bandpass): 36 to 465 Hz, ±15 dB
  • Mid: 260 Hz to 3.5 kHz, ±15 dB
  • High (High-pass or Bandpass): 1.4 kHz to 18 kHz, ±15 dB

Digital Audio

  • Host Interface: USB 2.0
  • ADC Dynamic Range (A-wtd, 48 kHz): 118 dB
  • DAC Dynamic Range (A-wtd, 48 kHz): 118 dB
  • Internal Processing: 32-bit, floating point
  • Sampling Rate: 44.1, 48 kHz
  • A/D/A Bit Depth: 24 bits
  • Reference Level for 0 dBFS: +18 dBu

Clock

  • Jitter: <20 ps rms (20 Hz – 20 kHz)
  • Jitter Attenuation: >60 dB (1 ns in ˜ 1 ps out)

Power

  • Connector: IEC
  • Input-Voltage Range: 100 to 240 VAC (factory-configured for country of destination)
  • Power Requirements (continuous): 100W

Physical

  • Dimensions (L x W x Max. H): 15.56" x 16" x 5.5" (397 x 406 x 140mm)
  • Weight: 20 lbs.

Computer system requirements:

Below are the minimum computer-system requirements for UC Surface, QMix-UC, and Studio One®.

Mac

  • Mac® OS X 10.8.5 64-bit or later
  • Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
  • 4 GB RAM (8 GB or more recommended)

Windows

  • Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
  • Intel Core 2 Duo (Intel Core i3 or faster recommended)
  • 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

  • USB 2.0 port
  • Internet connection
  • Internal or external 7200 RPM storage drive highly recommended
  • 30 GB hard disk space
  • Monitor with 1366x768 resolution

iOS

  • iOS 9.3 or later
  • iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2

Android

  • Android™ 5.0 (Lollipop) or later
  • Android smartphone (QMix-UC)
  • Android tablet (8-inch) with 1024x768 resolution (UC Surface)

Notes: The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.

Note: As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
