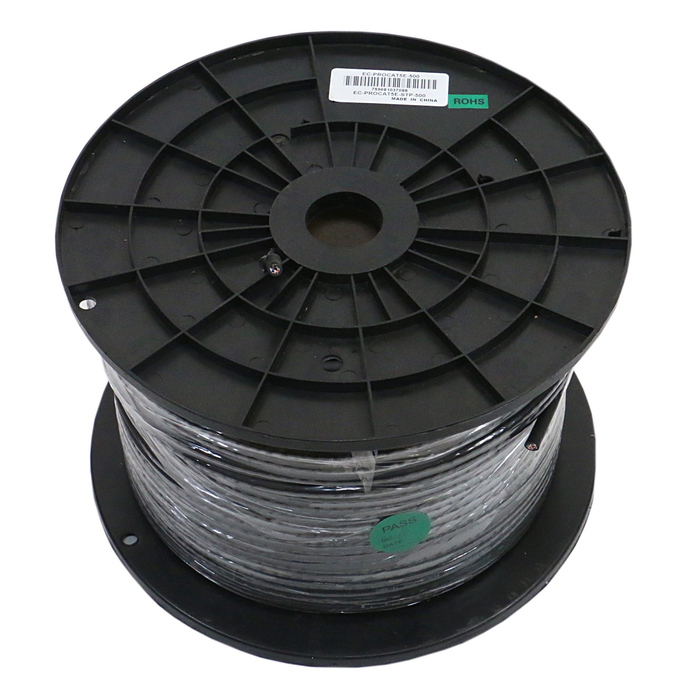

Elite Core Audio PROCAT5E-S-500
Tactical Shielded Soft CAT5E Bulk Cable, 500 ft Spool

OUR PART #:  PROCAT5E-S-500

Elite Core's PROCAT5E-S cable is fully shielded and features a super soft outer rubber jacket that allows it to lay flat and makes it very easy to handle.
Learn More
Our Price: $393.99
List Price: $639.99
You save 38%!
Write the first review.
Elite Core Audio PROCAT5E-S-500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Elite Core's PROCAT5E-S cable is fully shielded and features a super soft outer rubber jacket that allows it to lay flat and makes it very easy to handle. This tactical shielded ethernet cable is tour-grade rugged and tough.

Elite Core PROCAT5E-S-500 Features:

  • Shielded tactical CAT5E cable
  • Super soft outer rubber jacket
  • Flexible design provides for flat lay and smooth roll-up
  • Rugged build protects cable from damage caused by external force or roll-overs
  • Perfect for mobile audio, DMX, video, and LED screens

Elite Core PROCAT5E-S-500 Specifications:

  • Type: PROCAT5E STP tactical shielded twisted pair
  • Jacket Color: Black
  • Outside Diameter: 6.5 mm
  • Conductor Count: 4 pair
  • Construction Details: (7/0.20+PE0.99)*4 PAIR+ DW7/0.20TC+AL- FOIL+PVC
  • Main Conductor Gauge: 24 AWG
  • Conductor D.C.R. Ohm/1Km: <86.44
  • Nominal Capacitance ~ Conductors: <36.4 pF/m
  • Nominal Capacitance ~ Pairs: <54.3 pF/m
  • Impedance: 100 Ohms
  • Voltage Breakdown: 300V
  • Optimal Working Temperature: -4°F to 140°F
  • Max Working Temperature: -40°F to 158°F
