Juice Goose CQ 1520-RX
AC Power Sequencer with Surge Protection

OUR PART #:  CQ1520-RX

The Juice Goose CQ 1520-RX combines reliable AC power sequencing with the proven performance of  the Juice Goose RX Series surge protection and filtration.
Learn More
Our Price: $589.00
List Price: $695.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Juice Goose CQ 1520-RX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Juice Goose CQ 1520-RX combines reliable AC power sequencing with the proven performance of  the Juice Goose RX Series surge protection and filtration.

Each CQ Series product contains the circuitry needed for sequenced activation and plug-and-play coordination with other CQ Series models or RC Series accessories. All power up and power down sequences are performed automatically. Commands are passed from one CQ Series unit to the next.

The CQ 1520-RX is a single space rack mount device featuring seven AC power outputs on the rear of the chassis with a combined rating of 20 amps. One output is unswitched. The remaining six outputs are grouped into three Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have premium, RX Series surge protection and line noise filtration.

Because the CQ 1520-RX is a self contained sequencing circuit, it can be the master or slave in a power sequencing system. Eight wire RJ-45 cable can be connected to this unit's Signal Input and/or Signal Output connectors to link it's operations with other CQ or control devices.

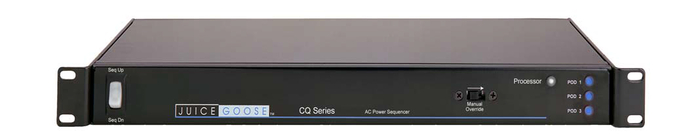

This product features LEDs on the front of the chassis for real time monitoring of the sequencing functions. Individual LEDs light when power is applied to its power pod.

Juice Goose CQ 1520-RX Specifications:

  • Chassis: Tour Class™ 16 gauge steel with 11 gauge rackmount brackets
  • Dimensions (HxWxD): 1.75" x 19" x 7"
  • Weight: 10 lbs
  • Circuit Breaker: 20A
  • AC Power Filtration @ 30 MHz: 80dB common mode, 60dB normal mode
  • Transient: Energy Absorption: 1,020 Joules
  • Max AC Surge Let Through: 10V normal mode, 1/2V common mode (ground)
  • Number of Sequence Events: 3
  • Power Input (7 ft power cord): 12/3 SJ with 5/20P (requires a 5/20R receptacle)
  • Power Output: 6 sequenced 5/20R and one unswitched 5/15R
  • Input Voltage: US standard (120 VAC @ 60 Hz)
  • Signal Connections: RJ-45, 8 wire cable
  • Monitor Features: LEDs correlate to power output and relay operation
