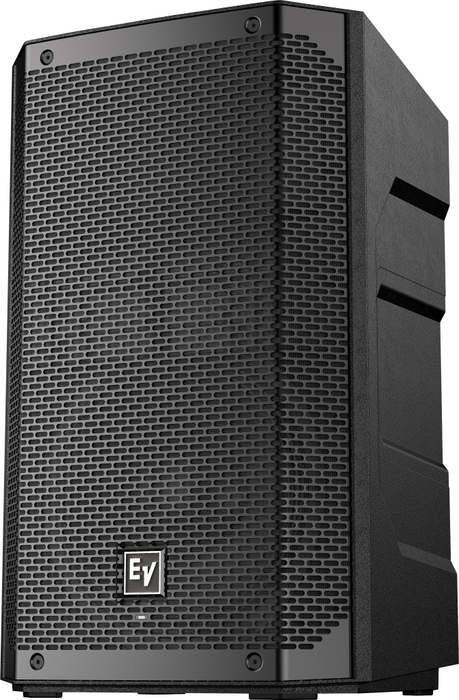

Electro-Voice ELX200-10P
10" 2-Way Powered Speaker

OUR PART #:  ELX200-10P

The Electro-Voice ELX200-10P is a 10-inch 2-way powered loudspeaker.
Learn More
Our Price: $549.00
List Price: $960.75
You save 43%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice ELX200-10P
Qty:
In Stock

Similar Products

The Electro-Voice ELX200-10P is a 10-inch 2-way powered loudspeaker.

ELX200-10P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (10-inch EVS-10M woofer coupled with a DH-1C 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.

The QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.

Electro-Voice ELX200-10P Specifications:

  • Available Color: Black
  • Connector Type: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
  • Coverage (Nominal -6 dB) H: 90°
  • Coverage (Nominal -6 dB) V: 60°
  • Crossover Frequency: 1800Hz
  • Depth: 12.56" (319mm)
  • Enclosure Material: Polypropylene Composite
  • Family: ELX200
  • Frequency Range (-10 dB): 53 Hz - 20 kHz
  • Frequency Response (-3 dB): 59 Hz -18 kHz
  • Grill: 18 AWG steel with powdercoat
  • Height: 20.91" (531mm)
  • HF Transducer: DH-1C 1-inch titanium compression driver
  • LF Transducer: EVS-10M 254 mm (10 in)
  • Max. SPL/1m (calc): 130dB
  • Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
  • Power Rating: 1200W
  • Powered or Passive: Powered
  • Shipping Weight: 34.39lbs (15.6 kg)
  • Speaker Type: Full-Range
  • Suspension: (3) M10 suspension points
  • Weight Net: 29.76 lbs (13.5 kg)
  • Width: 12.99" (330 mm)
  • Woofer Size: 10 inch
