Radio Design Labs SF-NL2
Network to Audio Interface, Dante

OUR PART #:  SF-NL2

The Radio Design Labs SF-NL2 is a line-level interface that converts two Dante network audio channels to two balanced audio outputs on XLR connectors.
Learn More
Our Price: $277.48
List Price: $398.42
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs SF-NL2
Qty:
In Stock

Similar Products

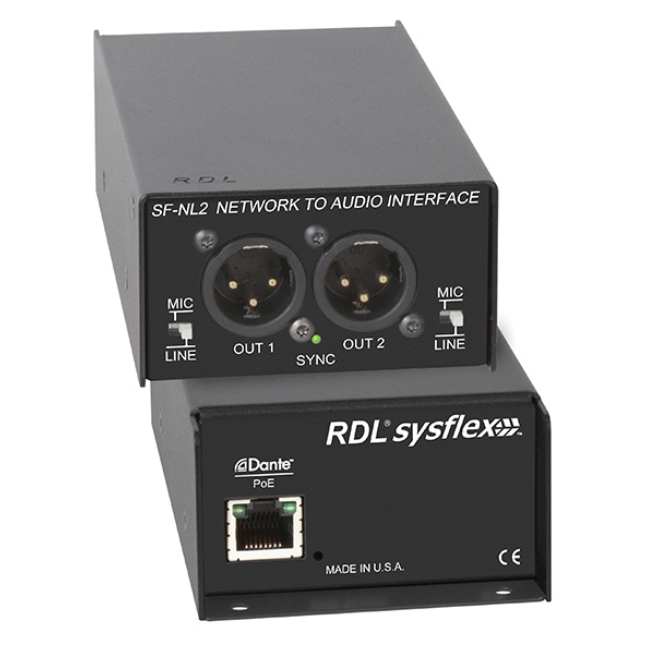

The Radio Design Labs SF-NL2 is a line-level interface that converts two Dante network audio channels to two balanced audio outputs on XLR connectors. Each channel provides +4 dBu balanced for a network digital audio level of -20 dBFS. Each output is equipped with a selector to set the output to line level or attenuate the output by 50 dB to mic level. Special software is not required to configure the module. The SF-NL2 is a professional grade product for studio quality fidelity and low noise performance.

The SF-NL2 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

The SF-NL2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems.

Radio Design Labs SF-NL2 Features:

  • Converts Two Dante Network Audio Signals to Balanced Analog
  • Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Each Output Switch-Selectable for Mic or Line Level
  • Normal (-20 dBFS) Line-Level Output is +4 dBu with 20 dB Headroom
  • Microphone Output Level is Attenuated 50 dB
  • Each Output is Protected Against Phantom Voltage up to 48 Vdc
  • Special Software Not Required for Module Setup
  • Exceptional Low-Noise and Low-Distortion Performance
  • High Resolution 24 Bit Digital to Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb Audio Performance
  • LED Indicator for Valid Power and Network Sync
  • Operation from PoE Power (Class 0, IEEE 802.3af)
  • Equipped for SysFlex™ Rack Mounting or Surface Mounting

Radio Design Labs SF-NL2 Specifications:

  • Network Connector: RJ45 with Link and Speed indicators
  • Digital Audio Ethernet Protocol: Dante
  • Transmission Rate: 100 Mbps
  • Sample Rates Supported: 44.1 kHz, 48 kHz (default),88.2 kHz, 96 kHz
  • Bit Depth Supported: 24 bits
  • Audio Operating Level: -20 dBFS = +4 dBu
  • Reference Level: 0 dBFS = +24 dBu
  • Outputs (2):  XLR (male)
  • Output Level (operating): +4 dBu nominal LINE levelbalanced; -45 dBu nominal MIC level (into 150 O)
  • Output Level (maximum): +24 dBu LINE level
  • Output Impedance: < 100 O balanced
  • Selector per output: Mic/Line
  • Frequency Response: 20 Hz to 20 kHz (+/- 0.5 dB)
  • THD+N: < 0.1% (20 Hz to 20 kHz,+4 dBu/-20 dBFS);0.015% at 1 kHz (typ)
  • Noise: < -75 dB (below +4 dBu); < -95 (below +24dBu)
  • Crosstalk: Below Noise Floor (1 kHz, output tooutput); < -60 d5 dB (20 kHz)
  • Headroom above +4 dBu/-20 dBFS: 20 dB
  • Indicators (3): Ethernet Link and Speed (2, rearpanel); Sync (front panel)
  • Ambient Operating Environment: 0° C to 50° C
  • Power Requirement: PoE Class 0, IEEE 802.3af
  • Specification Conditions: Gain/Level: ± 1 dB
  • Dimensions: 2.79" (7.09 cm) W; 1.68" (4.27 cm) H;5.77" (14.66 cm) D
  • Package Type: Cardboard Box
  • Package Dimensions: 7 x 4.375 x 2.25 in.
  • Shipping Weight: 1.1 lbs.
  • WEEE weight: 0.885 lbs.
