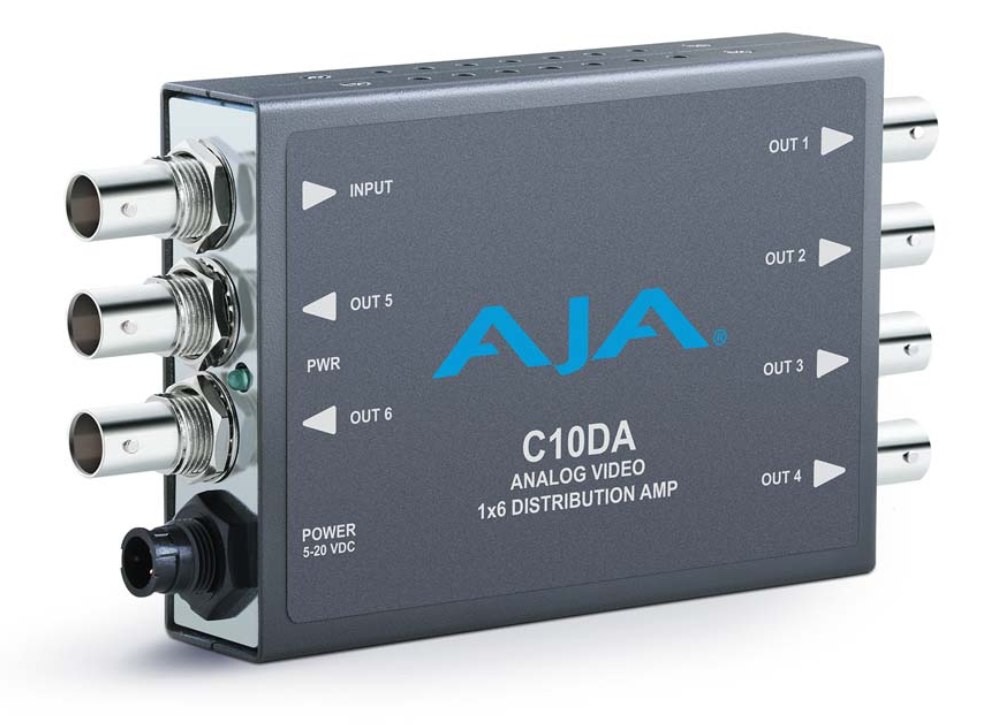

AJA Video Systems Inc C10DA
Analog Video 1x6 Distribution Amplifier with NTSC & PAL Support

OUR PART #:  C10DA

Our Price: $175.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc C10DA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The C10DA from AJA Video Systems is a 1x6 Analog Distribution Amplifier with support for NTSC and PAL offering the ability to distribute multiple copies of the incoming signal or extend content of composite video with gain adjustment to compensate for long cable runs where needed. The C10DA can also be used to DA Tri-Level sync in an HD facility when a sync signal is fed externally into the Video Input.

AJA Video Systems Inc C10DA Features:

  • Compact 1 x 6 Analog Distribution Amplifier:
    • NTSC
    • PAL
  • May be used to distribute tri-level sync when a syync signal is fed into the Video Input for HD workflows
  • Low Cost
  • 5 year warranty

AJA Video Systems Inc C10DA Specifications:

  • Formats:
    • NTSC
    • PAL
    • Bi-level Reference
    • Tri-level Reference
    • AES3-id
    • LTC
  • Inputs: 1 Analog, Differential, 1 x BNC
  • Outputs: 6 Analog, 6 x BNC
  • Termination: 75 Ohms or nonterminated
  • Video Bandwidth: 0 – 6 MHz +/- 0.1dB
  • Gain: -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/-0.3dB
  • Diff Gain: 0.15%, not load dependent
  • Diff Phase: 0.1°, not load dependent
  • H/V Tilt: < 0.1%
  • Response Variation: < 0.1dB 1 to 6 loads
  • Coupling: DC
  • Max Common Mode Signal: 10Vp-p
  • Return Loss: > 35dB to 6 MHz all inputs and outputs
  • Output Isolation: >40dB
  • User Controls:
    • External Dipswitch
    • Termination
    • Gain
  • Size (WxDxH): 5.8" x 3.1" x 1.0" (147 x 79 x 25mm)
  • Weight: 0.8 lb (0.3 kg)
  • Power: 5VDC Regulated, 2 Watts, power supply required, included with purchase
  • Environment:
    • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
    • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
