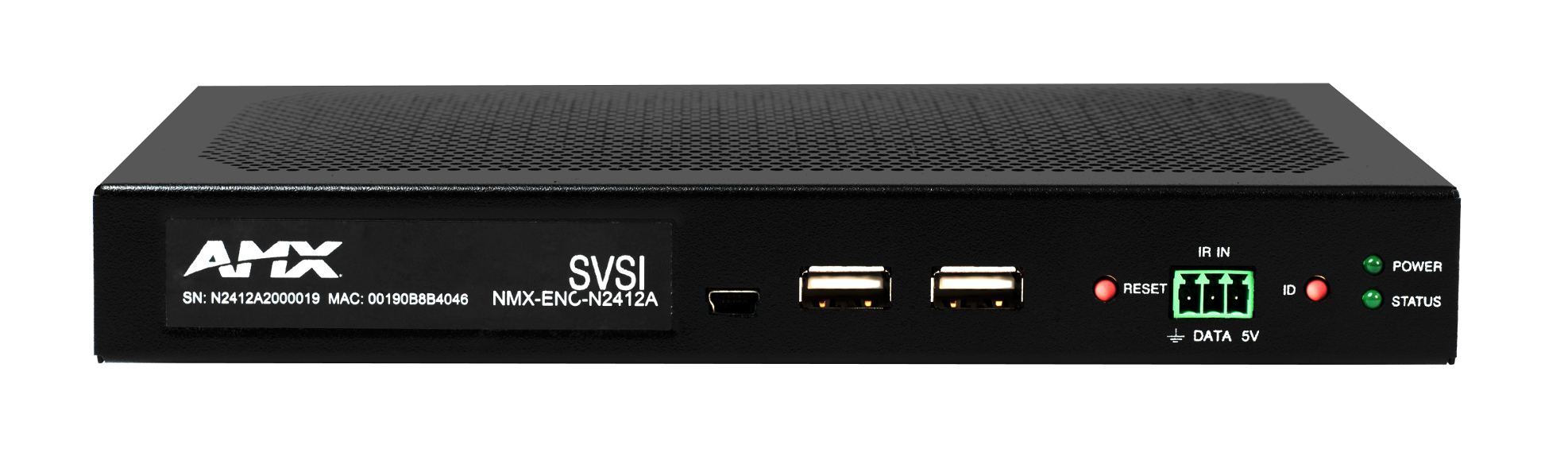

AMX NMX-ENC-N2412A
JPEG 2000 4K60 4:4:4 UHD Video Over IP Encoder

OUR PART #:  NMX-ENC-N2412A

The NMX-ENC-N2412A from AMX by HARMAN is a JPEG 2000 4K60 4:4:4 Encoder which is one of AMX's 4K Ultra HD Over IP product offerings.
Learn More
Our Price: $1,800.00
List Price: $3,000.00
You save 40%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AMX NMX-ENC-N2412A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The NMX-ENC-N2412A from AMX by HARMAN is a JPEG 2000 4K60 4:4:4 Encoder which is one of AMX's 4K Ultra HD Over IP product offerings. What makes the NMX-ENC-N2412A unique is that it's the first low-latency Encoder to distribute video at resolutions up to 4K60 4:4:4 over Gigabit Ethernet networks. Utilizing JPEG2000 encoding, the N2412A and N2422A encoders and decoder (N2400 Series) deliver cinema quality video with just two frames of latency. Furthermore, these products support HDMI 2.0 and HDCP 2.2, offering increased compatibility with 4K sources and displays.

The N2400 Series of encoders and decoders use the same control APIs, software, and web interfaces as the existing Networked AV products, which have been optimized to market needs as a result of years of field experience. Common applications for the NMX-ENC-N2412A is for situations where 4K60 video is popular; such as in casinos, sporting arenas, museums and other venues where high-resolution large-scale video distribution is required. The N2400 Series is also ideal for lecture halls, university campus distribution, active learning spaces, or anywhere viewers with a discerning eye will be expecting the beauty of 4K60.

AMX NMX-ENC-N2412A Features:

  • 4K60 4:4:4 Support – The N2400 Series can be used to support today’s 4K content without modifying the color space or reducing the frame rate.
  • Operates over Gigabit Ethernet – Distribute video over cost effective Gigabit Ethernet switches using Cat5 cable already installed in a location. This also allows for greater switching scalability vs. a solution that depends on 10 GbE.
  • Low Latency – Distribute video over an IP network with just two frames of latency which is nearly imperceptible.
  • HDMI 2.0 and HDCP 2.2 Support – By incorporating HDMI2.0 and HDCP 2.2, the N2400 Series products are compatible with all the latest 4K sources and displays.
  • PoE+ Powered – The N2400 Series can operate using PoE+ power from the network switch, simplifying installation and reducing installation cost.
  • Native NetLinx – Simplifies integration with AMX control to reduce cost of installation.

AMX NMX-ENC-N2412A Specifications (parital):

  • Video:
    • Digital Video Input: HDMI, DVI-D, Dual-Mode DisplayPort (DP++), RGB/YUV* (*DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter)
    • Analog Video Input: HD-15 VGA, Component* (*Component is supported through a passive adapter)
  • Video Output:
    • Network video over Ethernet via RJ45 port or fiber via 1G SFP port, HDMI, DVI-D* (*DVI-D is supported through a passive adapter)
    • 30 – 800 Mbps depending on resolution and content.
    • Formats: HDMI, DVI-D (through adapter), HDCP content protection support, RGBHV, YPbPr
  • Progressive Input Resolutions:
    • HDMI and DVI (Progressive):
      • Pixel clock between 27 MHz - 600 MHz
      • Minimum resolution of 720x480p
      • Maximum horizontal resolution of 4096 or a vertical resolution of 2160
      • Common acceptable resolutions include: 720x480 @60Hz (480p60), 1024x768p60, 1280x720 @60Hz (720p60), 1600x1200 @60Hz, 1920x1080 @60Hz (1080p60), 2560x1440 @60Hz (QHD60), 3840x2160 @30Hz (UHD30 aka 4K30), 4096x2160 @30Hz (DCI 4K30), 3840x2160 @60Hz (aka 4K UHD or 4K60), 4096x2160 @60Hz (DCI 4K)
  • Interlaced Input Resolutions:
    • HDMI and DVI (Interlaced): 1920x1080 @50Hz (1080i50), 1920x1080 @60Hz (1080i60)
  • Analog Input Resolutions:
    • VGA: 640x480 @60Hz, 720x480 @60Hz (480p), 20x576 @50Hz (576p), 800x600 @60Hz, 848x480 @60Hz, 1024x768 @60Hz, 1280x720 @50Hz (720p50), 1280x720 @60Hz (720p60), 1280x768 @60Hz, 1280x800 @60Hz, 1280x960 @60Hz, 1280x1024 @60Hz, 1360x768 @60Hz, 1366x768 @60Hz, 1400x1050 @60Hz, 1440x900 @60Hz, 1600x1200 @60Hz, 1680x1050 @60Hz, 1920x1080 @50Hz (1080p50), 1920x1080 @60Hz (1080p60)
    • Component: 480p, 576p, 720p50, 720p60, 1080p24, 1080i50, 1080i60, 1080p30, 1080p50, 1080p60

NOTE: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz

  • Output Resolutions: Matched to inputs (no scaling)
  • Analog-To-Digital Conversion: 8-bit 300 MHz per each of three color channels

NOTE: The N2412A Encoder does not accept Composite or S-Video (YC)

  • Audio:
    • Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
    • Output Signal Types:
      • Ethernet, Embedded audio on HDMI or DVI-D (through adapter)
      • HDMI output refers to pass-through video on the HDMI OUT port
      • HDMI Audio Formats: 8ch PCM
      • Analog Audio Format: Stereo 2-channel
      • Analog-To-Digital Conversion: 16-bit 48 kHz
  • Latency:
    • Latency: 17-ms at 60 fps

NOTE: To calculate an end-to-end latency value, add the given Encoder latency (shown above) to your Decoder’s latency (which is provided in the Decoder’s Specifications sheet)

  • Communications:
    • Ethernet - PO: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
    • Ethernet - P1: 1 Gbps SFP port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling)
    • HDMI: HDCP, EDID management
  • Power Supply:
    • Power Supply, External, Not included: 3.0 Amp @ 12 Volts DC; 100-240 Volts AC power supply; not included in shipment. NMX-ACC-N9313 (FGN9313)
    • Power over Ethernet (PoE+), External:
    • Can be powered via a PoE+-capable switch or other equipment with a PoE+ source
    • Conforms to IEEE 802.3at Type 2
  • Environmental:
    • Temperature: 32° to 104°F (0° to 40°C)
    • Humidity: 10% to 90% RH (non-condensing)
    • Heat Dissipation: Up to ~102 BTU/hr
  • General:
    • Dimensions (HWD): 1.05” x 7.888” x 5.5” (2.67 cm x 20.04 cm x 13.8 cm)
    • Weight: 1.65 lbs (0.75 kg)
    • Mounting Options: Stand alone, surface mount, wall mount, or rack mount
    • Surface and wall mounting requires (not included):
    • NMX-ACC-N9101 (FGN9101), Mounting Wings for SVSI N-Series Encoders and Decoders
    • Rack mounting requires one of the following (not included):
    • NMX-ACC-N9102 (FGN9102), 1RU Rack Shelf for Two Side-by-Side for SVSI N-Series Encoders and Decoders
    • NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
    • Regulatory Compliance: FCC, CE, and NTRL
  • Recommended Accessories:
    • NMX-ACC-N9101 (FGN9101), Mounting Wings for SVSI N-Series Encoders and Decoders
    • NMX-ACC-N9102 (FGN9102), 1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders and Decoders
    • NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units

NOTE: For full specifications and additional info, please refer to the documentation tab above.
