Blackmagic Design BDLKMINIREC4K
DeckLink Mini Recorder 4K

OUR PART #:  BDLKMINIREC4K

The DeckLink Mini Recorder 4K from Blackmagic Design is a low profile PCI Express capture card...
Learn More
Our Price: $185.25
List Price: $195.00
You save 5%!
Be the first to review.
Blackmagic Design BDLKMINIREC4K
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

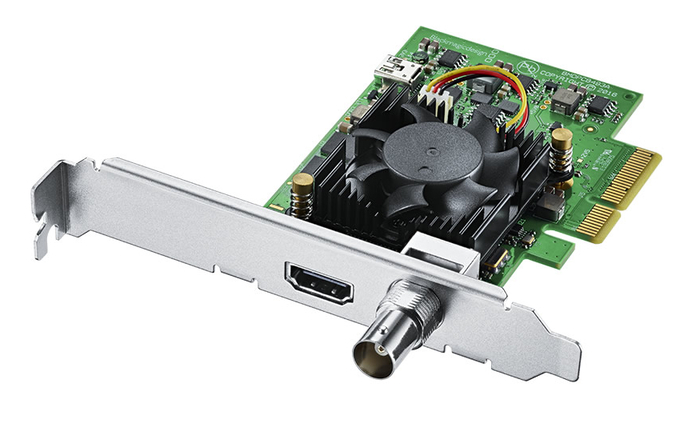

The DeckLink Mini Recorder 4K from Blackmagic Design is a low profile PCI Express capture card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can record all formats up to 2160p30 on your computer! The SDI and HDMI inputs automatically detect and switch between all video formats. You even get high dynamic range recording and metadata over HDMI. The DeckLink Mini Recorder 4K is perfect for integrating into mobile live capture environments, broadcast trucks and more! You can even develop your own custom capture solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.

DeckLink Mini Recorder 4K Includes:

  • DeckLink Mini Recorder 4K
  • Low profile slot bracket
  • SD card with software and manual

DeckLink Mini Recorder 4K Specifications:

  • Model: BDLKMINIREC4K
  • Connections:
    • SDI Video Inputs: 1 x 10-bit SD/HD/Ultra HD switchable
    • SDI Audio Inputs: 16 channels embedded in SD, HD, Ultra HD.
    • HDMI Video Inputs: 1 x HDMI 2.0a connector.
    • HDMI Audio Inputs: 8 Channels embedded in SD, HD, Ultra HD.
    • Computer Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
  • Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2,Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAMHD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ,Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit4:2:2, Uncompressed 10-bit 4:2:2.
  • Software:
    • Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
    • Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
    • Physical Installation: PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots.

NOTE: Please check the Blackmagic Design Support pages to see the full system requirements.

  • Software Applications:
    • DaVinci Resolve
    • Premiere Pro Icon Adobe Premiere Pro CC
    • Avid Media Composer Icon Avid Media Composer
    • Photoshop Icon Adobe Photoshop CC
    • Other supported applications include:
      • Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D.
  • Standards:
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards:
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    • 1080i50, 1080i59.94, 1080i60
  • 2K Video Standards (SDI Only):
    • 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
    • 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF
  • Ultra HD Video Standards: 2160p23.98, 2160p24,2160p25, 2160p29.97, 2160p30
  • 4K DCI Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p*

NOTE: * SDI Only

  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M,SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closedcaptioning
  • Audio Sampling: Television standard sample rate of 48kHz and 24 bit.
  • SDI Video Sampling: 4:4:4 & 4:2:2
  • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in allmodes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes.
  • Color Space: REC 601, REC 709
  • HDMI Video Sampling: 4:4:4, 4:2:2 & 4:2:0
  • HDMI Configuration: HDMI 2.0a supports Deep Color andHDR.
  • HDMI Color Precision: Up to 12-bit (Deep Color)
  • Multiple Rate Support: HDMI and SDI video connectionsare switchable between SD/HD/2K and 4K.
  • Copy Protection: HDMI input is unable to capture fromcopy protected HDMI sources. Always confirm copyright ownership before captureor distribution of content.
  • Processing:
    • Colorspace Conversion: Hardware based real time.
    • HD to SD Down Conversion: Software based up conversion during video capture.
    • HD Up Conversion: Software based up conversion from SD to HD on capture. Selectable between 4:3 pillarbox or 16:9 anamorphic.
  • Operating Systems:
    • Mac:
      • Mac OS X 10.11 El Capitan, macOS 10.12 Sierra or later.
    • Windows: Windows 7, 8.1 and 10, all 64-bit.
    • Linux: Linux
  • Power Requirements:
    • Power Consumption: 8 Watts
  • EMC Certifications: FCC, CE and C-Tick
  • Physical Specifications:
    • Depth: 4.70 in
    • Weight: 3.17 oz.
  • Environmental:
    • Operating Temperature: 41° to 104° F (5° to 40° C)
    • Storage Temperature: -4° to 113° F (-20° to 45° C)
    • Relative Humidity: 0% to 90% non-condensing
