Ashly NE24.24M-4x16
Matrix Processor Networkable, 4 IN, 16 OUT

OUR PART #:  NE24.24M-4x16

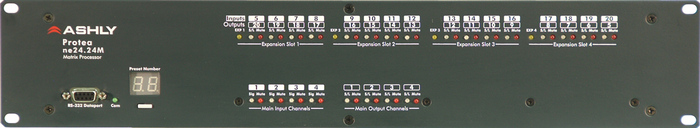

Note: Image shown is for display purposes only. For more information please contact your Full Compass Sales Pro.
Learn More
Our Price: $2,600.00
List Price: $3,250.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ashly NE24.24M-4x16
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

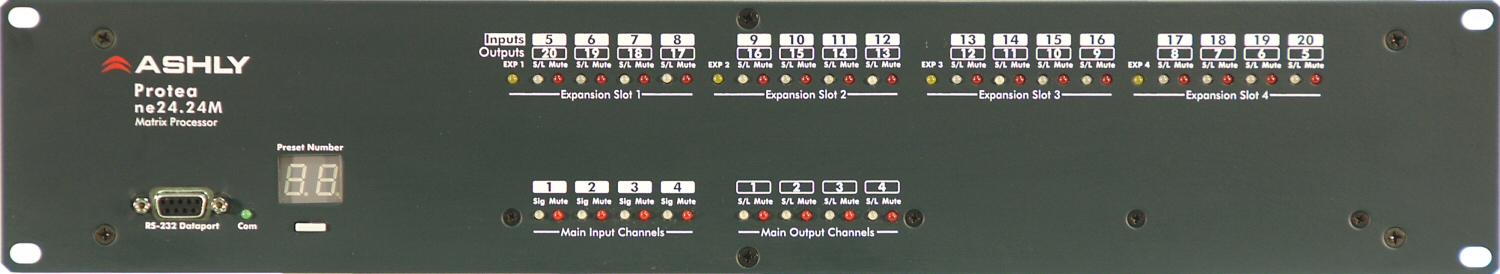

Note: Image shown is for display purposes only. For more information please contact your Full Compass Sales Pro.

Connecting and controlling an audio processor for networked systems has now been simplified with Ashly’s NE-Series Protea ne24.24M digital signal processor. This Network Enabled (NE) processor offers ease of use, setup and control using standard 10/100 Ethernet protocol and Protea NE Software. No special outboard control units are needed.

The ne24.24M Matrix Processor uses modular expansion cards to provide up to twenty-four channels of audio matrixing and processing. The base unit offers a four-input/four-output configuration. Each input and output expansion card has an individual DSP processor allowing you to expand the base unit’s total inputs or outputs four channels at a time. These cards are easily installed in the field without the need to reprogram the device.

Matrixing allows you to route any input to any output and control individual levels once they have been assigned. Fixed path architecture and extensive processing power per channel will reduce the amount of time it takes to set up your system. All programming is accomplished using Ashly’s Protea NE Software on a PC platform. No front panel controls and multi-level software security assures you a tamperproof audio system. Input channel processing blocks include Mic Preamp with Phantom Power, Gain, Delay, fifteen EQ Filters, Gate, Autoleveler and Ducker. Inputs may be configured as either mic or line level. Output channel processing blocks consist of a Cross Point Mixer, HPF/LPF, Delay, fifteen EQ Filters, Gain and Limiter. The cross point mixer in the output section allows you to route any input to any output at any  level and mute any input at any output without affecting the true input configuration. The HPF/LPF block offers Bessel, Butterworth and Linkwitz-Riley filters with 12, 18, 24 and 48dB/octave slopes.

Whether you are designing or installing a system for corporate boardrooms, restaurants, courtrooms, houses of worship, left/center/right theatres, auditoriums or conference centers, the Protea ne24.24M will more than satisfy your requirements for any zoned system requiring input/output matrixing with signal processing.

Ashly ne24.24M Features:

  • 10/100 Ethernet and RS-232 computer interface is standard
  • Extensive DSP Available
  • Easy and intuitive user interface
  • Mic/Line inputs
  • 24-bit A/D–D/A audio resolution
  • 24-bit/150 MHz DSPs
  • Up to 24 channels of audio processing
  • 4x4 base unit configuration
  • Expand inputs or outputs 4 channels per module
  • Modules easily field installable
  • Euroblock connectors for audio, preset recall, DC remote level control and data in/out
  • 31 preset locations
  • Four dedicated remote controls for Level, Preset Recall and Programmable Functions
  • Third Party Control Friendly
  • Input and output metering viewable in dBu
  • Multi-level Security
  • Five year worry-free warranty
  • Safety/Compliance: (FCC, CE, RoHS)
  • Rear panel:
    • 10/100 Ethernet port
    • RS-232 Port
    • Euroblock inputs
    • Euroblock outputs
    • Remote level control
